PrometheanInteractive Flat PanelsSKU AP10‑B86

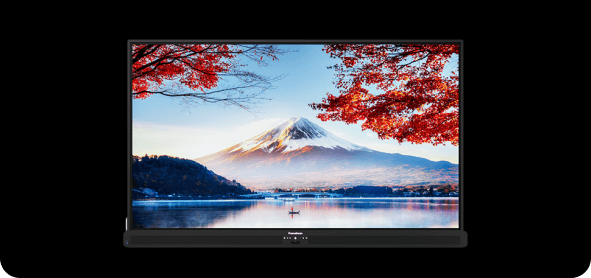

Promethean ActivPanel 10 86-Inch 4K Interactive Flat Panel
The Promethean ActivPanel 10 86-Inch 4K Interactive Flat Panel is a interactive flat panel available in the UAE from Procure.ae.
Experience cutting-edge classroom technology with the Promethean ActivPanel 10 86-Inch 4K Interactive Flat Panel (SKU: AP10‑B86), designed for modern learning environments. This interactive display brings vibrant 4K Ultra HD clarity to presentations, lessons, and collaborative sessions. With its expansive 86-inch touchscreen , teachers and students enjoy an immersive, ultra-responsive interface that supports multi-user interaction. The Promethean ActivPanel 10 integrates seamlessly with your favorite educational software , offering robust compatibility and advanced connectivity options..
It is supplied to corporate, education, and government organisations across the UAE, with procurement-ready quotations and regional delivery.
Screen Size
86 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
1034 nits
Touch Technology
Infrared
- 86-Inch 4K Display
- Multi-Touch Technology
- Anti-Glare Glass
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
86-Inch 4K Display
Ultra-large screen with stunning 4K resolution for vibrant visuals and maximum impact.
02
Multi-Touch Technology
Supports up to 20 simultaneous touch points for collaborative group work.
03
Anti-Glare Glass
Reduces reflections and eye strain for comfortable viewing in any lighting.
04
Integrated Speakers
Delivers powerful, clear audio for multimedia presentations and lessons.
05
Seamless Software Integration
Compatible with leading educational and productivity software platforms.
06
Robust Connectivity
Includes HDMI, USB-C, and wireless casting for versatile device connections.
07
Android OS Built-In
Enables quick access to apps, web browsing, and system controls.
08
Ergonomic Design
Slim profile and smooth edges for safe, modern classroom or office environments.
Specifications
41 specificationsGeneral
Key FeaturesPalm rejection, Pen and touch differentiation, Wake on LAN, Sensors: Proximity, Ambient light
What's in the BoxHDMI Cable × 1, USB Cable (A-B) × 1, Regional Power Cable × 1, USB-C Cable × 1, Remote Control × 1, Batteries for Remote Control × 2, Passive Pens × 2, Sealed Antistatic Bag × 1, Desiccant × 8, VESA Mount Screws (M8) × 4, Mini PC Bracket with Screws × 1, Quick Install Guide × 1, Promethean ActivSuite Activation Hangtag × 1
Display
Aspect Ratio16:9
BacklightDirect LED
Blue Light FilterYes
Brightness1034 nits
Color Depth10-bit (1.07 billion colours)
Contrast Ratio16,500:1
Panel TechnologyLCD
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size86 inch
Touch Accuracy<1 mm
Touch Points50-point multi-touch
Touch Resolution32768 x 32768
Touch Response Time≤ 3 ms
Touch TechnologyInfrared
Viewing Angle178° (H) / 178° (V)
Performance
Operating SystemNo built-in OS
Audio
Audio OutAudio out × 1
DisplayPortDisplayPort 1.4 × 1
Speaker Output2 × 25 W + 20 W subwoofer
Speaker TypeBuilt-in
Connectivity
EthernetRJ45 (Gigabit) × 2
HDMI InputsHDMI In (HDMI 2.1) × 2
HDMI OutputsHDMI Out (HDMI 2.0) × 1
OPS SlotOptional
Serial PortRS-232 × 1
Touch USB PortsTouch USB × 3
USB PortsUSB-A 3.2 Gen 1 × 4, USB-A 3.0 × 1, USB-A 2.0 × 1, USB-C 3.0 × 2
USB-C PortsUSB-C × 2 (Front × 1, Rear × 1)
Power
Power Consumption< 176 W
Standby Power≤ 0.5 W
Physical
Dimensions1955 x 1197 x 107 mm
Operating Humidity20% to 80% RH
Operating Temperature0°C to 40°C
Shipping Dimensions2105 x 185 x 1280 mm
Surface ProtectionAnti-glare, anti-fingerprint, anti-smudge
VESA Mount800 x 600 mm
Weight67.9 kg
Downloads
Manufacturer documents for the Promethean ActivPanel 10 86-Inch 4K Interactive Flat Panel — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What is the Promethean interactive flat panel used for?
Experience cutting-edge classroom technology with the Promethean ActivPanel 10 86-Inch 4K Interactive Flat Panel (SKU: AP10‑B86), designed for modern learning environments. This interactive display brings vibrant 4K Ultra HD clarity to presentations, lessons, and collaborative sessions. With its.
Does it include installation and warranty?
Procure.ae can arrange installation and provides manufacturer-backed warranty support. Contact us for the full warranty details applicable to this model.
Does this interactive panel support multi-touch and on-screen writing?
Yes — it uses Infrared touch technology, so multiple users can write and interact at the same time.
Can I run apps on it without connecting a PC?
Yes — it runs Android, so you can open apps, whiteboard, and browse without a separate computer.
