PrometheanInteractive Flat PanelsSKU AP10-A65

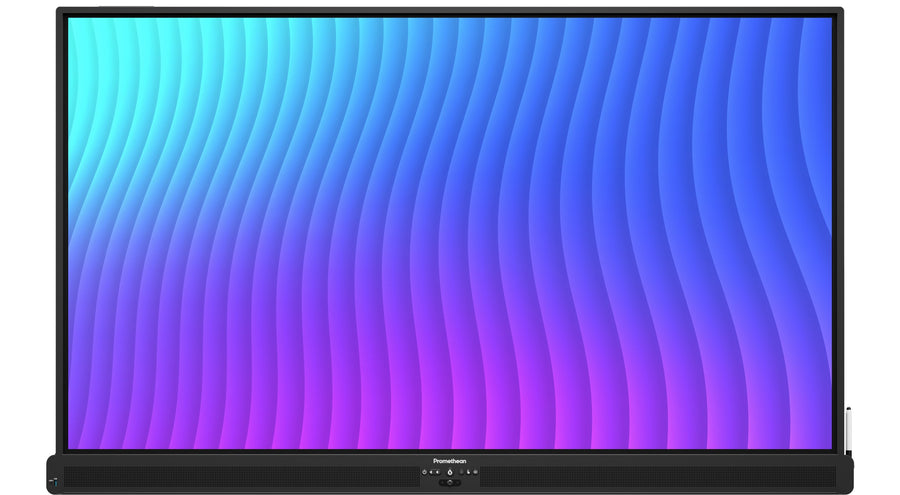

Promethean ActivPanel 10 65-inch 4K UHD Interactive Flat Panel – AP10-A65
The Promethean ActivPanel 10 65-inch (AP10-A65) is an interactive flat panel with a 65-inch 4K UHD display, 40 touch points and 520 nits typical brightness. It suits classrooms and meeting rooms that need a plug-and-play touch display with an OPS slot for a compatible computer module. Procure.ae supplies the Promethean ActivPanel 10 AP10-A65 in the UAE.
The ActivPanel 10 65-inch has a 4K UHD LCD with direct LED backlight, 1.07 billion colours, 5,000:1 dynamic contrast and typical brightness of 520 nits. Vellum writing technology supports 40 continuous touch points, with a touch response time of 3 ms and touch accuracy under 1 mm. Palm rejection, pen and touch differentiation and two passive battery-less pens are included. Dual front-facing 20 W speakers, an ambient light sensor and 9H glass with anti-glare, anti-fingerprint coating complete the panel.
The panel connects to a PC, the Promethean Chromebox, or an OPS-A or OPS-M module through its inputs, and ActivInspire Professional with one user licence is included. It is compatible with Windows 10 and 11, macOS Ventura 13 and Sonoma 14, Linux Ubuntu 22.04 to 24.04 LTS, ChromeOS and Android 14. The ActivPanel 10 series is also sold as AP10-A65, AP10-A75 and AP10-A86. Wall mounting uses a 600 x 400 mm VESA pattern, and the box includes a mini PC bracket and four M8 VESA screws.
Screen Size
65 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
520 nits
Touch Technology
Vellum writing technology
- Vellum Touch
- 4K UHD Display
- Pen and Palm Control
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Vellum Touch
40 continuous touch points, 3 ms touch response and touch accuracy under 1 mm.
02
4K UHD Display
3840 x 2160 resolution at 60 Hz with 520 nits typical brightness.
03
Pen and Palm Control
Pen and touch differentiation, palm erase and palm rejection, with two passive pens included.
04
OPS Slot
One slot for an OPS-A or OPS-M computer module.
05
Built-in Speakers
Dual front-facing speakers at 2 x 20 W.
06
Energy and Quiet Design
ENERGY STAR certified, with a fanless design and standby power at or below 0.5 W.
Specifications
34 specificationsGeneral
CompatibilityWindows 10 and 11, macOS Ventura 13 and Sonoma 14, Linux Ubuntu 22.04 to 24.04 LTS, ChromeOS, Android 14
Key FeaturesVellum writing, 40 touch points, Palm rejection, Pen and touch differentiation, OPS slot, Dual 20 W speakers, Fanless design, ENERGY STAR
ModelAP10-A65
TypeInteractive Flat Panel
Display
Aspect Ratio16:9
BacklightDirect LED
Brightness520 nits
Contrast Ratio5,000:1 dynamic, 1,200:1 static
Panel TechnologyLCD
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size65 inch
Touch Accuracy<1 mm
Touch Points40-point touch
Touch Resolution32768 x 32768 px
Touch Response Time3 ms
Touch TechnologyVellum writing technology
Viewing Angle178°
Performance
Operating SystemNone built in, secure by design
Audio
Speaker Output2 × 20 W
Connectivity
Input Voltage100–240 V AC
OPS Slot1 OPS slot
PortsHDMI In × 2 (2.1), DisplayPort × 1 (1.4), USB-C × 1 (100 W PD), USB-A × 4 (3.2 Gen 1), USB Touch × 3 (3.0), HDMI Out × 1 (2.0), RJ45 LAN × 2, RS-232 × 1
Power
Power Consumption122 W (maximum, ENERGY STAR reported)
Standby Power≤ 0.5 W
Physical
Dimensions1484 x 931 x 107 mm
Operating Humidity20% to 80% non-condensing
Operating Temperature0 to 40 °C
Shipping Dimensions1640 x 1030 x 185 mm
Shipping Weight46.6 kg
VESA Mount600 x 400 mm
Weight37.8 kg
Compliance
CertificationsCE, FCC, IC, UL, CUL, CB, RCM, ENERGY STAR, TAA
Downloads
Manufacturer documents for the Promethean ActivPanel 10 65-inch 4K UHD Interactive Flat Panel – AP10-A65 — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Does the ActivPanel 10 need a built-in computer?
No. The panel has no built-in operating system, so it needs an external source. It has one OPS slot for an OPS-A or OPS-M module and is compatible with the Promethean Chromebox. A PC can also connect through its HDMI, DisplayPort or USB-C inputs.
Is the AP10-A65 suitable for a classroom?
Yes. The 65-inch 4K display, 40 touch points, palm rejection and pen-and-touch differentiation suit teaching use. Two passive pens and a full-length pen tray are included, and ActivInspire Professional comes with one user licence.
What VESA mount does the 65-inch model use?
The 65-inch model uses a 600 x 400 mm VESA mount pattern, and the box includes four M8 VESA mount screws. The panel measures 1484 x 931 x 107 mm and weighs 37.8 kg without packaging, so confirm that the wall or stand can take that load.
What room size is the AP10-A65 for?
The manufacturer's specifications do not state a recommended room size. The 65-inch model is the smallest size in the ActivPanel 10 range, so it suits smaller classrooms and meeting rooms.
Which operating systems does it support?
The manufacturer lists compatibility with Windows 10 and 11, macOS Ventura 13 and Sonoma 14, Linux Ubuntu 22.04 to 24.04 LTS, ChromeOS and Android 14. Windows gestures and edge swipes are supported.
Can I buy the AP10-A65 in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
