PhilipsInteractive Flat PanelsSKU 86BDL3652T/00

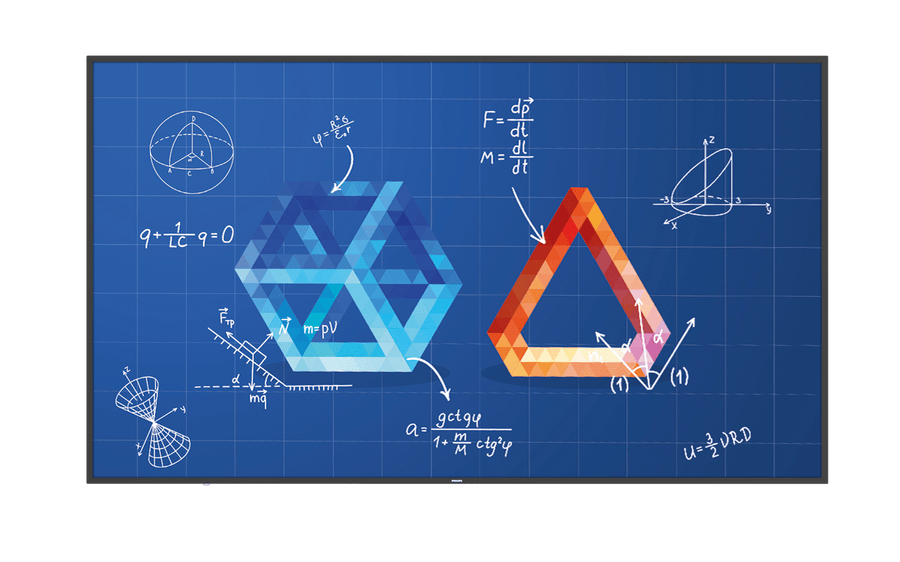

Philips T-Line 86-inch 4K UHD Interactive Flat Panel – 86BDL3652T/00
The Philips 86BDL3652T/00 is an 86-inch 4K UHD interactive flat panel for boardrooms, auditoriums and large collaboration spaces. It offers 20-point infrared touch on anti-glare toughened glass, a 3840 x 2160 IPS panel with 420 nits brightness and Android 9. Procure.ae supplies the Philips 86BDL3652T/00 across the UAE.
The 86BDL3652T/00 uses an 85.6-inch IPS panel at 3840 x 2160 resolution with a 60 Hz refresh rate, 178-degree viewing angles and 500,000:1 dynamic contrast. Its 0-gap infrared touch supports up to 20 simultaneous touch points, so a large group can work on one screen at the same time. The 8 ms typical response time and anti-glare toughened glass suit heavy daily use. Two 20 W RMS speakers are built in, and the panel supports portrait and landscape placement.
The panel runs Android 9 with 4 GB RAM and 32 GB eMMC storage, and has built-in Wi-Fi and an OPS slot for a compatible computing module. It accepts HDMI 2.0, DisplayPort 1.2, DVI-I and USB-C sources, and supports network control through RJ45, RS232C and IR. Ratings are 390 W typical and 650 W maximum. It weighs 74.3 kg and mounts on a 600 x 400 mm VESA pattern, so plan for a freight-capable delivery and a reinforced wall or stand.
Screen Size
86 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
420 nits
Touch Technology
Infrared (0-gap)
- 20-Point Infrared Touch
- 4K UHD IPS Panel
- Android 9 Platform
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
20-Point Infrared Touch
0-gap infrared touch supports up to 20 simultaneous touch points.
02
4K UHD IPS Panel
3840 x 2160 resolution with 420 nits brightness and 178-degree viewing angles.
03
Android 9 Platform
built-in operating system with 4 GB RAM and 32 GB eMMC storage.
04
Built-In Wi-Fi
wireless connectivity for network content management.
05
OPS Slot
accepts a compatible OPS computing module for PC-based content.
06
Powerful Speakers
two 20 W RMS built-in speakers with 3.5 mm audio input and output jacks.
07
Smart Insert Mounting
100 x 100 mm Smart Insert pattern plus 600 x 400 mm wall mount.
08
Multiple Inputs
HDMI 2.0 x 4, DisplayPort 1.2, DVI-I and USB-C inputs.
Specifications
32 specificationsGeneral
Key Features20-point infrared touch, 4K UHD IPS panel, Android 9, Built-in Wi-Fi, OPS slot, 2 x 20 W speakers, Smart Insert mounting, RJ45 and RS232C control, Landscape or portrait placement
Model86BDL3652T/00
TypeInteractive Flat Panel
What's in the BoxCleaning cloth, DVI-D cable, HDMI cable, AC power cord, RS232 daisy-chain cable, IR sensor cable, touch pens, remote control, quick start guide
Display
Aspect Ratio16:9
Bezel Size17.8 mm
Brightness420 nits
Contrast Ratio1,200:1
Panel TechnologyIPS
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size86 inch
Touch Points20-point multi-touch
Touch TechnologyInfrared (0-gap)
Viewing Angle178° horizontal and vertical
Performance
Operating SystemAndroid 9
RAM4 GB
Storage32 GB eMMC
Audio
Speaker Output2 x 20 W RMS
Connectivity
Input Voltage100–240 V AC, 50/60 Hz, 7.5 A
OPS SlotOPS slot supported
PortsHDMI 2.0 × 4, DisplayPort 1.2 × 1, DVI-I × 1, USB 3.0 × 2, USB 2.0 × 2, USB-C × 1, RJ45, RS232C, IR
Wi-FiBuilt-in Wi-Fi
Power
Power Consumption390 W (typical), 650 W (max)
Physical
MountingSmart Insert 100 x 100 mm pattern, plus 600 x 400 mm wall mount
Operating Humidity20% to 80% RH (operational)
Operating Temperature0 to 40 °C
VESA Mount600 x 400 mm
Weight74.3 kg
Compliance
CertificationsCE, FCC Class A, RoHS, CB, BSMI, EAC, ETL
Warranty5 years
Downloads
Manufacturer documents for the Philips T-Line 86-inch 4K UHD Interactive Flat Panel – 86BDL3652T/00 — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Is the Philips 86BDL3652T/00 a touch display?
Yes. The Philips 86BDL3652T/00 is an 86-inch interactive flat panel with 0-gap infrared touch. It supports up to 20 simultaneous touch points for multi-user collaboration, presentations and wayfinding. It suits boardrooms, auditoriums and public lobbies.
Does the 86BDL3652T/00 run Android and support Wi-Fi?
Yes. The panel runs Android 9 and includes built-in Wi-Fi. It has 4 GB RAM and 32 GB eMMC storage. Check that any third-party app you plan to use supports Android 9.
Can the 86BDL3652T/00 be wall mounted?
Yes. The panel supports a 600 x 400 mm VESA pattern with M8 screws and a Smart Insert 100 x 100 mm pattern. It weighs 74.3 kg, so the bracket and wall structure must be rated for that load. Procure.ae also provides installation across the UAE.
What room size suits an 86-inch 4K panel?
An 86-inch 4K UHD panel suits auditoriums, boardrooms and lobbies where viewers sit several metres from the screen. The manufacturer's specifications do not state a recommended room size, so confirm the viewing distance and the number of participants before choosing the size.
How is the 86BDL3652T/00 controlled and integrated?
The panel supports RJ45, RS232C and IR control, plus IR, RS232 and DisplayPort loop-through. These interfaces allow integration with room control systems and daisy-chaining of several displays from one control source.
