PhilipsMeeting Room SolutionsSKU 10BDL4551T/00

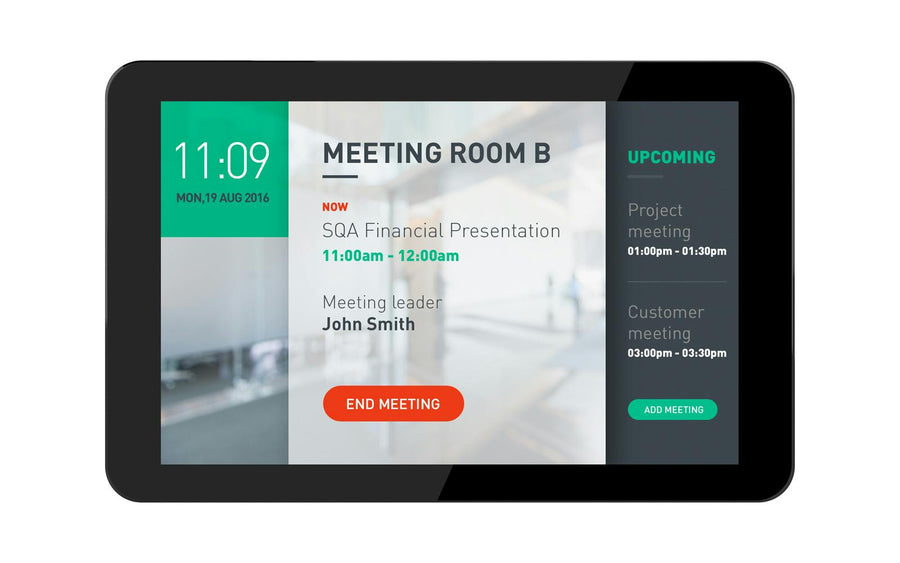

Philips T-Line 10-inch Room Booking Panel – 10BDL4551T/00
The Philips 10BDL4551T/00 is a 10.1-inch room booking panel for meeting room doors, wayfinding points and space-limited locations. It offers 5-point projected capacitive touch, a 1280 x 800 display with 300 nits brightness and Android 8.1. Procure.ae supplies the Philips 10BDL4551T/00 across the UAE.
The 10BDL4551T/00 is a compact touch panel with a 10.1-inch 1280 x 800 display, 16:10 aspect ratio and 160-degree viewing angles. Its projected capacitive layer supports up to 5 simultaneous touch points for booking and navigation. The display has 300 nits brightness, 800:1 typical contrast and 30 ms typical response time. Two 2 W speakers are built in, and the panel runs Android 8.1 with 2 GB RAM and 8 GB eMMC storage.
The panel can be powered over Ethernet at 24 W or by a DC 12 V adapter, so a single network cable can carry power and data. It supports Wi-Fi and RJ45 network control, and content can be managed remotely. It mounts on a tabletop stand or a 75 x 75 mm VESA wall mount. At 261 mm wide and 0.74 kg, it fits where space is at a premium, such as beside a door or on a shelf edge.
Screen Size
10.1 inch
Resolution
1280 x 800
Brightness
300 nits
Touch Technology
PCAP
- 5-Point Projected Capacitive Touch
- 10.1-Inch Display
- Power over Ethernet
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
5-Point Projected Capacitive Touch
supports up to 5 simultaneous touch points.
02
10.1-Inch Display
1280 x 800 resolution with 300 nits brightness and 16:10 aspect ratio.
03
Power over Ethernet
PoE at 24 W, or DC 12 V, 1.5 A through the included adapter.
04
Android 8.1 Platform
built-in operating system with 2 GB RAM and 8 GB eMMC storage.
05
Network Control
RJ45 and Wi-Fi connectivity for remote content management.
06
Built-In Speakers
two 2 W speakers with an external speaker connector.
07
Flexible Mounting
tabletop stand with silicone foot, plus 75 x 75 mm VESA wall mount.
08
Compact Design
261 mm wide, 167.2 mm high and 29 mm deep.
Specifications
29 specificationsGeneral
Key Features5-point projected capacitive touch, Android 8.1, Power over Ethernet, Wi-Fi and RJ45 control, 1280 x 800 display, Built-in 2 x 2 W speakers, Tabletop or wall mount
Model10BDL4551T/00
TypeRoom Booking Panel
What's in the BoxTabletop stand, silicone foot, quick start guide, USB cable, DC power adapter, HDMI cable, power plug
Display
Aspect Ratio16:10
Bezel Size19.8 mm (L/R), 13.6 mm (T/B)
Brightness300 nits
Contrast Ratio800:1
Resolution1280 x 800
Response Time30 ms
Screen Size10.1 inch
Touch Points5-point multi-touch
Touch TechnologyPCAP
Viewing Angle160° horizontal and vertical
Performance
Operating SystemAndroid 8.1
RAM2 GB
Storage8 GB eMMC
Audio
Speaker Output2 x 2 W
Connectivity
Input VoltageDC 12 V ±5%, 1.5 A, or PoE 24 W
PortsHDMI output × 1, USB × 1, RJ45 (PoE), micro SD
Wi-FiWi-Fi
Power
Power Consumption10.96 W (max)
Physical
Dimensions261 x 167.2 x 29 mm
Operating Humidity10% to 85% RH (non-condensing)
Operating Temperature0 to 40 °C
VESA Mount75 x 75 mm
Weight0.74 kg
Compliance
CertificationsCE, FCC Class A, RoHS, CB, UL
Warranty3 years
Downloads
Manufacturer documents for the Philips T-Line 10-inch Room Booking Panel – 10BDL4551T/00 — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Is the Philips 10BDL4551T/00 a touch panel?
Yes. The Philips 10BDL4551T/00 has a 10.1-inch projected capacitive touch display with up to 5 simultaneous touch points. It is designed for booking, navigation and information display in space-limited locations.
Can the 10BDL4551T/00 be powered over Ethernet?
Yes. The panel supports Power over Ethernet at 24 W, so one RJ45 cable can carry power and network data. It also accepts a DC 12 V, 1.5 A adapter, which is included in the box.
Can the 10BDL4551T/00 be wall mounted?
Yes. The panel has a 75 x 75 mm VESA mount and also ships with a tabletop stand and silicone foot. Check the wall fixing before installation. Procure.ae also provides delivery and installation across the UAE.
What spaces suit a 10-inch room booking panel?
This panel suits space-limited locations such as meeting room doors, office corridors, wayfinding points and shelf edges. The manufacturer's specifications do not state a recommended viewing distance, so confirm the mounting position and the content size before installation.
Does the 10BDL4551T/00 support remote content management?
Yes. The panel runs Android 8.1 and is network controllable through RJ45 and Wi-Fi. Content can be managed remotely over the network. Check that your management software supports Android 8.1 devices before deployment.
