PhilipsDigital SignageSKU 43BDL4550D/00

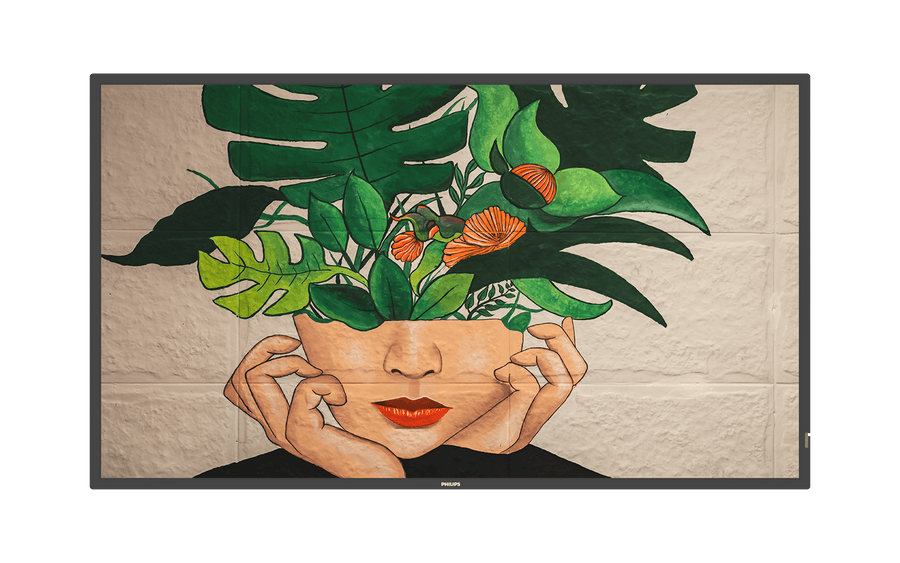

Philips Signage 4550 43-inch 4K UHD Digital Signage Display – 43BDL4550D/00
The Philips 43BDL4550D/00 is a 43-inch 4K UHD D-Line digital signage display with built-in dual-band Wi-Fi for app-based content. It has an IPS panel rated at 500 nits, 3 GB DDR memory and 32 GB storage, plus DisplayPort 1.2 and HDMI 2.0 inputs. Procure.ae supplies the Philips 43BDL4550D/00 across the UAE.
The 43BDL4550D/00 has a 3840 x 2160 IPS panel with a 16:9 aspect ratio, 500 nits of brightness and 1.07 billion display colours. It shows a 1,200:1 typical contrast ratio, a 500,000:1 dynamic contrast ratio and an 8 ms typical response time, with 178-degree horizontal and vertical viewing angles. The processor pairs two Cortex-A53 cores with two Cortex-A73 cores, backed by an ARM Mali G51 GPU. The operating system is Android 8.0, and picture enhancement includes 3D comb filtering and progressive scan.
The display is rated for 24/7 use in landscape or portrait placement and suits reception areas, showrooms and meeting spaces that need Wi-Fi-connected content. The Wi-Fi operates on 2.4 GHz and 5 GHz with 802.11 a, b, g and n and 802.1x support, and mPCIe 4G/LTE antenna connectors are provided. Video outputs are DisplayPort 1.2 and HDMI 2.0. Up to 10 x 15 units can be tiled, and the 200 x 200 mm M6 mount and 13.9 mm bezel suit wall installation.
Screen Size
42.5 inch (108 cm)
Resolution
3840 x 2160 (4K UHD)
Brightness
500 nits
Type
Digital Signage Display
- Dual-band Wi-Fi
- IPS 4K panel
- 500-nit brightness
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Dual-band Wi-Fi
Built-in Wi-Fi uses dual aerials for 2.4 GHz and 5 GHz operation.
02
IPS 4K panel
The 3840 x 2160 IPS panel runs at 60 Hz with 178-degree viewing angles.
03
500-nit brightness
The screen is rated at 500 nits with a 500,000:1 dynamic contrast ratio.
04
Android 8.0 platform
The display runs Android 8.0 and is designed for running Android apps.
05
Tiled video wall
Up to 10 x 15 units can be tiled into one video wall.
06
Network and serial control
RJ45 and RS232C ports support management, with IR in and out.
07
Built-in speakers
Two 10 W RMS speakers and a 3.5 mm audio output are included.
08
Screen-saving functions
Pixel Shift and Low Bright functions are included for continuous operation.
Specifications
34 specificationsGeneral
Key Features3840 x 2160 IPS panel, 500-nit brightness, dual-band Wi-Fi, Android 8.0, RJ45 and RS232C control, tiled matrix up to 10 x 15, Pixel Shift and Low Bright, 24/7 operation
Model43BDL4550D/00
TypeDigital Signage Display
What's in the BoxRS232 daisy-chain cable, Philips logo, AC switch cover, USB cover, screws, AC power cord, IR sensor cable (1.8 m), quick start guide, remote control and AAA batteries, RS232 cable
Display
Aspect Ratio16:9
Bezel Size13.9 mm (even bezel)
Brightness500 nits
Contrast Ratio1,200:1
OrientationLandscape, Portrait
Panel TechnologyIPS
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size42.5 inch (108 cm)
Viewing Angle178° (H) / 178° (V)
Performance
GraphicsARM Mali G51
Operating SystemAndroid 8.0
Processor2 x Cortex-A53 + 2 x Cortex-A73
RAM3 GB DDR
Storage32 GB eMMC
Audio
Audio2 x 10 W RMS built-in speakers
Dynamic Range500,000:1 dynamic contrast
Connectivity
ConnectivityWi-Fi dual aerial (2.4 GHz and 5 GHz), 802.11 a/b/g/n, 802.1x; mPCIe 4G/LTE antenna connectors
Input Voltage100–240 V AC, 50/60 Hz
PortsDisplayPort 1.2 × 1, DVI-I × 1, HDMI 2.0 × 2, USB 2.0 × 2, DisplayPort 1.2 out × 1, HDMI 2.0 out × 1, RJ45, RS232C, IR in/out, 3.5 mm audio in/out
Power
Power Consumption83 W (typical), 123 W (max)
Standby Power<0.5 W
Physical
Duty Cycle24/7
Operating Humidity20% to 80% RH (no condensation)
Operating Temperature0 to 40 °C (storage -20 to 60 °C)
VESA Mount200 x 200 mm
Weight10.71 kg
Compliance
CertificationsCE, CCC, RoHS, BSMI, CB, VCCI, EMF, EnergyStar 8.0, ETL, FCC Class A, PSB
Warranty3 years
Downloads
Manufacturer documents for the Philips Signage 4550 43-inch 4K UHD Digital Signage Display – 43BDL4550D/00 — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What panel and brightness does the 43BDL4550D/00 have?
It has a 16:9 IPS panel with 3840 x 2160 resolution and a brightness rating of 500 nits. The typical contrast ratio is 1,200:1, the dynamic contrast ratio is 500,000:1, and the viewing angle is 178 degrees horizontally and vertically.
Does the 43BDL4550D/00 have built-in Wi-Fi?
Yes, it has dual-aerial Wi-Fi covering 2.4 GHz and 5 GHz, with 802.11 a, b, g and n and 802.1x support. Its mPCIe slot also provides 4G/LTE antenna connectors for cellular connectivity.
Can the 43BDL4550D/00 run Android apps?
Yes, the display runs Android 8.0 and is designed for running Android apps. It has 3 GB DDR memory and 32 GB eMMC storage, and its processor combines two Cortex-A53 cores with two Cortex-A73 cores.
How many units can form a video wall?
Up to 10 x 15 units can be tiled into one video wall. Network control is through RS232C, and the 200 x 200 mm M6 wall mount with a 13.9 mm bezel is used for installation.
Which ports does the 43BDL4550D/00 provide?
Inputs are DisplayPort 1.2, DVI-I, two HDMI 2.0 ports and two USB 2.0 ports. Outputs are DisplayPort 1.2 and HDMI 2.0. The display also has 3.5 mm audio input and output, RJ45, RS232C, and IR in and out.
