PhilipsDigital SignageSKU 43BDL3650QE/00

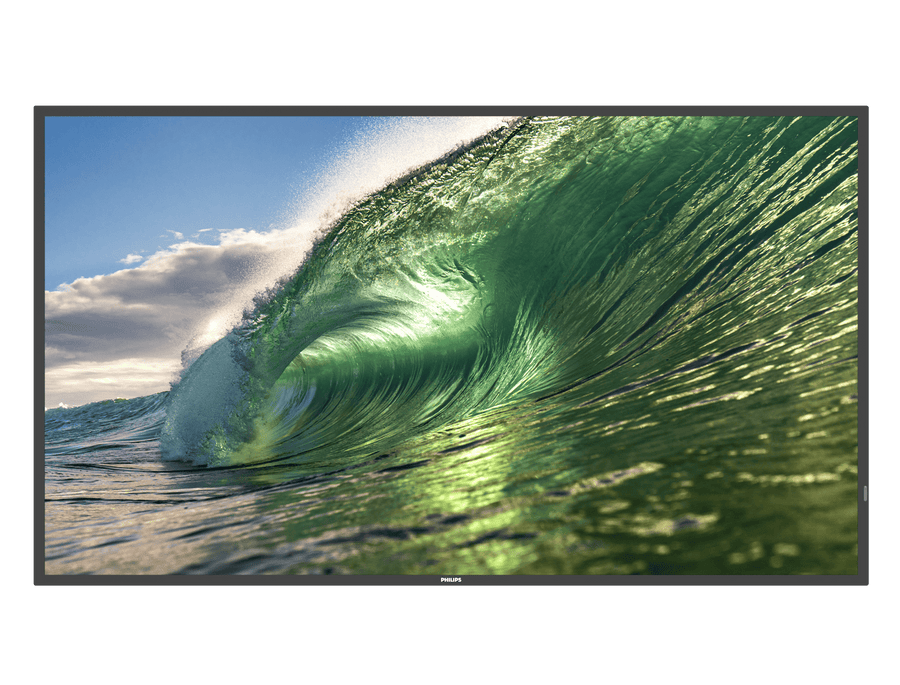

Philips Signage 3000 43-inch 4K UHD Digital Signage Display – 43BDL3650QE/00
The Philips 43BDL3650QE/00 is a 43-inch 4K UHD digital signage display for reception areas, corridors and corporate information screens. It has a 3840 x 2160 VA panel rated at 350 nits, runs Android 10, and supports RJ45 and RS232C network control. Procure.ae supplies the Philips 43BDL3650QE/00 across the UAE.
The 43BDL3650QE/00 offers a 3840 x 2160 panel with a 178-degree horizontal and vertical viewing angle, a 350-nit brightness rating and a 4,000:1 typical contrast ratio. The display has an 8 ms typical response time and runs at 60 Hz. Its Smart Power feature keeps typical consumption at 53 W, with 102 W maximum and standby below 0.5 W. Built-in 2 x 10 W RMS speakers, a 3.5 mm audio input and output, and micro SD support cover basic sound and media playback.
The 18/7 rating suits displays that run during business hours rather than around the clock, such as corridors, reception areas and meeting spaces. The unit runs Android 10 with 16 GB storage and 3 GB DDR memory, and it can be managed over RJ45 or RS232C. An optional CRD22 Wi-Fi dongle adds wireless connectivity. Units can be tiled in a matrix of up to 15 x 15, and the 200 x 200 mm M6 wall mount suits wall installation.
Resolution
3840 x 2160 (4K UHD)
Brightness
350 nits
Type
Digital Signage Display
Weight
11.29 kg
- 4K UHD panel
- Network and serial control
- Tiled video wall support
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
4K UHD panel
The 3840 x 2160 VA panel runs at 60 Hz with 1.06 billion display colours.
02
Network and serial control
RJ45 and RS232C ports let the display be managed over a network or serial link.
03
Tiled video wall support
Up to 15 x 15 units can be tiled into one video wall.
04
Smart Power energy saving
Typical consumption is 53 W, with standby below 0.5 W.
05
Built-in speakers
Two 10 W RMS speakers provide audio without an external system.
06
Lockable controls
Keyboard and remote control signals can be locked or hidden.
07
Wall mount ready
The 200 x 200 mm M6 mount supports wall installation with a 13.9 mm even bezel.
08
Android 10 platform
The built-in Android 10 system runs with 16 GB storage and 3 GB DDR memory.
Specifications
30 specificationsGeneral
Key Features3840 x 2160 panel, 350-nit brightness, Smart Power energy saving, Android 10, RJ45 and RS232C control, tiled matrix up to 15 x 15, 18/7 operation, lockable keyboard and remote
Model43BDL3650QE/00
TypeDigital Signage Display
What's in the BoxIR sensor cable, RS232 daisy-chain cable, RS232 cable, AC power cord, cable clips (x2), quick start guide, USB cover, AC switch cover
Display
Aspect Ratio16:9
Bezel Size13.9 mm (even bezel)
Brightness350 nits
Contrast Ratio4,000:1
OrientationLandscape, Portrait
Panel TechnologyVA
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Viewing Angle178° (H) / 178° (V)
Performance
Operating SystemAndroid 10
RAM3 GB DDR
Storage16 GB
Audio
Audio2 x 10 W RMS built-in speakers
Connectivity
ConnectivityRJ45 network control; optional Wi-Fi via CRD22 dongle
Input Voltage100–240 V AC, 50/60 Hz
PortsHDMI 2.0 × 2, DVI-I × 1, USB 3.0 × 2, USB 2.0 × 2, micro SD, RJ45, RS232C, IR in/out, 3.5 mm audio in/out
Power
Power Consumption53 W (typical), 102 W (max)
Standby Power<0.5 W
Physical
Duty Cycle18/7
Operating Humidity20% to 80% RH (no condensation)
Operating Temperature0 to 40 °C
VESA Mount200 x 200 mm
Weight11.29 kg
Compliance
CertificationsCE, CB, FCC Class A, VCCI, RoHS, ETL, J-MOSS, BSMI
Warranty3 years
Downloads
Manufacturer documents for the Philips Signage 3000 43-inch 4K UHD Digital Signage Display – 43BDL3650QE/00 — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What panel and brightness does the 43BDL3650QE/00 have?
It has a VA panel with 3840 x 2160 resolution, a 16:9 aspect ratio and 350 nits of brightness. The typical contrast ratio is 4,000:1, and the dynamic contrast ratio is 500,000:1.
Can the 43BDL3650QE/00 be used in a video wall?
Yes, the display supports tiled matrix installations of up to 15 x 15 units, which lets several screens act as one video wall. Each unit has RJ45 and RS232C ports, so the matrix can be managed over a network or serial connection.
How is the 43BDL3650QE/00 mounted?
It has a 200 x 200 mm wall mount pattern with M6 fixings, so brackets must match that spacing. The bezel is 13.9 mm wide, and the manufacturer lists landscape and portrait placement.
Which operating system and connections does the 43BDL3650QE/00 use?
It runs Android 10 and includes two HDMI 2.0 inputs, one DVI-I input, two USB 3.0 ports, two USB 2.0 ports, a micro SD slot and 3.5 mm audio input and output. Network control is through RJ45, and optional Wi-Fi uses the CRD22 dongle.
Can the 43BDL3650QE/00 be controlled remotely?
Yes, it supports RS232C and RJ45 control, plus IR in and out through 3.5 mm jacks. The keyboard and remote control signals can be locked or hidden to limit changes to settings.
