PhilipsDigital SignageSKU 55BDL3650Q/00

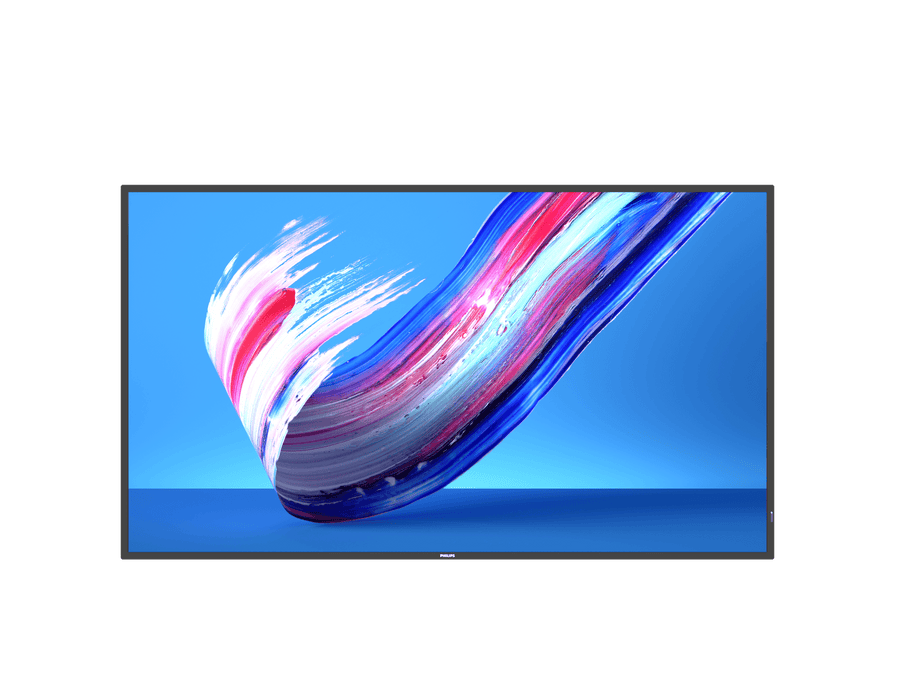

Philips Q-Line 55-inch 4K UHD Digital Signage Display – 55BDL3650Q/00
The Philips 55BDL3650Q/00 is a 55-inch 4K UHD digital signage display for retail, corporate and public-facing sites. It runs Android 10 with 3 GB RAM and 16 GB storage on a 3840 x 2160 ADS panel rated at 400 nits. Procure.ae supplies the Philips 55BDL3650Q/00 across the UAE.
The 55BDL3650Q/00 has a 3840 x 2160 ADS panel with 178-degree viewing angles, 400 nits brightness, a 1,300:1 typical contrast ratio and a 9 ms typical response time. It runs 4K at 60 Hz and displays 1.07 billion colours. The Android 10 platform uses a quad-core Cortex-A55 processor with 3 GB RAM and 16 GB storage, and the display includes two 10 W RMS speakers. Inputs include two HDMI 2.0 ports, DVI-I, two USB 2.0 ports, one USB 3.0 port and a micro SD slot.
The 55BDL3650Q/00 suits signage networks in retail, corporate reception and public areas where content is managed remotely. The manufacturer describes it as Wave-ready for remote management. It mounts in landscape or portrait on a 400 x 400 mm M6 wall pattern and tiles into matrices of up to 3 x 3 displays. RJ45 and RS232C control, with IR input and output, supports central management across a network.
Screen Size
55 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
400 nits
Type
Digital Signage Display
- Android 10 platform
- Ultra HD 4K panel
- Picture enhancement
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Android 10 platform
Quad-core Cortex-A55 processor with 3 GB RAM and 16 GB storage.
02
Ultra HD 4K panel
A 3840 x 2160 ADS panel with 400 nits brightness and 178-degree viewing angles.
03
Picture enhancement
Motion pull-down, dynamic contrast enhancement and progressive scan.
04
Network management
RJ45 and RS232C in and out, plus IR control and micro SD playback.
05
Smart Power
Energy-saving operation with 111 W typical consumption and below 0.5 W standby.
06
Tiled display support
Tiled matrix of up to 3 x 3 displays for small video walls.
07
Built-in speakers
Two 10 W RMS speakers with 3.5 mm audio input and output.
08
Multiple video inputs
Two HDMI 2.0, DVI-I, two USB 2.0 and one USB 3.0 port.
Specifications
32 specificationsGeneral
Key FeaturesAndroid 10, quad-core Cortex-A55, tiled matrix up to 3 x 3, Smart Power, RS232C and RJ45 network control, picture enhancement, micro SD slot
Model55BDL3650Q/00
TypeDigital Signage Display
What's in the BoxIR sensor cable (1.8 m), RS232 daisy-chain cable, RS232 cable, remote control with AAA batteries, AC power cord, AC switch cover, quick start guide, USB cover and screws, wire clampers
Display
Aspect Ratio16:9
Bezel Size13.9 mm (even bezel)
Brightness400 nits
Color Depth1.07 billion colours
Contrast Ratio1,300:1
OrientationLandscape and portrait
Panel TechnologyADS
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Response Time9 ms
Screen Size55 inch
Viewing Angle178° horizontal and vertical
Performance
GraphicsG52 MC1
Operating SystemAndroid 10
ProcessorQuad-core Cortex-A55
RAM3 GB
Storage16 GB
Audio
Speaker Output2 × 10 W RMS built-in speakers
Connectivity
Input Voltage100–240 V AC
PortsHDMI 2.0 × 2, DVI-I × 1, USB 2.0 × 2, USB 3.0 × 1, micro SD, RJ45, RS232C (in/out), IR (in/out), 3.5 mm audio in/out
Power
Power Consumption111 W (typical)
Standby Power<0.5 W
Physical
Operating Humidity20% to 80% RH
Operating Temperature0 to 40 °C
VESA Mount400 x 400 mm
Weight16.6 kg
Compliance
CertificationsCE, CB, FCC Class A, VCCI, RoHS, UL
Warranty3 years
Downloads
Manufacturer documents for the Philips Q-Line 55-inch 4K UHD Digital Signage Display – 55BDL3650Q/00 — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Which operating system does the 55BDL3650Q/00 use?
The manufacturer lists Android 10 as the operating system. It uses a quad-core Cortex-A55 processor with 3 GB RAM and 16 GB storage, so content can run directly on the display.
Can the 55BDL3650Q/00 play content from a USB drive or memory card?
Yes. The manufacturer lists one USB 3.0 port, two USB 2.0 ports and a micro SD slot, so the manufacturer's listed connections cover USB media and micro SD storage alongside network control.
Can the 55BDL3650Q/00 be mounted in portrait orientation?
Yes. The manufacturer lists landscape and portrait placement, each rated 18/7 operation. Mount it on the 400 x 400 mm M6 wall pattern and confirm the bracket is rated for the 16.6 kg weight.
Can it be used in a video wall?
Yes. The manufacturer rates the tiled matrix at up to 3 x 3 displays. RJ45 and RS232C network control let each screen be managed centrally. The 3 x 3 tiling limit suits small video walls rather than large installations.
Is the 55BDL3650Q/00 suitable for remote management?
Yes. The manufacturer describes the display as Wave-ready for remote management, and it provides RJ45 and RS232C network control. Confirm the management software with Procure.ae before deployment. The RS232C and RJ45 ports are the listed control points for this model.
