PhilipsDigital SignageSKU 55BDL3550Q/00

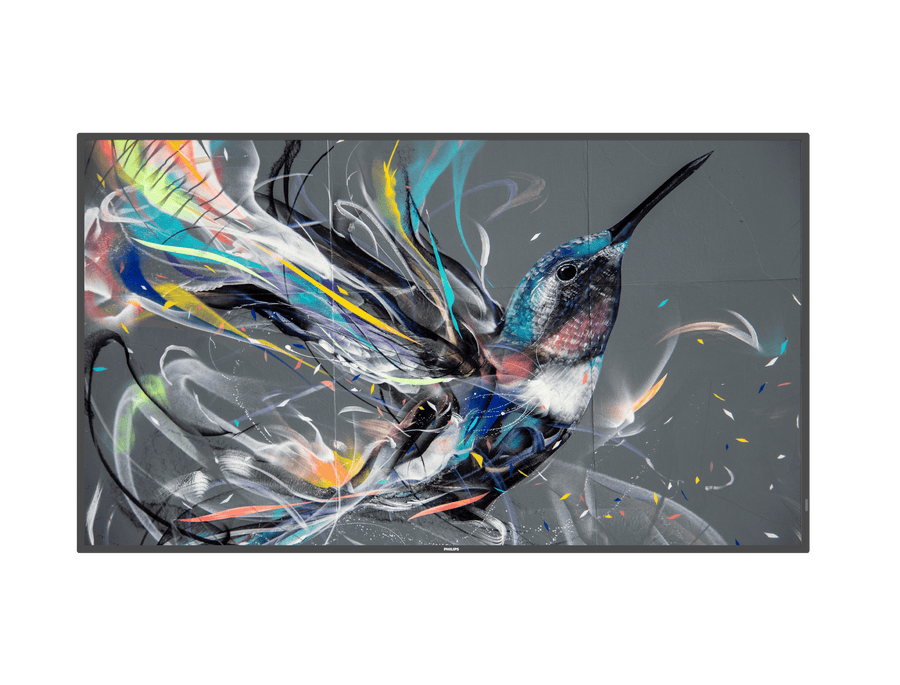

Philips Q-Line 55-inch 4K UHD Digital Signage Display – 55BDL3550Q/00
The Philips 55BDL3550Q/00 is a 55-inch 4K UHD digital signage display for retail, hospitality and corporate sites. It runs Android 8.0 with 2 GB RAM, a 3840 x 2160 IPS panel and 400 nits brightness. Procure.ae supplies the Philips 55BDL3550Q/00 across the UAE.
The 55BDL3550Q/00 has a 3840 x 2160 IPS panel with 178-degree viewing angles, 400 nits brightness, a 1,300:1 typical contrast ratio and a 9 ms typical response time. It runs 4K at 60 Hz with picture enhancement features such as dynamic contrast enhancement and progressive scan. The built-in Android 8.0 platform has 2 GB RAM and 8 GB storage, and it includes two 10 W RMS speakers. Inputs include HDMI 2.0, DVI-D, VGA and USB 2.0 ports.
The 55BDL3550Q/00 fits signage networks in retail, hospitality and corporate reception areas. It can be used in landscape or portrait on a 400 x 400 mm wall mount with M6 fixings, and it can be tiled into video walls of up to 15 x 15 displays. RJ45 and RS232C network control, with IR input and output, allows central management. Lockable remote and keyboard control keep settings secure on public screens.
Screen Size
55 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
400 nits
Type
Digital Signage Display
- Android 8.0 platform
- Ultra HD 4K panel
- Video wall tiling
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Android 8.0 platform
Built-in Android 8.0 with 2 GB RAM and 8 GB storage.
02
Ultra HD 4K panel
A 3840 x 2160 IPS panel with 400 nits brightness and 178-degree viewing angles.
03
Video wall tiling
Tiled matrix of up to 15 x 15 displays for large installations.
04
Network management
RJ45 and RS232C in and out, plus IR control.
05
Picture enhancement
Dynamic contrast enhancement and progressive scan processing.
06
Smart Power
Energy-saving operation with 125 W typical consumption and below 0.5 W standby.
07
Built-in speakers
Two 10 W RMS speakers with 3.5 mm audio input and output.
08
Multiple video inputs
HDMI 2.0 × 2, DVI-D, VGA and USB 2.0 × 2 for multiple sources.
Specifications
32 specificationsGeneral
Key FeaturesAndroid 8.0, 2 GB RAM, tiled matrix up to 15 x 15, Smart Power, RS232C and RJ45 network control, picture enhancement, lockable remote and keyboard control
Model55BDL3550Q/00
TypeDigital Signage Display
What's in the BoxIR sensor cable (1.8 m), RS232 daisy-chain cable, RS232 cable, remote control with batteries, AC power cord, quick start guide, USB cover and screw
Display
Aspect Ratio16:9
Bezel Size13.9 mm (even bezel)
Brightness400 nits
Color Depth1.07 billion colours
Contrast Ratio1,300:1
OrientationLandscape and portrait
Panel TechnologyIPS
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Response Time9 ms
Screen Size55 inch
Viewing Angle178° horizontal and vertical
Performance
GraphicsARM Mali G51
Operating SystemAndroid 8.0
ProcessorDual-core Cortex-A53 1.1 GHz; dual-core Cortex-A73 1.15 GHz
RAM2 GB
Storage8 GB
Audio
Speaker Output2 × 10 W RMS built-in speakers
Connectivity
Input Voltage100–240 V AC
PortsHDMI 2.0 × 2, DVI-D × 1, VGA × 1, USB 2.0 × 2, RJ45, RS232C (in/out), IR (in/out), 3.5 mm audio in/out
Power
Power Consumption125 W (typical)
Standby Power<0.5 W
Physical
Operating Humidity20% to 80% RH
Operating Temperature0 to 40 °C
VESA Mount400 x 400 mm
Weight16.6 kg
Compliance
CertificationsCE, CB, BSMI, CU, EPA, ETL, FCC Class A, PSB, VCCI, J-Moss
Warranty3 years
Downloads
Manufacturer documents for the Philips Q-Line 55-inch 4K UHD Digital Signage Display – 55BDL3550Q/00 — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Does the Philips 55BDL3550Q/00 run its own operating system?
Yes. The manufacturer lists Android 8.0 as the operating system, with a dual-core Cortex-A53 and Cortex-A73 processor, 2 GB RAM and 8 GB storage. The Android platform is listed with 2 GB RAM and 8 GB storage.
Does the 55BDL3550Q/00 support VGA input for older equipment?
Yes. It has one VGA (analogue D-Sub) input alongside two HDMI 2.0 ports and one DVI-D port, so it can connect to analogue sources as well as HDMI sources. The VGA port is an analogue D-Sub connection, while HDMI 2.0 is the digital input for most modern sources.
Can the 55BDL3550Q/00 be mounted in portrait orientation?
Yes. The manufacturer lists landscape and portrait placement, each rated 18/7 operation. Use the 400 x 400 mm M6 wall mount pattern and confirm the bracket is rated for the 16.6 kg weight.
Can it be used in a video wall?
Yes. The manufacturer rates the tiled matrix at up to 15 x 15 displays. RS232C and RJ45 network control allow each screen to be managed from a central system. Each display in the wall is set up individually, and the lockable remote and keyboard controls help keep settings secure.
Does the display integrate with a central content management system?
The manufacturer lists RS232C and RJ45 network control, plus IR input and output. Connection to a specific content management platform depends on the software used, so confirm the integration with Procure.ae before ordering.
