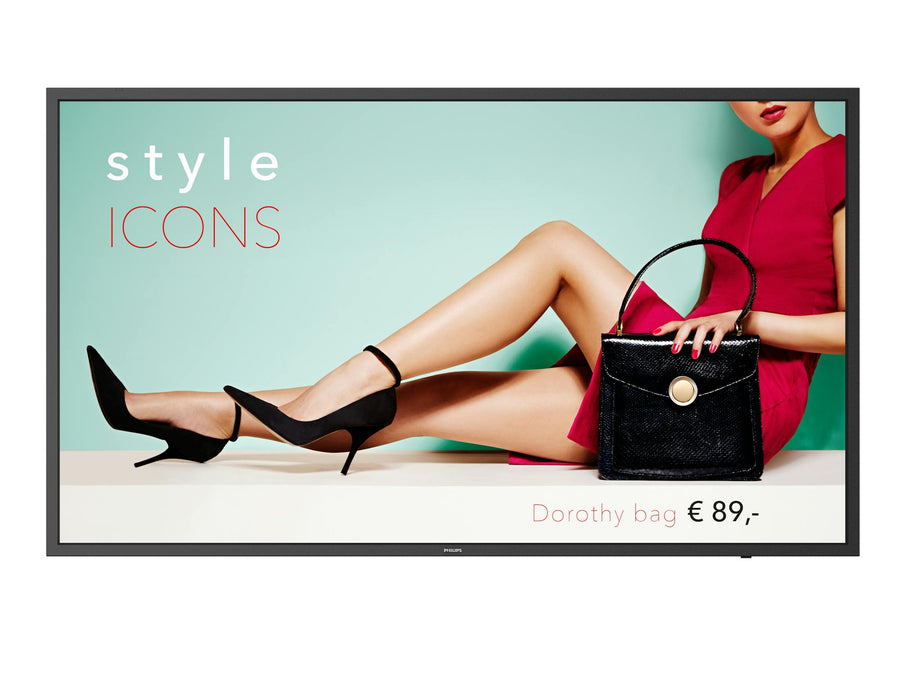

Philips H-Line 4000 High Brightness 55-inch Signage Display – 55BDL4002H/00
The Philips 55BDL4002H/00 is a 54.6-inch high-brightness digital signage display for windows and brightly lit spaces such as airports and shopping centres. It has 2500 nits brightness, a 1920 x 1080 panel and 4000:1 typical contrast. Procure.ae supplies it across the UAE.
The 55BDL4002H/00 is built for high-ambient-light areas. Its 2500 nits brightness and 4000:1 typical contrast support visibility in bright locations, with 178-degree horizontal and vertical viewing angles. The 1920 x 1080 panel runs at 60 Hz with an 8 ms typical response time and displays 1.07 billion colours. Pixel shift and low brightness screen-saving functions are included, and Smart Power helps reduce energy use.
The display supports landscape or portrait placement, 24/7, and can be installed with the Smart Insert mount (100 x 100 mm pitch) or a 400 x 400 mm M6 wall mount. It offers two HDMI 2.0 inputs, DisplayPort 1.2, DVI-I, an OPS slot and RS232, RJ45 and IR control. Compared with the 55BDL6002H/00, this model lists HDMI 2.0 inputs rather than HDMI 1.4 and has no VGA or component BNC inputs.
Screen Size
54.6 inch
Resolution
1920 x 1080 (Full HD)
Brightness
2500 nits
Type
Digital Signage Display
- High brightness
- Contrast and viewing angle
- Full HD panel
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
High brightness
2500 nits for visibility in windows and bright locations.
02
Contrast and viewing angle
4000:1 typical contrast with 178-degree horizontal and vertical viewing angles.
03
Full HD panel
1920 x 1080 resolution at 60 Hz with 8 ms typical response time.
04
Screen-saving modes
Pixel shift and low brightness screen-saving functions are included.
05
Built-in speakers
Two 10 W RMS speakers are fitted.
06
Smart Insert mounting
100 x 100 mm Smart Insert pitch plus a 400 x 400 mm M6 wall mount.
07
Multiple inputs
Two HDMI 2.0 inputs, DisplayPort 1.2, DVI-I and an OPS slot.
08
Network control
RS232, RJ45 and IR control, with lockable remote and keyboard.
Specifications
28 specificationsGeneral
Key Features2500 nits brightness, Pixel shift and low brightness, Smart Power, Smart Insert mounting, Lockable remote and keyboard, RS232 and RJ45 control, Built-in 2 x 10 W speakers
Model55BDL4002H/00
TypeDigital Signage Display
What's in the BoxRemote control with AAA batteries, AC power cord, IR sensor cable, edge alignment kit, open-frame kit, quick start guide
Display
Aspect Ratio16:9
Bezel Size17.5 mm (even)
Brightness2500 nits
Color Depth1.07 billion colours
Contrast Ratio4,000:1 (typical)
Refresh Rate60 Hz
Resolution1920 x 1080 (Full HD)
Response Time8 ms
Screen Size54.6 inch
Viewing Angle178 degrees (horizontal and vertical)
Performance
Storage Conditions-20 to 60 °C; 5% to 95% RH
Audio
Speaker Output2 x 10 W RMS
Connectivity
HDMI Inputs2 (HDMI 2.0)
Input Voltage100–240 V AC, 50/60 Hz
OPS SlotYes
PortsInputs: DisplayPort 1.2 × 1, DVI-I × 1, HDMI 2.0 × 2; outputs: DisplayPort 1.2 × 1, HDMI 2.0 × 1; USB 2.0 × 2, RJ45 × 1, RS232C × 1
Power
Power Consumption245 W (typical); 430 W (max)
Standby PowerLess than 0.5 W
Physical
Operating Humidity20% to 80% RH
Operating Temperature0 to 40 °C
VESA Mount400 x 400 mm (M6); Smart Insert 100 x 100 mm
Weight30.37 kg
Compliance
CertificationsCE, FCC Class A, UL/cUL, CB
Warranty3 years
Downloads
Manufacturer documents for the Philips H-Line 4000 High Brightness 55-inch Signage Display – 55BDL4002H/00 — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Is the 55BDL4002H/00 suitable for windows and sunlit areas?
Yes. It is designed for windows and lighter locations, with 2500 nits brightness. The manufacturer warns against direct sunlight without additional protective measures, so these should be planned before installation.
Does the 55BDL4002H/00 support RS232 and network control?
Yes. It has RS232 (in and out), RJ45 and IR (in and out) control, and the remote control and keyboard can be locked. Network control is available over RS232 and RJ45, which allows central management of several displays.
Can the 55BDL4002H/00 be wall mounted?
Yes. It has a 400 x 400 mm M6 wall mount pattern and a Smart Insert mount with 100 x 100 mm pitch, plus carrying handles for installation. The product weighs 30.37 kg, so use a bracket rated for that load.
What power does the 55BDL4002H/00 need?
It runs on 100 to 240 VAC, 50 to 60 Hz mains power. Typical consumption is 245 W and maximum consumption is 430 W, with standby below 0.5 W, as stated in the manufacturer's specification.
Can I buy the 55BDL4002H/00 in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
