PhilipsInteractive Flat PanelsSKU 86BDL4152E/00

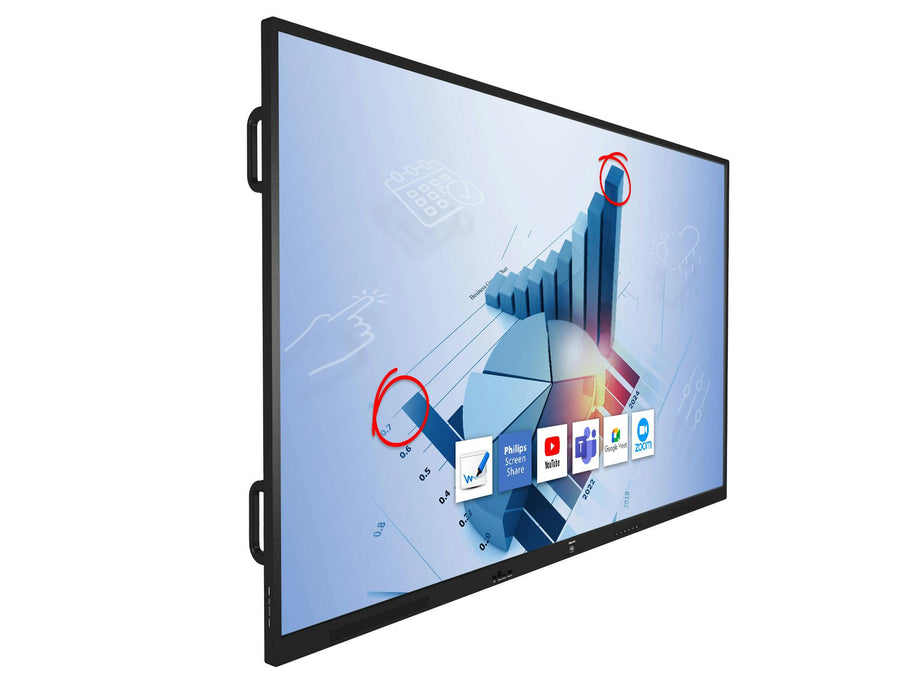

Philips E-Line 4000 86-inch Interactive Flat Panel – 86BDL4152E/00
The Philips 86BDL4152E/00 is an 86-inch 4K UHD interactive flat panel with 40-point infrared touch, Android 14 and 8 GB memory. It suits large classrooms, boardrooms and collaboration rooms that need a wide touch display with Bluetooth and NFC. Procure.ae supplies the Philips 86BDL4152E/00 as an authorised reseller across the UAE.
The 86BDL4152E/00 has an 85.6-inch diagonal ADS panel at 3840 x 2160 with 40 simultaneous touchpoints on 0-gap infrared touch. Brightness is rated at 400 nits, with a 1,200:1 typical contrast ratio and a 500,000:1 dynamic contrast ratio. The Android 14 platform runs on a 4 x A73 and 4 x A53 CPU with 8 GB memory and 32 GB eMMC storage. Wi-Fi supports 2T/2R 2.4, 5 and 6 GHz bands, and Bluetooth 5.2 BLE and NFC are built in. Two 20 W speakers provide audio, and typical power consumption is 190 W.
The E-Line 4000 suits large classrooms, boardrooms and collaboration rooms that need compatibility with educational software and programs. It has an OPS slot, two Gb LAN ports for network control, an HDMI 2.0 output and an 800 x 400 mm wall mount pattern with M8 fixings. Compared with the 86-inch 86BDL4052E/02 in the same series, this model offers 40 touchpoints instead of 20, Android 14 instead of Android 11, and adds Bluetooth and NFC. EPEAT Silver is listed for this model.
Screen Size
86 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
400 nits
Touch Technology
Infrared
- 40-Point Touch
- 4K UHD Display
- Android 14 Platform
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
40-Point Touch
0-gap infrared touch with 40 simultaneous touchpoints.
02
4K UHD Display
85.6-inch diagonal ADS panel at 3840 x 2160 and 60 Hz.
03
Android 14 Platform
4 x A73 and 4 x A53 CPU with 8 GB memory and 32 GB eMMC storage.
04
Bluetooth and NFC
Bluetooth 5.2 BLE and NFC built into the display.
05
Wi-Fi Connectivity
2T/2R Wi-Fi across the 2.4, 5 and 6 GHz bands.
06
Protection Glass
Tempered safety glass rated 7 MOHS with anti-glare and blue light filter.
07
Built-in Audio
2 x 20 W speakers with 3.5 mm audio input and output.
08
Network Control
Dual Gb LAN ports plus RS232C and IR control with lockable keyboard.
Specifications
33 specificationsGeneral
Key Features40-point infrared touch, 4K UHD ADS panel, Android 14, Bluetooth 5.2 BLE and NFC, Wi-Fi 2T/2R 2.4/5/6 GHz, 2 x 20 W speakers, dual Gb LAN, tempered glass rated 7 MOHS
Model86BDL4152E/00
TypeInteractive Flat Panel
What's in the BoxCleaning cloth, remote control with AAA batteries, USB A to B cable (3 m), AC power cord, 2 touch pens, quick start guide, AC switch cover and screw
Display
Aspect Ratio16:9
Brightness400 nits
Contrast Ratio1,200:1
Panel TechnologyADS
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size86 inch
Touch Points40-point multi-touch
Touch TechnologyInfrared
Viewing Angle178 degrees horizontal and vertical
Performance
Operating SystemAndroid 14
ProcessorOcta-core (4 x A73 + 4 x A53)
RAM8 GB
Storage32 GB
Audio
Speaker Output2 x 20 W
Connectivity
BluetoothBluetooth 5.2 BLE
Input Voltage100–240 V AC, 50/60 Hz
OPS SlotYes
PortsHDMI 2.0 In × 3, USB 3.0 × 2, USB 2.0 × 1, USB-C In × 2 (one up to 65 W), USB-B × 2, Micro USB (OTG), HDMI 2.0 Out × 1, OPS slot, Gb LAN × 2, RS232C, IR, Audio In and Out (3.5 mm)
Wi-Fi2T/2R 2.4/5/6 GHz
Power
Power Consumption190 W (typical)
Standby Power< 0.5 W
Physical
Operating Humidity20% to 80% RH (no condensation)
Operating Temperature0 to 40 °C
VESA Mount800 x 400 mm
Weight57 kg
Compliance
CertificationsCE; FCC Class A; RoHS; CB; EAC; EMF; ETL; EPEAT Silver; Energy Label Class G
Warranty5 years
Downloads
Manufacturer documents for the Philips E-Line 4000 86-inch Interactive Flat Panel – 86BDL4152E/00 — datasheets, manuals, drawings and certificates.
- Brochure – 86BDL4152E/00
- User manual – Collaboration 4000 Series (E-Line)
- User manual – Collaboration 4000 Series (E-Line)
- Drawing – 86BDL4152E/00
- Energy label – Collaboration 4000 Series (E-Line)
- Energy label – Collaboration 4000 Series (E-Line)
- Energy label – Collaboration 4000 Series (E-Line)
- Energy label – 86BDL4152E/00
Questions
Can’t find your answer? Ask on WhatsApp
What is the Philips 86BDL4152E/00 used for?
It is an 86-inch interactive flat panel for large classrooms, boardrooms and collaboration rooms. Its 40-point infrared touch and Android 14 platform support presentations, group work and shared content from several sources.
How many touch points does the 86BDL4152E/00 support?
It supports up to 40 simultaneous touchpoints using 0-gap infrared touch technology. That is double the 20 touchpoints listed for the 86-inch 86BDL4052E/02 in the same E-Line 4000 series, so more people can interact at once.
Does the 86BDL4152E/00 have built-in Bluetooth and NFC?
Yes. It has Bluetooth 5.2 BLE and NFC built in, and its Wi-Fi supports 2T/2R operation on the 2.4, 5 and 6 GHz bands. These features support wireless device connections alongside the display's HDMI and USB-C inputs.
Can the 86BDL4152E/00 be wall mounted?
Yes. It has an 800 x 400 mm wall mount pattern with M8 fixings. The display weighs 57 kg, so the bracket, wall structure and fixings must be rated for that load before installation.
How is the 86BDL4152E/00 controlled over a network?
It has two Gb LAN ports for network control, plus RS232C and IR control. Its remote control and keyboard can be locked, and RS232 and IR loop-through are supported for linking units. Procure.ae can advise on the control setup for your site.
