PhilipsInteractive Flat PanelsSKU 65BDL3052E/00

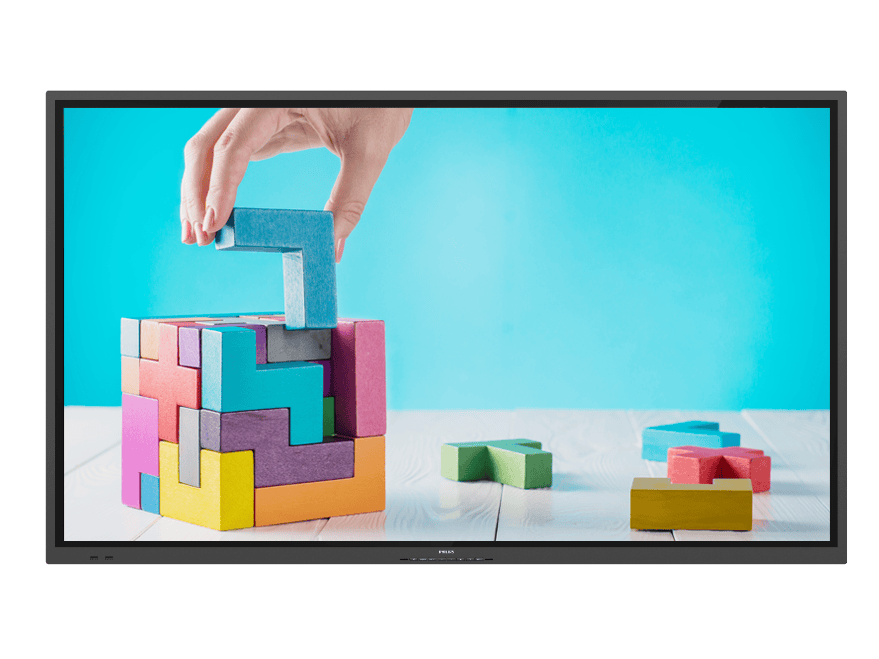

Philips E-Line 3000 65-inch Interactive Flat Panel – 65BDL3052E/00
The Philips 65BDL3052E/00 is a 65-inch 4K UHD interactive flat panel with 20-point infrared touch and Android 8.0. It suits classrooms, meeting rooms and training spaces that need hands-on collaboration on a 3840 x 2160 screen. Procure.ae supplies the Philips 65BDL3052E/00 as an authorised reseller across the UAE.
The 65BDL3052E/00 pairs a 65-inch 3840 x 2160 ADS panel with 20 simultaneous touch points on 0-gap infrared touch. Brightness is rated at 350 nits, with a 1,200:1 typical contrast ratio and 178-degree viewing angles. The toughened anti-glare glass is rated 7 MOHS. Two 15 W speakers are built in, and the panel has HDMI 2.0 inputs plus a USB-C input rated up to 65 W for laptops. The Android 8.0 platform has 3 GB DDR3 memory and 16 GB eMMC storage.
The E-Line 3000 suits classrooms, boardrooms and training rooms where a large touch display is used in place of a projector and whiteboard. It has an OPS slot, Smart Insert mounting with a 100 x 100 mm pattern and a 400 x 400 mm wall mount with M8 fixings, and it can be controlled over RS232C, RJ45 or IR. Compared with the 65-inch 4000 Series E-Line, the 3000 Series runs Android 8.0 with 3 GB memory, while the 4000 Series runs Android 11 with 8 GB.
Screen Size
65 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
350 nits
Touch Technology
Infrared
- 4K UHD Display
- 20-Point Touch
- Anti-Glare Glass
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
4K UHD Display
65-inch ADS panel at 3840 x 2160 resolution and 60 Hz refresh rate.
02
20-Point Touch
0-gap infrared touch with 20 simultaneous touch points.
03
Anti-Glare Glass
Toughened safety glass rated 7 MOHS with an anti-glare finish.
04
Android 8.0 Platform
3 GB DDR3 memory and 16 GB eMMC storage.
05
Built-in Audio
2 x 15 W speakers with 3.5 mm audio input and output.
06
Flexible Inputs
Three HDMI 2.0 inputs, DVI-D, VGA and a USB-C input up to 65 W.
07
Network Control
RJ45, RS232C and IR control with lockable remote and keyboard.
08
Installation Options
Smart Insert mounting (100 x 100 mm) and a 400 x 400 mm wall mount.
Specifications
31 specificationsGeneral
Key Features4K UHD ADS panel, 20-point infrared touch, anti-glare tempered glass rated 7 MOHS, Android 8.0, 2 x 15 W built-in speakers, OPS slot, USB-C input up to 65 W, Smart Insert mounting
Model65BDL3052E/00
TypeInteractive Flat Panel
What's in the BoxRemote control with AAA batteries, HDMI cable (3 m), USB A to B cable (3 m), RS232 cable, RS232 daisy chain cable, IR sensor cable (1.8 m), 2 touch pens, cleaning cloth, quick start guide
Display
Aspect Ratio16:9
Brightness350 nits
Contrast Ratio1,200:1
Panel TechnologyADS
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size65 inch
Touch Points20-point multi-touch
Touch TechnologyInfrared
Viewing Angle178 degrees horizontal and vertical
Performance
Operating SystemAndroid 8.0
ProcessorQuad-core (2 x A53 + 2 x A73)
RAM3 GB
Storage16 GB
Audio
Speaker Output2 x 15 W
Connectivity
Input Voltage100–240 V AC, 50/60 Hz
OPS SlotYes
PortsHDMI 2.0 In × 3, DVI-D In × 1, VGA In × 1, USB-C In (up to 65 W) × 1, USB 2.0 × 4, USB-B × 3, OPS slot, RJ45, RS232C, IR, Audio In and Out (3.5 mm)
Power
Power Consumption155 W (typical)
Standby Power< 0.5 W
Physical
Operating Humidity20% to 80% RH (no condensation)
Operating Temperature0 to 40 °C
VESA Mount400 x 400 mm
Weight43.15 kg
Compliance
CertificationsCE; FCC Class A; RoHS; CB; EAC; EMF; ETL
Warranty5 years
Downloads
Manufacturer documents for the Philips E-Line 3000 65-inch Interactive Flat Panel – 65BDL3052E/00 — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What is the Philips 65BDL3052E/00 used for?
It is a 65-inch interactive flat panel for classrooms, meeting rooms and training spaces. Its 4K UHD display and 20-point infrared touch support shared, hands-on work, and Android 8.0 is built in, so content and apps can run on the panel itself.
Does the 65BDL3052E/00 support multi-touch?
Yes. It supports 20 simultaneous touch points using 0-gap infrared touch technology, so several people can write or interact at the same time. The toughened anti-glare glass is rated 7 MOHS, which suits daily use in busy classrooms.
Which inputs does the 65BDL3052E/00 have?
It has three HDMI 2.0 inputs, one DVI-D input, one VGA input and a USB-C input rated up to 65 W, so laptops, PCs and other sources can stay connected at the same time. It also has four USB 2.0 ports and an OPS slot for an optional computing module.
Can the 65BDL3052E/00 be wall mounted?
Yes. It has a 400 x 400 mm wall mount pattern with M8 fixings and also supports Smart Insert mounting with a 100 x 100 mm pattern. The display weighs 43.15 kg, so the wall bracket and fixings should be rated for that load before installation.
Can the display be controlled over a network?
Yes. It has RJ45 and RS232C ports for network and serial control, plus an IR input for remote use. The remote control and keyboard can be locked, which helps prevent changes to settings in shared rooms, and RS232 loop-through is available for linking units.
Can I buy the 65BDL3052E/00 in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
