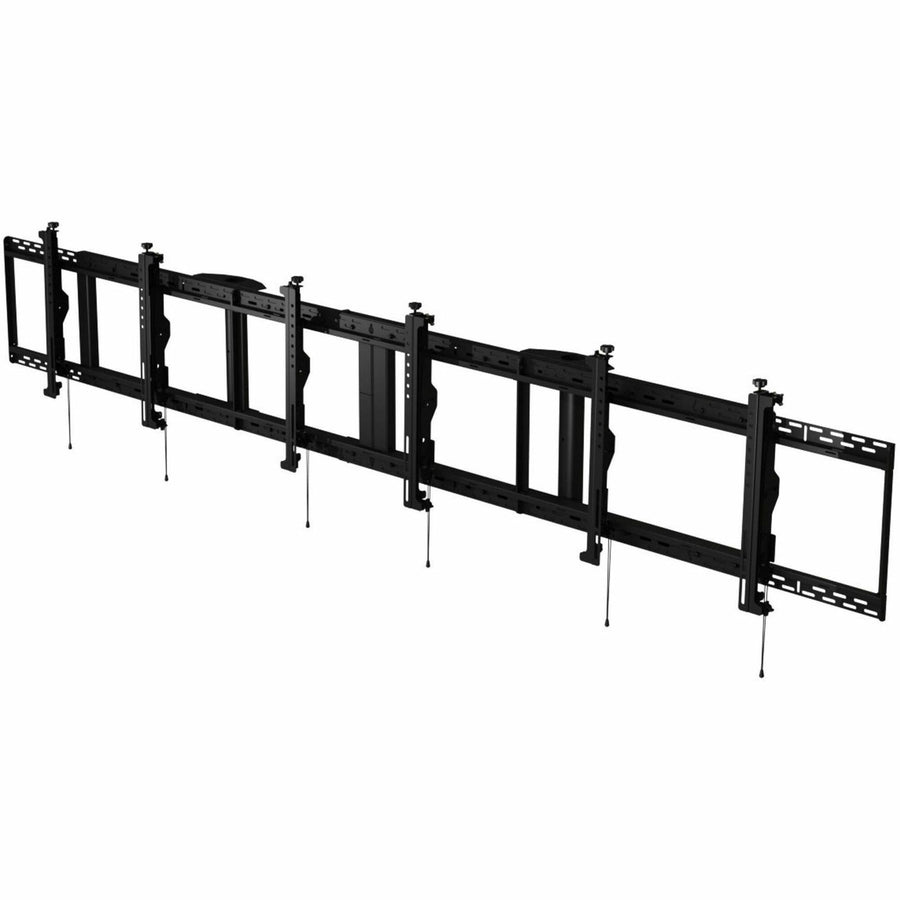

Peerless SmartMount 40-42-inch 3x1 Menu Board Ceiling Mount – DS-MBZ942L-3X1

The Peerless-AV DS-MBZ942L-3X1 is a landscape mount for three 40-to-42-inch digital menu boards in a 3x1 configuration. It carries up to 136.08 kg, uses connecting wall plates with tool-less 8-point adjustment, and has a 2658 x 400 mm mounting pattern. Procure.ae, an authorised reseller, supplies it in the UAE.

The mount holds three 40-to-42-inch displays in landscape orientation, with a maximum load of 136.08 kg and a 2658 x 400 mm mounting pattern. Connecting wall plates create a continuous mounting surface, and tool-less four-corner depth adjustment aligns the displays on the same plane. Horizontal adjustment gives the installer a seamless menu board appearance, and the quick-connect latch engages the wall plate when each display is mounted. The approximate weight is 39.42 kg.

The 3x1 mount suits wide quick service restaurant menu boards where three screens must appear as a single unit. Continuous and Increlok tilt options keep all displays at the same angle, with a range of 0° to 15°. The compatible columns are the fixed EXT018 and the adjustable ADD0203, which adjusts to a minimum of 31 inches. Assembly is required. The manufacturer lists RoHS, TAA and VESA certifications and a five-year limited warranty. Procure.ae supplies it across the UAE, with delivery and installation available.
