PeerlessMeeting Room SolutionsSKU ACC-MBCR1

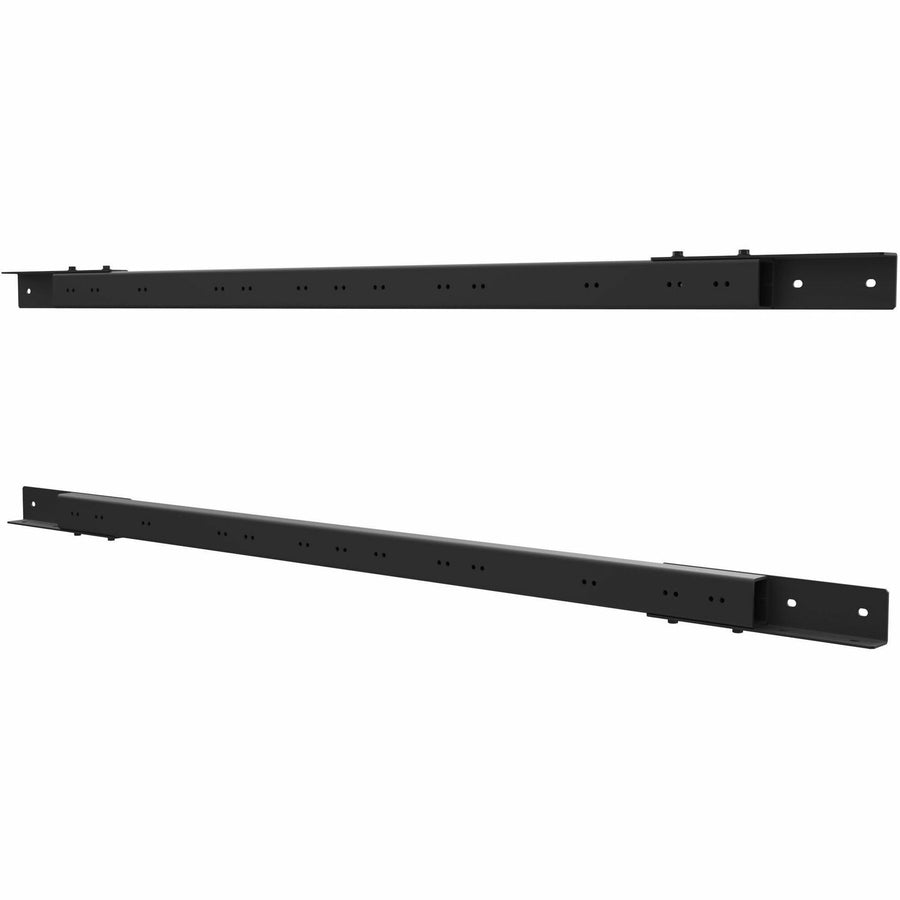

Peerless-AV Ceiling Menu Board Connector for 4x1 Configurations – ACC-MBCR1
The Peerless-AV ACC-MBCR1 is a black ceiling connector that joins standard Peerless-AV ceiling menu board mounts into a 4x1 configuration of four displays. It has a maximum load of 181.44 kg and weighs approximately 9.16 kg. It suits wide digital ceiling menu boards, and Procure.ae supplies it across the UAE.
The ACC-MBCR1 connects standard Peerless-AV ceiling menu board mounts side by side to create a 4x1 configuration of four displays. Its design keeps the mounts aligned and the displays on the same plane. Load capacity is 45.36 kg minimum and 181.44 kg maximum, and the connector weighs approximately 9.16 kg. Peerless-AV lists compatibility with the DS-MBZ942L-2X1 and DS-MBZ947L-2X1 configurations. To widen the setup for a larger display, the manufacturer notes that the ACC-MB0800 8-inch wall plate can be added.
Type
Ceiling Menu Board Connector
Weight
9.16 kg
- Four-display configuration
- Aligned on one plane
- Wider with an 8-inch plate
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Four-display configuration
Connects four standard ceiling menu board mounts into a 4x1 setup.
02
Aligned on one plane
The connector keeps mounts aligned and displays on the same plane.
03
Wider with an 8-inch plate
Add the ACC-MB0800 8-inch wall plate to widen the configuration for larger displays.
04
Load capacity range
Minimum load of 45.36 kg and maximum load of 181.44 kg.
05
Compatible ceiling mounts
Compatible with the DS-MBZ942L-2X1 and DS-MBZ947L-2X1 configurations.
06
5-year limited warranty
The manufacturer lists a 5-year limited warranty.
Specifications
14 specificationsGeneral
ApplicationCeiling menu boards; indoor use
CompatibilityDS-MBZ942L-2X1, DS-MBZ947L-2X1, ACC-MB0800
Key FeaturesConnects four ceiling menu board mounts, Forms 4x1 configuration, Keeps mounts aligned on one plane, Widen with ACC-MB0800 8-inch wall plate
ModelACC-MBCR1
TypeCeiling Menu Board Connector
What's in the BoxConnector frame, mounting hardware
Physical
ColorBlack
FinishMatte
Form FactorCeiling mountable
Load Capacity45.36-181.44 kg
MountingCeiling
Weight9.16 kg
Compliance
CertificationsRoHS
Warranty5 years
Downloads
Manufacturer documents for the Peerless-AV Ceiling Menu Board Connector for 4x1 Configurations – ACC-MBCR1 — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
How many displays does the ACC-MBCR1 connect?
It connects four displays in a 4x1 configuration by joining standard Peerless-AV ceiling menu board mounts. The manufacturer's specifications list a minimum load capacity of 45.36 kg and a maximum of 181.44 kg for the connector.
Is the ACC-MBCR1 compatible with my ceiling mount?
Yes, for the listed models. The manufacturer lists compatibility with the DS-MBZ942L-2X1 and DS-MBZ947L-2X1 mounts. To widen the configuration, the ACC-MB0800 8-inch wall plate can be added. For other mounts, the manufacturer's specifications do not state compatibility, so confirm the model before ordering.
Does the ACC-MBCR1 need assembly?
Yes. Assembly is required, and the package includes a connector frame and mounting hardware. The design keeps the mounts aligned and the displays on the same plane. Procure.ae supplies delivery and installation across the UAE.
