PanasonicProjectors & ProjectionSKU PT-RZ690B

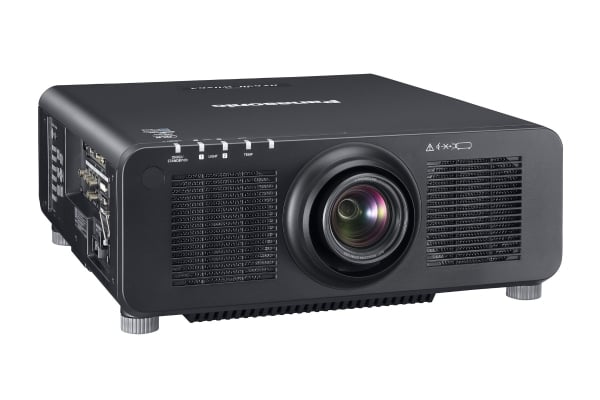

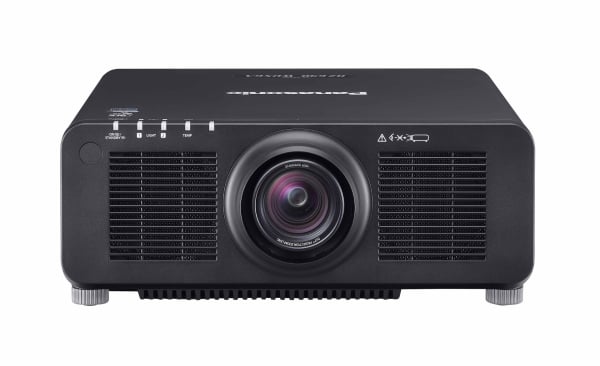

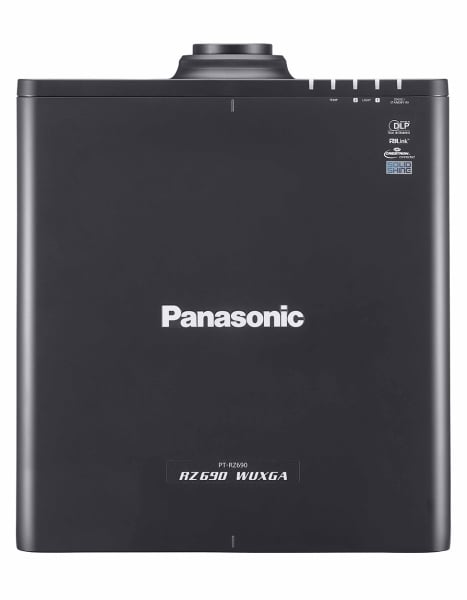

Panasonic PT-RZ690B Laser Projector – 6,200 Lumens, WUXGA, 1-Chip DLP
The Panasonic PT-RZ690B Laser Projector – 6,200 Lumens, WUXGA, 1-Chip DLP is a projector available in the UAE from Procure.ae.
The Panasonic PT-RZ690B is a high-performance WUXGA laser installation projector engineered for education, corporate, and exhibition environments. With 6200 lumens brightness and 1920 x 1200 resolution, it delivers sharp, vibrant images with incredible clarity. Its 1-Chip DLP™ technology ensures long-lasting image integrity and precise color reproduction. The laser light source enables up to 20,000 hours of maintenance-free operation with minimal brightness loss.
It is supplied to corporate, education, and government organisations across the UAE, with procurement-ready quotations and regional delivery.
Resolution
1920 x 1080 (Full HD)
Brightness Lumens
6001–7000 lm
Lamp Type
Laser
Weight
22.1 kg
- 6200 Lumens Laser Brightness
- WUXGA Native Resolution
- 1-Chip DLP™ Technology
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
6200 Lumens Laser Brightness
Provides excellent visibility in large rooms and under bright ambient lighting.
02
WUXGA Native Resolution
1920 x 1200 resolution ensures detailed and sharp widescreen visuals.
03
1-Chip DLP™ Technology
Offers accurate color reproduction and image consistency with minimal maintenance.
04
Laser Light Source
Operates up to 20,000 hours, reducing downtime and replacement costs.
05
HDBaseT & DIGITAL LINK
Simplifies A/V transmission and control with a single CAT5e/6 cable over long distances.
06
Flexible Lens Shift & Zoom
Vertical and horizontal lens shift plus wide zoom enhance installation flexibility.
07
Edge Blending & Geometric Adjustment
Seamlessly combine multiple projectors or project onto curved surfaces.
08
Sealed Optical Block
Dust-resistant design protects internal components and maintains image quality.
Specifications
13 specificationsDisplay
Aspect Ratio16:10
Brightness Lumens6001–7000 lm
Contrast Ratio10,000:1
Lamp Life20,000 hours / 24,000 hours eco
Lamp TypeLaser
Projection Size50-600" diagonal
Resolution1920 x 1080 (Full HD)
Throw Ratio0.8:1
Power
Power Consumption490 W (Normal)/395 W (Eco) 200 W (Long Life 1)/180 W (Long Life 2)/160 W (Long Life 3)
Physical
ColorBlack
Dimensions498 x 200 x 6 mm
Weight22.1 kg
Compliance
Country of OriginChina
Questions
Can’t find your answer? Ask on WhatsApp
What is the Panasonic projector used for?
The Panasonic PT-RZ690B is a high-performance WUXGA laser installation projector engineered for education, corporate, and exhibition environments. With 6200 lumens brightness and 1920 x 1200 resolution, it delivers sharp, vibrant images with incredible clarity.
Does it include installation and warranty?
Procure.ae can arrange installation and provides manufacturer-backed warranty support. Contact us for the full warranty details applicable to this model.
How bright is this projector — will it work in a lit room?
Brightness varies by model — tell us your room lighting and we'll recommend the right lumens.
What projection technology does it use?
