Panasonic Portable Projector Series PT-LW321
- SKU: PT-LW321
Actual Stock Can Be Confirmed After Placing the Order.
Specification Model PT-LW321 PT-LW271 Power supply 100-240 V AC, 50/60 Hz Power consumption 245 W (0.5 W when STANDBY MODE set to ECO,*16.0 W when STANDBY MODE set to NORMAL.*2) 220 W (0.5 W when STANDBY MODE set to ECO,*16.0 W when STANDBY MODE... See More
EMAIL
info@procure.ae
TELEPHONE
(+971) 454 65041
WHATSAPP
(+971) 454 65041
FREE SHIPPING
All orders over AED1999/-
Specification
Model |
PT-LW321 |
PT-LW271 |
|
|---|---|---|---|
| Power supply | 100-240 V AC, 50/60 Hz | ||
| Power consumption | 245 W (0.5 W when STANDBY MODE set to ECO,*1 6.0 W when STANDBY MODE set to NORMAL.*2) |
220 W (0.5 W when STANDBY MODE set to ECO,*1 6.0 W when STANDBY MODE set to NORMAL.*2) |
|
| DLP™ chip | Panel size | 16.5 mm (0.65 in) (16:10 aspect ratio) | |
| Display method | DLP™ chip x 1, DLP™ projection system | ||
| Pixels | 1,024,000 (1,280 x 800) pixels | ||
| Lens | 1.1x Manual zoom (1.55-1.7:1 throw ratio), manual focus, F 2.5-2.67, f=21.8-24 mm |
||
| Lamp | 190 W UHM lamp | ||
| Lamp replacement cycle (Normal / Eco / AUTO) |
4,500 / 6,000 / 10,000 hours*3 | 5,000 / 6,000 / 10,000 hours*3 | |
| Screen size (diagonal) | 0.76-7.62 m (30-300 in), 16:10 aspect ratio | ||
| Brightness*4 | 3,200 lm | 2,700 lm | |
| Center-to-corner uniformity*4 | 80 % | ||
| Contrast*4 | 7,500:1 (full on/full off, During RGB signal input, Color mode: Dynamic, Lamp power: AUTO) |
||
| Resolution | 1,280 x 800 pixels (Input signals that exceed this resolution will be converted to 1,280 x 800 pixels.) |
||
| Scanning frequency |
HDMI | fH: 15-91.1 kHz, fV: 24-85.1 Hz, dot clock: 25-162 MHz | |
| RGB (analog) | fH: 15-91.1 kHz, fV: 24-85.1 Hz, dot clock: 162 MHz or lower | ||
| YPBPR (YCBCR) |
fH: 15.75 kHz, fV: 60 Hz [480i (525i)]
fH: 31.50 kHz, fV: 60 Hz [480p (525p)] fH: 45.00 kHz, fV: 60 Hz [720 (750)/60p] fH: 33.75 kHz, fV: 60 Hz [1080 (1125)/60i] fH: 27.00 kHz, fV: 24 Hz [1080 (1125)/24p] fH: 56.25 kHz, fV: 50 Hz [1080 (1125)/50p] fH: 15.63 kHz, fV: 50 Hz [576i (625i)]
fH: 31.25 kHz, fV: 50 Hz [576p (625p)] fH: 37.50 kHz, fV: 50 Hz [720 (750)/50p] fH: 28.13 kHz, fV: 50 Hz [1080 (1125)/50i] fH: 67.50 kHz, fV: 60 Hz [1080 (1125)/60p] |
||
| Video | fH: 15.75 kHz, fV: 60 Hz [NTSC/NTSC4.43/PAL-M/PAL60], fH: 15.63 kHz, fV: 50 Hz [PAL/PAL-N/SECAM] |
||
| Optical axis shift | 10:-1.2 | ||
| Keystone correction range | Vertical: ±40° (manual) | ||
| Installation | Ceiling/floor, front/rear | ||

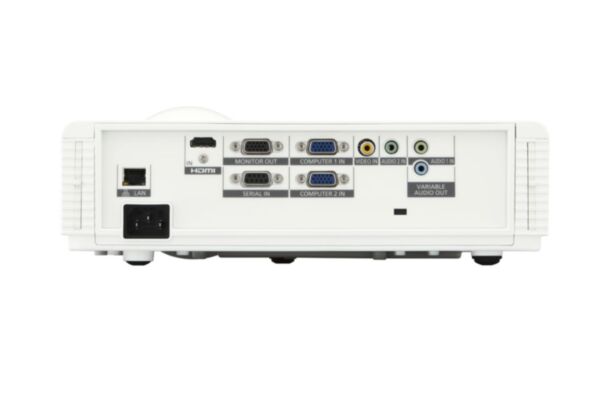

| Terminals | HDMI IN | HDMI 19-pin x 1 (Deep color, compatible with HDCP), audio signal: linear PCM (Sampling frequency: 48 kHz, 44.1 kHz, 32 kHz) |
|
| COMPUTER 1 IN | D-sub HD 15-pin (female) x 1 [RGB/YPB(CB)/PR(CR) x 1] | ||
| COMPUTER 2 IN | D-sub HD 15-pin (female) x 1 [RGB/YPB(CB)/PR(CR) x 1] | ||
| MONITOR OUT | D-sub HD 15-pin (female) x 1 (The signal selected from computer input 1/2 is output.) | ||
| VIDEO IN | Pin jack x 1 | ||
| SERIAL IN | D-sub 9-pin (female) x 1 for external control (RS-232C compliant) | ||
| AUDIO 1 IN | M3 x 1 (L-R x 1) (for COMPUTER) | ||
| AUDIO 2 IN | M3 x 1 (L-R x 1) (for VIDEO) | ||
| AUDIO OUT | M3 x 1 (L-R x 1) for output (variable) | ||
| LAN | RJ-45 x 1 (for network connection, 100BASE-TX/10BASE-T, compliant with PJLink™ (class 1)) |
||
| Built-in speaker | 7 x 4 cm oval shape x 1, output power 8 W (monaural) | ||
| Cabinet materials | Molded plastic (PC) | ||
| Dimensions (W x H x D) | 288 x 100*5 x 231*6 mm (11-11/32 x 3-15/16 x 9-3/32 in) | ||
| Weight | Approximately 2.5 kg (5.5 lbs)*7 | ||
| Operation noise*4 | 34 dB (Lamp power: Normal), 29 dB (Lamp power: Eco) | ||
| Operating temperature | 5-40°C [41-104°F] (Less than 750 m [2,500 ft] above sea level), 5-35°C [41-95°F] (between 750 and 1,500 m [2,500 ft and 5,000 ft] above sea level), 5-30°C [41-86°F] (between 1,500 and 3,000 m [5,000 ft and 10,000 ft] above sea level) |
||
| Operating humidity | 20-80 % (no condensation) | ||

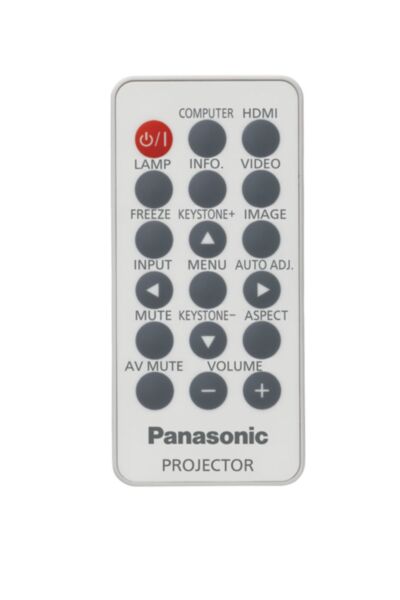

| Supplied accessories | Power cord (1.8 m*8) x 1*9, wireless remote control unit x 1, lithium coin cell battery x 1, computer cable (1.8 m) x 1 |
||
Model |
PT-LX351 |
PT-LX321 |
PT-LX271 |
|
|---|---|---|---|---|
| Power supply | 100-240 V AC, 50/60 Hz | |||
| Power consumption | 305 W (0.5 W when STANDBY MODE set to ECO,*1 6.0 W when STANDBY MODE set to NORMAL.*2) |
245 W (0.5 W when STANDBY MODE set to ECO,*1 6.0 W when STANDBY MODE set to NORMAL.*2) |
220 W (0.5 W when STANDBY MODE set to ECO,*1 6.0 W when STANDBY MODE set to NORMAL.*2) |
|
| DLP™ chip | Panel size | 14 mm (0.55 in) (4:3 aspect ratio) | ||
| Display method | DLP™ chip x 1, DLP™ projection system | |||
| Pixels | 786,432 (1,024 x 768) pixels | |||
| Lens | 1.1x Manual zoom (1.95-2.15:1 throw ratio), manual focus, F 2.41-2.53, f=21.8-24 mm |
|||
| Lamp | 240 W UHM lamp | 190 W UHM lamp | ||
| Lamp replacement cycle (Normal / Eco / AUTO) |
3,000 / 4,000 (Eco1, Eco2) / 7,500 hours*3 |
4,000 / 6,000 / 8,500 hours*3 |
5,000 / 6,000 / 10,000 hours*3 |
|
| Screen size (diagonal) | 0.76-7.62 m (30-300 in), 4:3 aspect ratio | |||
| Brightness*4 | 3,500 lm | 3,200 lm | 2,700 lm | |
| Center-to-corner uniformity*4 | 80 % | |||
| Contrast*4 | 7,500:1 (full on/full off, During RGB signal input, Color mode: Dynamic, Lamp power: AUTO) |
|||
| Resolution | 1,024 x 768 pixels (Input signals that exceed this resolution will be converted to 1,024 x 768 pixels.) |
|||
| Scanning frequency |
HDMI | fH: 15-91.1 kHz, fV: 24-85.1 Hz, dot clock: 25-162 MHz | ||
| RGB (analog) | fH: 15-91.1 kHz, fV: 24-85.1 Hz, dot clock: 162 MHz or lower | |||
| YPBPR (YCBCR) |
fH: 15.75 kHz, fV: 60 Hz [480i (525i)]
fH: 31.50 kHz, fV: 60 Hz [480p (525p)] fH: 45.00 kHz, fV: 60 Hz [720 (750)/60p] fH: 33.75 kHz, fV: 60 Hz [1080 (1125)/60i] fH: 27.00 kHz, fV: 24 Hz [1080 (1125)/24p] fH: 56.25 kHz, fV: 50 Hz [1080 (1125)/50p] fH: 15.63 kHz, fV: 50 Hz [576i (625i)]
fH: 31.25 kHz, fV: 50 Hz [576p (625p)] fH: 37.50 kHz, fV: 50 Hz [720 (750)/50p] fH: 28.13 kHz, fV: 50 Hz [1080 (1125)/50i] fH: 67.50 kHz, fV: 60 Hz [1080 (1125)/60p] |
|||
| Video | fH: 15.75 kHz, fV: 60 Hz [NTSC/NTSC4.43/PAL-M/PAL60], fH: 15.63 kHz, fV: 50 Hz [PAL/PAL-N/SECAM] |
|||
| Optical axis shift | 10:-1.5 | |||
| Keystone correction range | Vertical: ±40° (manual) | |||
| Installation | Ceiling/floor, front/rear | |||
| Terminals | HDMI IN | HDMI 19-pin x 1 (Deep color, compatible with HDCP), audio signal: linear PCM (Sampling frequency: 48 kHz, 44.1 kHz, 32 kHz) |
||
| COMPUTER 1 IN | D-sub HD 15-pin (female) x 1 [RGB/YPB(CB)/PR(CR) x 1] | |||
| COMPUTER 2 IN | D-sub HD 15-pin (female) x 1 [RGB/YPB(CB)/PR(CR) x 1] | |||
| MONITOR OUT | D-sub HD 15-pin (female) x 1 (The signal selected from computer input 1/2 is output.) | |||
| VIDEO IN | Pin jack x 1 | |||
| SERIAL IN | D-sub 9-pin (female) x 1 for external control (RS-232C compliant) | |||
| AUDIO 1 IN | M3 x 1 (L-R x 1) (for COMPUTER) | |||
| AUDIO 2 IN | M3 x 1 (L-R x 1) (for VIDEO) | |||
| AUDIO OUT | M3 x 1 (L-R x 1) for output (variable) | |||
| LAN | RJ-45 x 1 (for network connection, 100BASE-TX/10BASE-T, compliant with PJLink™ (class 1)) |
|||
| Built-in speaker | 7 x 4 cm oval shape x 1, output power 8 W (monaural) | |||
| Cabinet materials | Molded plastic (PC) | |||
| Dimensions (W x H x D) | 288 x 100*5 x 233*6 mm (11-11/32 x 3-15/16 x 9-3/16 in) | |||
| Weight | Approximately 2.5 kg (5.5 lbs)*7 | |||
| Operation noise*4 | 37 dB (Lamp power: Normal), 32 dB (Lamp power: Eco1), 29 dB (Lamp power: Eco2) |
35 dB (Lamp power: Normal), 29 dB (Lamp power: Eco) |
34 dB (Lamp power: Normal), 29 dB (Lamp power: Eco) |
|
| Operating temperature | 5-40°C [41-104°F] (Less than 750 m [2,500 ft] above sea level), 5-35°C [41-95°F] (between 750 and 1,500 m [2,500 ft and 5,000 ft] above sea level), 5-30°C [41-86°F] (between 1,500 and 3,000 m [5,000 ft and 10,000 ft] above sea level) |
|||
| Operating humidity | 20-80 % (no condensation) | |||
| Supplied accessories | Power cord (1.8 m*8) x 1*9, wireless remote control unit x 1, lithium coin cell battery x 1, computer cable (1.8 m) x 1 |
|||
Model |
PT-LX300 |
PT-LX270 |
|
|---|---|---|---|
| Power supply | 100-240 V AC, 50/60 Hz | ||
| Power consumption | 218 W (0.5 W when STANDBY MODE set to ECO,*1 6.0 W when STANDBY MODE set to NORMAL.*2) |
||
| DLP™ chip | Panel size | 14 mm (0.55 in) (4:3 aspect ratio) | |
| Display method | DLP™ chip x 1, DLP™ projection system | ||
| Pixels | 786,432 (1,024 x 768) pixels | ||
| Lens | 1.1x Manual zoom (1.95-2.15:1 throw ratio), manual focus, F 2.41-2.53, f=21.8-24 mm |
||
| Lamp | 190 W UHM lamp | ||
| Lamp replacement cycle (Normal / Eco1, Eco2 / AUTO) |
4,500 / 6,000 / 10,000 hours*3 | 5,000 / 6,000 / 10,000 hours*3 | |
| Screen size (diagonal) | 0.76-7.62 m (30-300 in), 4:3 aspect ratio | ||
| Brightness*4 | 3,000 lm | 2,700 lm | |
| Center-to-corner uniformity*4 | 80 % | ||
| Contrast*4 | 4,000:1 (full on/full off, During RGB signal input, Color mode: Dynamic, Lamp power: Normal) |
||
| Resolution | 1,024 x 768 pixels (Input signals that exceed this resolution will be converted to 1,024 x 768 pixels.) |
||
| Scanning frequency |
HDMI | fH: 15-91.1 kHz, fV: 24-85.1 Hz, dot clock: 25-162 MHz | |
| RGB (analog) | fH: 15-91.1 kHz, fV: 24-85.1 Hz, dot clock: 162 MHz or lower | ||
| YPBPR (YCBCR) |
fH: 15.75 kHz, fV: 60 Hz [480i (525i)]
fH: 31.50 kHz, fV: 60 Hz [480p (525p)] fH: 45.00 kHz, fV: 60 Hz [720 (750)/60p] fH: 33.75 kHz, fV: 60 Hz [1080 (1125)/60i] fH: 27.00 kHz, fV: 24 Hz [1080 (1125)/24p] fH: 56.25 kHz, fV: 50 Hz [1080 (1125)/50p] fH: 15.63 kHz, fV: 50 Hz [576i (625i)]
fH: 31.25 kHz, fV: 50 Hz [576p (625p)] fH: 37.50 kHz, fV: 50 Hz [720 (750)/50p] fH: 28.13 kHz, fV: 50 Hz [1080 (1125)/50i] fH: 67.50 kHz, fV: 60 Hz [1080 (1125)/60p] |
||
| Video | fH: 15.75 kHz, fV: 60 Hz [NTSC/NTSC4.43/PAL-M/PAL60], fH: 15.63 kHz, fV: 50 Hz [PAL/PAL-N/SECAM] |
||
| Optical axis shift | 10:-1.5 | ||
| Keystone correction range | Vertical: ±40° (manual) | ||
| Installation | Ceiling/floor, front/rear | ||
| Terminals | HDMI IN | HDMI 19-pin x 1 (Deep color, compatible with HDCP), audio signal: linear PCM (Sampling frequency: 48 kHz, 44.1 kHz, 32 kHz) |
|
| COMPUTER IN | D-sub HD 15-pin (female) x 1 [RGB/YPB(CB)/PR(CR) x 1] | ||
| MONITOR OUT | D-sub HD 15-pin (female) x 1 | ||
| VIDEO IN | Pin jack x 1 | ||
| SERIAL IN | Mini DIN 3-pin (female) x 1 for external control (RS-232C compliant) | ||
| AUDIO IN | M3 x 1 (L-R x 1) | ||
| AUDIO OUT | M3 x 1 (L-R x 1) for output (variable) | ||
| Built-in speaker | 4 x 2 cm oval shape x 1, output power 2 W (monaural) | ||
| Cabinet materials | Molded plastic (PC) | ||
| Dimensions (W x H x D) | 286 x 100.6*5 x 192 mm (11-1/4 x 3-31/32 x 7-9/16 in) | ||
| Weight | Approximately 2.3 kg (5.1 lbs)*6 | ||
| Operation noise*4 | 34 dB (Lamp power: Normal), 29 dB (Lamp power: Eco) | ||
| Operating temperature | 5-40°C [41-104°F] (Less than 750 m [2,500 ft] above sea level), 5-35°C [41-95°F] (between 750 and 1,500 m [2,500 ft and 5,000 ft] above sea level), 5-30°C [41-86°F] (between 1,500 and 3,000 m [5,000 ft and 10,000 ft] above sea level) |
||
| Operating humidity | 20-80 % (no condensation) | ||
| Supplied accessories | Power cord (1.8 m*7) x 1*8, wireless remote control unit x 1, lithium coin cell battery x 1, computer cable (1.8 m) x 1 |
||
No datasheet available.
