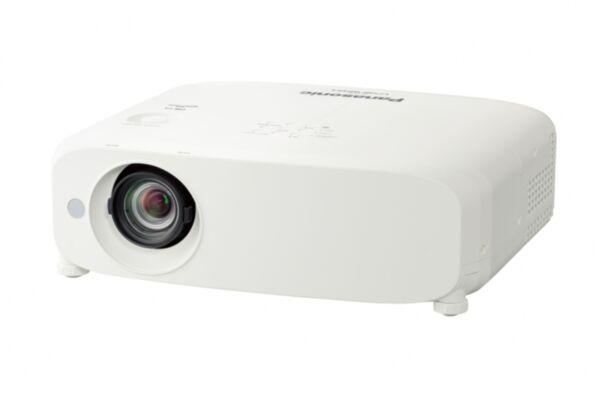

Panasonic Portable LCD Projector PT-VZ470
- SKU: PT-VZ470
Actual Stock Can Be Confirmed After Placing the Order.
Specification PT-VZ470 Power supply AC 120 V, 50/60 Hz (North America), AC 100−240 V, 50/60 Hz (other countries) Power consumption 372 W (North America), 378 W (other countries) Standby power consumption Standby Mode (ECO) *1 0.2 W (North America), 0.4 W (other countries) Standby... See More
EMAIL
info@procure.ae
TELEPHONE
(+971) 454 65041
WHATSAPP
(+971) 454 65041
FREE SHIPPING
All orders over AED1999/-
Specification
|
|
||
|---|---|---|
| Power supply | AC 120 V, 50/60 Hz (North America), AC 100−240 V, 50/60 Hz (other countries) | |
| Power consumption | 372 W (North America), 378 W (other countries) | |
| Standby power consumption | ||
| Standby Mode (ECO) *1 | 0.2 W (North America), 0.4 W (other countries) | |
| Standby Mode (Normal) | 8 W | |
| LCD panel | ||
| Panel size | 0.64 inches (1.63 cm) (16:10 aspect ratio) | |
| Display method | Transparent LCD panel (× 3, R/G/B) | |
| Pixels | 2,304,000 (1920 × 1200) × 3, total of 6,912,000 pixels | |
| Lens | 1.6x manual zoom (throw ratio: 1.09–1.77:1), manual focus F 1.60–2.12, f 15.30–24.64 mm | |
| Lamp | 270 W UHM lamp x 1 | |
| Screen size (diagonal) | 30−300 inches | |
| Brightness *2 | 4,400 lm (input signal: PC, lamp power: Normal, picture mode: Dynamic, Daylight View: OFF, Auto Power Save: OFF) | |
| Contrast *2 | 10,000:1 (all white/all black) (input signal: PC, lamp power: Normal, picture mode: Dynamic, Iris: On, Daylight View: OFF, Auto Power Save: OFF) | |
| Resolution | 1920 x 1200 pixels | |
| Supported RGB signal | XGA–WUXGA | |
| Supported video signal | NTSC/PAL/SECAM, 480p/i, 720p, 1080p/i | |
| Keystone correction range | Vertical: maximum ±25° (auto/manual, input: WUXGA), Horizontal: maximum ±30° (manual, input: WUXGA) |
|
| Installation | Front ceiling / Front desk / Rear ceiling / Rear desk | |
| Built-in speaker | 4.0 cm (1 1/16″ ) round shape × 1, output power: 10 W (monaural) | |
| Operation noise*2 | 37 dB (lamp power: Normal), 29 dB (lamp power: ECO) | |
| Cabinet materials | Molded plastic | |
| Dimensions (W x H x D) | 389 × 125*4 × 332 mm (15 5/16″ × 4 29/32″ *4 × 13 1/16″ ) | |
| Weight*3 | Approximately 4.8 kg (10.6 lbs) | |
| Operating environment | Operating temperature: 0−40 °C (32−104 °F)*5 (altitude: less than 1,200 m [3,937 ft]), 0−30 °C (32−86 °F) (altitude: 1,200−2,700 m [3,937−8,858 ft] ), Operating humidity: 20−80 % (no condensation) |
|
| Supplied accessories | Wireless remote control unit × 1, Power cord with power cord holder × 1 (× 2 for UK and Asia), Software CD-ROM × 1 (Operating instructions, Multi Monitoring and Control Software, Logo Transfer Software, Batteries (AAA type × 2), RGB cable × 1, Lens cap × 1 |
|
| Built-in wireless LAN | - | |
TerminalsPT-VZ470 |
 |
|
No datasheet available.
