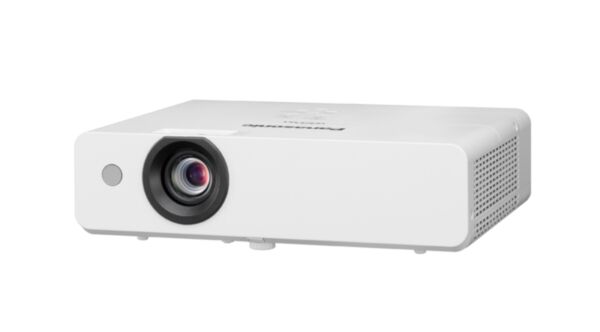

Panasonic Portable LCD Projector PT-LB423
- SKU: PT-LB423
Actual Stock Can Be Confirmed After Placing the Order.
Specification PT-LB423 PT-LB383 Power supply AC 100–240 V, 3.5 A, 50 Hz/60 Hz AC 100–240 V, 3.5 A, 50 Hz/60 Hz Power consumption 300 W (6 W with Standby mode set to Normal, 0.5 W with Standby mode set to Eco*1) 300 W (6... See More
EMAIL
info@procure.ae
TELEPHONE
(+971) 454 65041
WHATSAPP
(+971) 454 65041
FREE SHIPPING
All orders over AED1999/-
Specification
|
|
|
|
|---|---|---|
| Power supply | AC 100–240 V, 3.5 A, 50 Hz/60 Hz | AC 100–240 V, 3.5 A, 50 Hz/60 Hz |
| Power consumption | 300 W (6 W with Standby mode set to Normal, 0.5 W with Standby mode set to Eco*1) | 300 W (6 W with Standby mode set to Normal, 0.5 W with Standby mode set to Eco*1) |
| LCD panel | ||
| Display method | Transparent LCD panel (x3, R/G/B) | Transparent LCD panel (x3, R/G/B) |
| Drive method | Active matrix method | Active matrix method |
| Panel size | 16.0 mm (0.63˝) diagonal (4:3 aspect ratio) | 16.0 mm (0.63˝) diagonal (4:3 aspect ratio) |
| Pixels | 786,432 (1024 x 768) pixels | 786,432 (1024 x 768) pixels |
| Lens | Manual zoom (1.2x), manual focus lens F=1.6–1.76, f=19.16–23.02 mm, throw ratio: 1.48–1.78:1 | Manual zoom (1.2x), manual focus lens F=1.6–1.76, f=19.16–23.02 mm, throw ratio: 1.48–1.78:1 |
| Screen size (diagonal) | 0.76–7.62 m (30–300˝) diagonally, 4:3 aspect ratio | 0.76–7.62 m (30–300˝) diagonally, 4:3 aspect ratio |
| Resolution | 1024 x 768 pixels *3 | 1024 x 768 pixels *3 |
| Supported RGB signal | XGA–WUXGA | XGA–WUXGA |
| Supported video signal | NTSC/PAL/SECAM, 480p/i, 720p, 1080p/i | NTSC/PAL/SECAM, 480p/i, 720p, 1080p/i |
| Brightness*2 | 4,100 lm (Lamp power: Normal) | 3,800 lm (Lamp power: Normal) |
| Lamp | 230 W x 1 lamp | 230 W x 1 lamp |
| Lamp replacement cycle*4 | Normal: 5,000 hours, Eco1: 6,000 hours, Eco2: 10,000 hours | Normal: 5,000 hours, Eco1: 6,000 hours, Eco2: 10,000 hours |
| Contrast*2 | 16,000:1 (all white/all black, Iris: On, Image Mode: Dynamic, Lamp Control: Normal) | 16,000:1 (all white/all black, Iris: On, Image Mode: Dynamic, Lamp Control: Normal) |
| Keystone correction range | Vertical: ± 30 ° (Auto, Manual), Horizontal: ± 15 ° (Manual) | Vertical: ± 30 ° (Auto, Manual), Horizontal: ± 15 ° (Manual) |
| Installation | Ceiling/floor, front/rear | Ceiling/floor, front/rear |
| Operation noise*2 | Normal: 37 dB, Eco1: 33 dB, Eco2: 28 dB | Normal: 37 dB, Eco1: 33 dB, Eco2: 28 dB |
| Cabinet materials | Molded plastic (PC) | Molded plastic (PC) |
| Dimensions (W x H x D) | 335 x 96 *5 x 252 mm (13 3/16˝ x 3 25/32˝ *6 x 9 29/32˝) | 335 x 96 *5 x 252 mm (13 3/16˝ x 3 25/32˝ *6 x 9 29/32˝) |
| Weight | Approx. 2.9 kg (6.4 lbs) | Approx. 2.9 kg (6.4 lbs) |
| Operating environment | Operating temperature: 5–40 °C (41–104 °F) [Altitude: below 1,400 m (4,593 ft), High Land Mode: OFF]; 5–35 °C (41–95 °F) [Altitude: 1,400–2,700 m (4,593–8,858 ft), High Land Mode: On1]; 5–30 °C (41–86 °F) [Altitude: 2,700–3,000 m (8,858–9,843 ft), High Land Mode: On2], Operating humidity: 20–80 % (no condensation) | Operating temperature: 5–40 °C (41–104 °F) [Altitude: below 1,400 m (4,593 ft), High Land Mode: OFF]; 5–35 °C (41–95 °F) [Altitude: 1,400–2,700 m (4,593–8,858 ft), High Land Mode: On1]; 5–30 °C (41–86 °F) [Altitude: 2,700–3,000 m (8,858–9,843 ft), High Land Mode: On2], Operating humidity: 20–80 % (no condensation) |
| Supplied accessories | Wireless remote control unit, Power cord (Number and size of cords depends on region), CD-ROM (Instruction manual, Multi Monitoring Control Software*6), Instruction manual (Basic guide), Batteries for remote control (R03/LR03/AAA type battery x 2), RGB signal cable | Wireless remote control unit, Power cord (Number and size of cords depends on region), CD-ROM (Instruction manual, Multi Monitoring Control Software*6), Instruction manual (Basic guide), Batteries for remote control (R03/LR03/AAA type battery x 2), RGB signal cable |
TerminalsPT-LB423/
|
 |
|
|
|
||
|---|---|---|
| Power supply | AC 100–240 V, 3.5 A, 50 Hz/60 Hz | |
| Power consumption | 300 W (6 W with Standby mode set to Normal, 0.5 W with Standby mode set to Eco*1) | |
| LCD panel | ||
| Display method | Transparent LCD panel (x3, R/G/B) | |
| Drive method | Active matrix method | |
| Panel size | 16.0 mm (0.63˝) diagonal (4:3 aspect ratio) | |
| Pixels | 786,432 (1024 x 768) pixels | |
| Lens | Manual zoom (1.2x), manual focus lens F=1.6–1.76, f=19.16–23.02 mm, throw ratio: 1.48–1.78:1 | |
| Screen size (diagonal) | 0.76–7.62 m (30–300˝) diagonally, 4:3 aspect ratio | |
| Resolution | 1024 x 768 pixels *3 | |
| Supported RGB signal | XGA–WUXGA | |
| Supported video signal | NTSC/PAL/SECAM, 480p/i, 720p, 1080p/i | |
| Brightness*2 | 3,300 lm (Lamp power: Normal) | |
| Lamp | 230 W x 1 lamp | |
| Lamp replacement cycle*4 | Normal: 5,000 hours, Eco1: 6,000 hours, Eco2: 10,000 hours | |
| Contrast*2 | 16,000:1 (all white/all black, Iris: On, Image Mode: Dynamic, Lamp Control: Normal) | |
| Keystone correction range | Vertical: ± 30 ° (Auto, Manual), Horizontal: ± 15 ° (Manual) | |
| Installation | Ceiling/floor, front/rear | |
| Operation noise*2 | Normal: 37 dB, Eco1: 33 dB, Eco2: 28 dB | |
| Cabinet materials | Molded plastic (PC) | |
| Dimensions (W x H x D) | 335 x 96 *5 x 252 mm (13 3/16˝ x 3 25/32˝ *6 x 9 29/32˝) | |
| Weight | Approx. 2.9 kg (6.4 lbs) | |
| Operating environment | Operating temperature: 5–40 °C (41–104 °F) [Altitude: below 1,400 m (4,593 ft), High Land Mode: OFF]; 5–35 °C (41–95 °F) [Altitude: 1,400–2,700 m (4,593–8,858 ft), High Land Mode: On1]; 5–30 °C (41–86 °F) [Altitude: 2,700–3,000 m (8,858–9,843 ft), High Land Mode: On2], Operating humidity: 20–80 % (no condensation) | |
| Supplied accessories | Wireless remote control unit, Power cord (Number and size of cords depends on region), CD-ROM (Instruction manual, Multi Monitoring Control Software*6), Instruction manual (Basic guide), Batteries for remote control (R03/LR03/AAA type battery x 2), RGB signal cable | |
TerminalsPT-LB353 |
|
|
No datasheet available.
