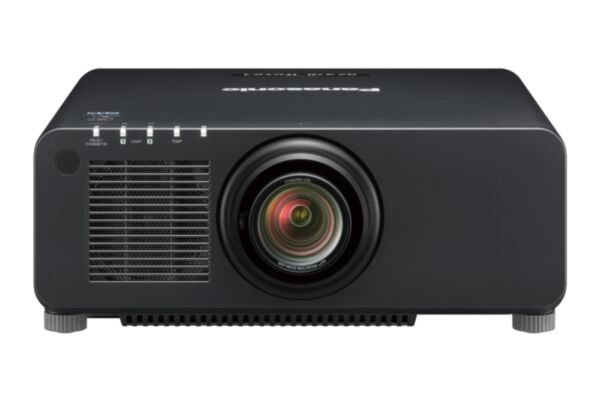

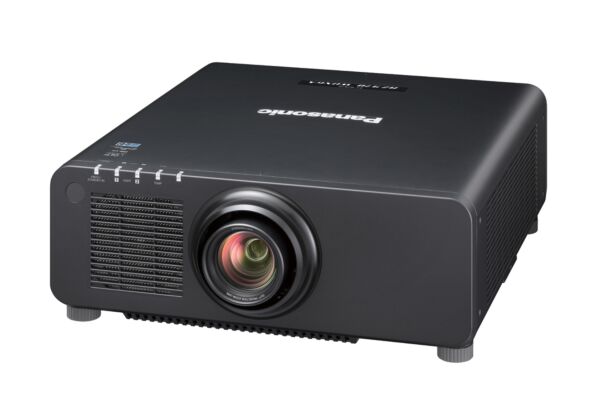

Panasonic Installation Projector Series PT-RZ970 / PT-RW930 / PT-RX110
- SKU: PT-RZ970 / PT-RW930 / PT-RX110
Actual Stock Can Be Confirmed After Placing the Order.
Specification PT-RZ970/RZ970L PT-RW930/RW930L Power supply 100–240 V AC, 10.4–5.0 A, 50/60 Hz 100–240 V AC, 10.4–5.0 A, 50/60 Hz Power consumption*1 1,050 W (0.3 W with Standby Mode set to Eco, 3 W with Standby Mode set to Normal, 85 W with Quick Startup... See More
EMAIL
info@procure.ae
TELEPHONE
(+971) 454 65041
WHATSAPP
(+971) 454 65041
FREE SHIPPING
All orders over AED1999/-
Specification
|
|
|
|
|---|---|---|
| Power supply | 100–240 V AC, 10.4–5.0 A, 50/60 Hz | 100–240 V AC, 10.4–5.0 A, 50/60 Hz |
| Power consumption*1 | 1,050 W (0.3 W with Standby Mode set to Eco, 3 W with Standby Mode set to Normal, 85 W with Quick Startup set to ON); 742 W (Normal Mode), 617 W (Eco Mode), 410–588 W (Long Life 1 Mode), 375–588 W (Long Life 2 Mode), 349–588 W (Long Life 3 Mode), 82 W (Shutter Mode) | 1,050 W (0.3 W with Standby Mode set to Eco, 3 W with Standby Mode set to Normal, 85 W with Quick Startup set to ON); 742 W (Normal Mode), 617 W (Eco Mode), 410–588 W (Long Life 1 Mode), 375–588 W (Long Life 2 Mode), 349–588 W (Long Life 3 Mode), 82 W (Shutter Mode) |
| DLP™ chip | ||
| Panel size | 17.0 mm (0.67˝) diagonal (16:10 aspect ratio) | 16.5 mm (0.65˝) diagonal (16:10 aspect ratio) |
| Display method | DLP™ chip x 1, DLP™ projection system | DLP™ chip x 1, DLP™ projection system |
| Pixels | 2,304,000 (1920 x 1200) pixels | 1,024,000 (1280 x 800) pixels |
| Lens | ||
| PT-RZ970/RW930 | Powered zoom (throw ratio 1.7-2.4:1), powered focus, F 1.7-1.9, f 25.6-35.7 mm | Powered zoom (throw ratio 1.8-2.5:1), powered focus, F 1.7-1.9, f 25.6-35.7 mm |
| PT-RZ970L/RW930L | Optional powered zoom/focus and fixed-focus lens | Optional powered zoom/focus and fixed-focus lens |
| Light source | Laser diodes (Class 1) (Class 3R for US models), light source life*2: 20,000 hours (Normal Mode*) / 24,000 hours (Eco Mode). At this time, brightness will have decreased to approximately half its original level [Operating temperature: 30 °C (86 °F), altitude: 700 m (2,297 ft), dust density 0.15 mg/m3, Dynamic Contrast Mode: 3] *Includes Quiet 1/Quiet 2 Mode. |
Laser diodes (Class 1) (Class 3R for US models), light source life*2: 20,000 hours (Normal Mode*) / 24,000 hours (Eco Mode). At this time, brightness will have decreased to approximately half its original level [Operating temperature: 30 °C (86 °F), altitude: 700 m (2,297 ft), dust density 0.15 mg/m3, Dynamic Contrast Mode: 3] *Includes Quiet 1/Quiet 2 Mode. |
| Screen size (diagonal) | 1.27–15.24 m (50–600˝), 1.27–5.08 m (50–200˝) with ET-DLE055, 2.54–8.89 m (100–350˝) with ET-DLE030, 16:10 aspect ratio | 1.27–15.24 m (50–600˝), 1.27–5.08 m (50–200˝) with ET-DLE055, 2.54–8.89 m (100–350˝) with ET-DLE030, 16:10 aspect ratio |
| Brightness | 10,000 lm (Center)*3 / 9,400 lm*2 / 8,000 lm (Quiet 1)*2 / 6,000 lm (Quiet 2)*2 | 10,000 lm (Center)*3 / 9,400 lm*2 / 8,000 lm (Quiet 1)*2 / 6,000 lm (Quiet 2)*2 |
| Contrast*2 | 10,000:1 (Full On/Full Off, Dynamic Contrast Mode: 3) | 10,000:1 (Full On/Full Off, Dynamic Contrast Mode: 3) |
| Resolution | 1920 x 1200 pixels | 1280 x 800 pixels (Input signals that exceed supported resolution will be converted.) |
| Supported RGB signal | XGA–WUXGA | XGA–WUXGA |
| Supported video signal | NTSC/PAL/SECAM, 480p/i, 720p, 1080p/i | NTSC/PAL/SECAM, 480p/i, 720p, 1080p/i |
| Keystone correction range*4 | Vertical: ±40 ° (±22 ° with ET-DLE085/DLE055, +5 ° with ET-DLE030), horizontal: ±15 ° (cannot be operated with ET-DLE030) | Vertical: ±40 ° (±22 ° with ET-DLE085/DLE055, +5 ° with ET-DLE030), horizontal: ±15 ° (cannot be operated with ET-DLE030) |
| Keystone correction range with optional Upgrade Kit ET-UK20*4 | Vertical: ±45° (±40° with ET-DLE150/ET-DLE250/supplied lens [DLE170], ±22° with ET-DLE085/ET-DLE055), horizontal: ±40° (±15° with ET-DLE085/ET-DLE055), Up to a total of ±55 ° during simultaneous horizontal and vertical correction. | – |
| Installation | Ceiling/floor, front /rear, free 360-degree installation | Ceiling/floor, front /rear, free 360-degree installation |
| Cabinet materials | Molded plastic | Molded plastic |
| Dimensions (W x H x D) | ||
| PT-RZ970/RW930 | 498 x 200*5 x 581 mm (19 19/32˝ x 7 7/8˝*5 x 22 7/8˝) (with supplied lens [DLE170]) | 498 x 200*5 x 581 mm (19 19/32˝ x 7 7/8˝*5 x 22 7/8˝) (with supplied lens [DLE170]) |
| PT-RZ970L/RW930L | 498 x 200*5 x 538 mm (19 19/32˝ x 7 7/8˝*5 x 21 3/16˝) (without lens) | 498 x 200*5 x 538 mm (19 19/32˝ x 7 7/8˝*5 x 21 3/16˝) (without lens) |
| Weight*6 | ||
| PT-RZ970/RW930 | Approximately 23.2 kg (51.1 lbs) (with supplied lens [DLE170]) | Approximately 23.2 kg (51.1 lbs) (with supplied lens [DLE170]) |
| PT-RZ970L/RW930L | Approximately 22.4 kg (49.4 lbs) (without lens) | Approximately 22.4 kg (49.4 lbs) (without lens) |
| Operation noise*2 | 41 dB (37 dB [Quiet1] / 35 dB [Quiet2]) | 41 dB (37 dB [Quiet1] / 35 dB [Quiet2]) |
| Operating environment | Operating temperature: 0–45 °C (32–113 °F)*7, operating humidity: 10–80 % (no condensation) |
Operating temperature: 0–45 °C (32–113 °F)*7, operating humidity: 10–80 % (no condensation) |
| Applicable software | Logo Transfer Software, Multi Monitoring Control Software, Early Warning Software, Geometry Manager Pro*8 (ET-UK20 Upgrade Kit*9 and ET-CUK10 Auto Screen Adjustment Kit*10) | Logo Transfer Software, Multi Monitoring Control Software, Early Warning Software |

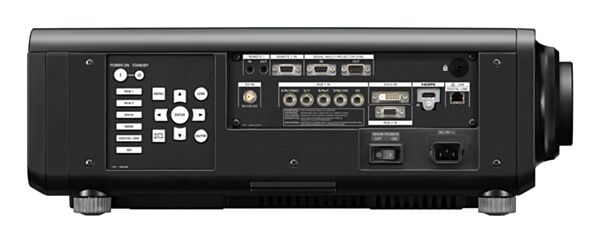

TerminalsPT-RZ970/
|
 |
|
PT-RW930/
|
 |
|
|
|
|
|---|---|
| Power supply | 100–240 V AC, 10.4–5.0 A, 50/60 Hz |
| Power consumption*1 | 1,050 W (0.3 W with Standby Mode set to Eco, 3 W with Standby Mode set to Normal, 85 W with Quick Startup set to ON); 742 W (Normal Mode), 617 W (Eco Mode), 410–588 W (Long Life 1 Mode), 375–588 W (Long Life 2 Mode), 349–588 W (Long Life 3 Mode), 82 W (Shutter Mode) |
| DLP™ chip | |
| Panel size | 17.8 mm (0.7˝) diagonal (4:3 aspect ratio) |
| Display method | DLP™ chip x 1, DLP™ projection system |
| Pixels | 786,432 (1024 x 768) pixels |
| Lens | |
| PT-RX110 | Powered zoom (throw ratio 1.8–2.4:1), powered focus, F 1.7–1.9, f 25.6–35.7 mm |
| PT-RX110L | Optional powered zoom/focus and fixed-focus lens |
| Light source | Laser diodes (Class 1) (Class 3R for US models), light source life*2: 20,000 hours (Normal Mode*) / 24,000 hours (Eco Mode). At this time, brightness will have decreased to approximately half its original level [Operating temperature: 30 °C (86 °F), altitude: 700 m (2,297 ft), dust density 0.15 mg/m3, Dynamic Contrast Mode: 3] *Includes Quiet 1/Quiet 2 Mode. |
| Screen size (diagonal) | 1.27–15.24 m (50–600˝), 1.27–5.08 m (50–200˝) with ET-DLE055, 2.54–8.89 m (100–350˝) with ET-DLE030, 4:3 aspect ratio |
| Brightness | 10,400 lm (Center)*3 / 10,000 lm*2 / 8,500 lm (Quiet 1)*2 / 6,400 lm (Quiet 2)*2 |
| Contrast*2 | 10,000:1 (Full On/Full Off, Dynamic Contrast Mode: 3) |
| Resolution | 1024 x 768 pixels (Input signals that exceed supported resolution will be converted.) |
| Supported RGB signal | XGA~WUXGA |
| Supported video signal | NTSC/PAL/SECAM, 480p/i, 720p, 1080p/i |
| Keystone correction range*4 | Vertical: ±40 ° (±30 ° with ET-DLE085/DLE055, +5 ° with ET-DLE030), horizontal: ±15 ° (cannot be operated with ET-DLE030) |
| Keystone correction range with optional Upgrade Kit ET-UK20*4 | – |
| Installation | Ceiling/floor, front /rear, free 360-degree installation |
| Cabinet materials | Molded plastic |
| Dimensions (W x H x D) | |
| PT-RX110 | 498 x 200*5 x 581 mm (19 19/32˝ x 7 7/8˝*5 x 22 7/8˝) (with supplied lens [DLE170]) |
| PT-RX110L | 498 x 200*5 x 538 mm (19 19/32˝ x 7 7/8˝*5 x 21 3/16˝) (without lens) |
| Weight*6 | |
| PT-RX110 | Approximately 23.2 kg (51.1 lbs) (with supplied lens [DLE170]) |
| PT-RX110L | Approximately 22.4 kg (49.4 lbs) (without lens) |
| Operation noise*2 | 41 dB (37 dB [Quiet1] / 35 dB [Quiet2]) |
| Operating environment | Operating temperature: 0–45 °C (32–113 °F)*7, operating humidity: 10–80 % (no condensation) |
| Applicable software | Logo Transfer Software, Multi Monitoring Control Software, Early Warning Software |
TerminalsPT-RX110/
|
|
No datasheet available.
