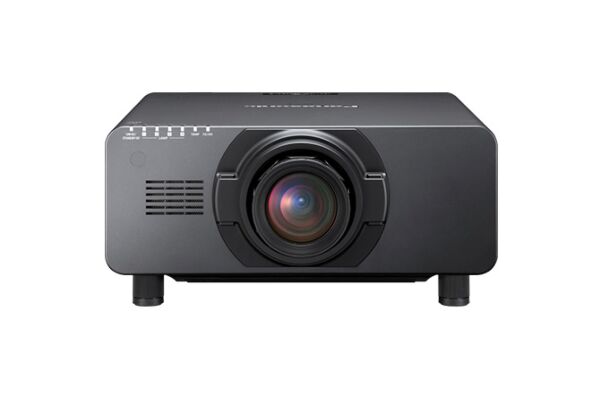

Panasonic Large-Venue Projector Series PT-DZ21K /DS20K /DW17K
- SKU: PT-DZ21K /DS20K /DW17K
Actual Stock Can Be Confirmed After Placing the Order.
Specification Model PT-DZ21K PT-DS20K PT-DW17K Power supply 200–240 V AC, 50/60 Hz (Max current requirements: 12 A @200 V) Power consumption 2,300 W (0.3 W with STANDBY MODE set to ECO,*1 9 Wwith STANDBY MODE set to NORMAL.) Dissipation BTU Max. 7,848 BTU/hour (without... See More
EMAIL
info@procure.ae
TELEPHONE
(+971) 454 65041
WHATSAPP
(+971) 454 65041
FREE SHIPPING
All orders over AED1999/-
Specification
Model |
PT-DZ21K |
PT-DS20K |
PT-DW17K |
||
|---|---|---|---|---|---|
| Power supply | 200–240 V AC, 50/60 Hz (Max current requirements: 12 A @200 V) | ||||
| Power consumption | 2,300 W (0.3 W with STANDBY MODE set to ECO,*1 9 W with STANDBY MODE set to NORMAL.) |
||||
| Dissipation BTU | Max. 7,848 BTU/hour (without light output: 7,585 BTU/hour) | ||||
| DLP™ chip | Panel size | 24.4 mm (0.96 inches) diagonal (16:10 aspect ratio) |
24.1 mm (0.95 inches) diagonal (4:3 aspect ratio) |
21.6 mm (0.85 inches) diagonal (16:9 aspect ratio) |
|
| Display method | DLP™ chip x 3, DLP™ projection system | ||||
| Pixels | 2,304,000 (1,920 x 1,200) x 3, total of 6,912,000 pixels |
1,470,000 (1,400 x 1,050) x 3, total of 4,410,000 pixels |
1,049,088 (1,366 x 768) x 3, total of 3,147,264 pixels |
||
| Lens | Optional powered zoom and fixed-focus lenses | ||||
| Lamp | 465 W UHM lamp x 4, replacement cycle of up to 2,000 hours*2 | ||||
| Screen size (diagonal) | 1.78-25.4 m (70-1,000 inches), 1.78–15.24 m (70–600 inches) with the ET-D75LE8, 16:10 aspect ratio |
1.78-25.4 m (70-1,000 inches), 1.78–15.24 m (70–600 inches) with the ET-D75LE8, 4:3 aspect ratio |
1.78-25.4 m (70-1,000 inches), 1.78–15.24 m (70–600 inches) with the ET-D75LE8, 16:9 aspect ratio |
||
| Brightness*3 | 20,000 lm (four-lamp) |
17,000 lm (four-lamp) |
|||
| Center-to-corner uniformity*3 | 90% | ||||
| Contrast*3 | 10,000:1 (full on/off, with dynamic iris set to “3” ) | ||||
| Resolution | 1,920 x 1,200 pixels | 1,400 x 1,050 pixels (Input signals that exceed this resolution will be converted to 1,400 x 1,050 pixels.) |
1,366 x 768 pixels (Input signals that exceed this resolution will be converted to 1,366 x 768 pixels.) |
||
| Scanning frequency | SDI | SD-SDI | SMPTE ST 259 compliant, [YCBCR 4:2:2 10-bit] 480i, 576i | - | |
| HD-SDI | SMPTE ST 292 compliant, [YCBCR 4:2:2 10-bit] 720/50p, 720/60p, 1035/60i, 1080/50i, 1080/60i, 1080/25p, 1080/24p, 1080/24sF, 1080/30p |
- | |||
| Dual-link HD-SDI | SMPTE ST 372 compliant, [RGB 4:4:4 12-bit /10-bit] 1080/50i, 1080/60i, 1080/25p, 1080/24p, 1080/24sF, 1080/30p, [X´Y´Z´ 4:4:4 12-bit] 2,048 x 1,080/24p, 2,048 x 1,080/24sF |
- | |||
| 3G-SDI | SMPTE ST 424 compliant, [YPBPR 4:2:2 10-bit] 1080/50p, 1080/60p, [RGB 4:4:4 12-bit /10-bit]1080/50i, 1080/60i, 1080/25p, 1080/24p, 1080/24sF, 1080/30p |
- | |||
| HDMI/DVI-D | 480p, 576p, 720/60p, 720/50p, 1080/60i, 1080/50i, 1080/24p, 1080/24sF, 1080/25p, 1080/30p, 1080/60p, 1080/50p, VGA (640 x 480)–WUXGA*4 (1,920 x 1,200), compatible with non-interlaced signals only, dot clock: 25–162 MHz |
||||
| RGB | fH: 15–100 kHz, fV: 24–120 Hz, dot clock: 20–162 MHz | ||||
| YPBPR (YCBCR) |
fH: 15.75 kHz, fV: 60 Hz [480i (525i)]
fH: 15.63 kHz, fV: 50 Hz [576i (625i)] fH: 45.00 kHz, fV: 60 Hz [720 (750)/60p] fH: 33.75 kHz, fV: 60 Hz [1035/60i] fH: 28.13 kHz, fV: 50 Hz [1080 (1125)/50i] fH: 27.00 kHz, fV: 24 Hz [1080/24p] fH: 33.75 kHz, fV: 30 Hz [1080/30p] fH: 56.25 kHz, fV: 50 Hz [1080/50p] fH: 31.50 kHz, fV: 60 Hz [480p (525p)]
fH: 31.25 kHz, fV: 50 Hz [576p (625p)] fH: 37.50 kHz, fV: 50 Hz [720 (750)/50p] fH: 33.75 kHz, fV: 60 Hz [1080 (1125)/60i] fH: 28.13 kHz, fV: 25 Hz [1080/25p] fH: 27.00 kHz, fV: 48 Hz [1080/24sF] fH: 67.50 kHz, fV: 60 Hz [1080/60p] |
||||
| Video/Y/C | fH: 15.75 kHz, fV: 60 Hz [NTSC/NTSC4.43/PAL-M/PAL60], fH: 15.63 kHz, fV: 50 Hz [PAL/PAL-N/SECAM] |
||||
| Optical axis shift*5 | Vertical | ±55 % (±44 % with the ET-D75LE6) from center of screen (powered) |
±50 % (±40 % with the ET-D75LE6) from center of screen (powered) |
±70 % (±60 % with the ET-D75LE6) from center of screen (powered) |
|
| Horizontal | ±20 % (±15 % with the ET-D75LE6) from center of screen (powered) |
±30 % (±20 % with the ET-D75LE6) from center of screen (powered) |
|||
| Keystone correction range | Vertical: ±40°*6, horizontal: ±15° | Vertical: ±40°*6 | |||
| Keystone correction range with optional Upgrade Kit |
Vertical: ±45°*6*8, horizontal: ±40°*7*8 | - | |||
| Installation | Ceiling/floor, front /rear | ||||

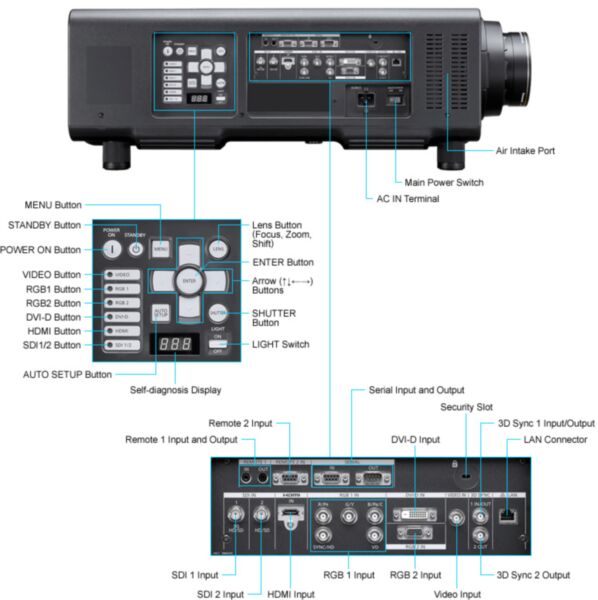

| Terminals | SDI 1 IN | BNC x 1 (3G/HD/SD-SDI) | - | ||
| SDI 2 IN | BNC x 1 (HD/SD-SDI) | - | |||
| 3D SYNC IN/OUT | BNC x 1 (3D timing signal) | - | |||
| 3D SYNC OUT | BNC x 1 (3D timing signal) | - | |||
| DVI-D IN | DVI-D 24-pin x 1 (DVI 1.0 compliant, compatible with HDCP, compatible with single link only) |
||||
| HDMI IN | HDMI 19-pin x 1 (Deep Color, compatible with HDCP) | ||||
| RGB 1 IN | BNC x 5 (RGB/YPBPR/YCBCR/YC x 1) | ||||
| RGB 2 IN | D-Sub HD 15-pin (female) x 1 (RGB/YPBPR/YCBCR x 1) | ||||
| VIDEO IN | BNC x 1 (composite video) | ||||
| SERIAL IN | D-sub 9-pin (female) x 1 for external control (RS-232C compliant) | ||||
| SERIAL OUT | D-sub 9-pin (male) x 1 for link control (RS-232C compliant) | ||||
| REMOTE 1 IN | M3 x 1 for wired remote control | ||||
| REMOTE 1 OUT | M3 x 1 for link control (for wired remote control) | ||||
| REMOTE 2 IN | D-sub 9-pin (female) x 1 for external control (parallel) | ||||
| LAN | RJ-45 x 1 (for network connection, 10Base-T/100Base-TX, compliant with PJLink™) | ||||
| Cabinet materials | Molded plastic | ||||
| Dimensions (W x H x D) | 620 x 291*9 x 800 mm (24-7/16" x 11-15/32"*9 x 31-1/2") (optional lens not included) | ||||
| Weight*10 | Approximately 43 kg (94.8 lbs) (optional lens not included) | ||||
| Shipping dimensions (W x H x D) |
PT-DZ21KU / DS20KU / DW17KU PT-DZ21KEJ / DS20KEJ / DW17KEJ |
965 x 418 x 865 mm (38" x 16-15/32" x 34-1/16") | |||
| PT-DZ21KE / DS20KE / DW17KE | 946 x 402 x 846 mm (38" x 15-13/16" x 33-5/16") | ||||
| Shipping weight | PT-DZ21KU / DS20KU / DW17KU | 53 kg (116.8 lbs) | |||
| PT-DZ21KEJ / DS20KEJ / DW17KEJ | 54 kg (119.0 lbs) | ||||
| PT-DZ21KE / DS20KE / DW17KE | 51 kg (112.4 lbs) | ||||
| Operation noise*3 | 49 dB (quad lamp operation) | ||||
| Operating environment | Operating temperature: 0–45°C (32–113°F)*11, operating humidity: 10– 80 % (no condensation) |
||||
| Applicable software | Logo Transfer Software, Multi Projector Monitoring & Control Software, Geometry Manager Pro (included in the ET-UK20) |
Logo Transfer Software, Multi Projector Monitoring & Control Software |
|||
| Supplied accessories | Power cord with secure lock, wireless/wired remote control unit, batteries (R6/AA type x 2) |
||||
