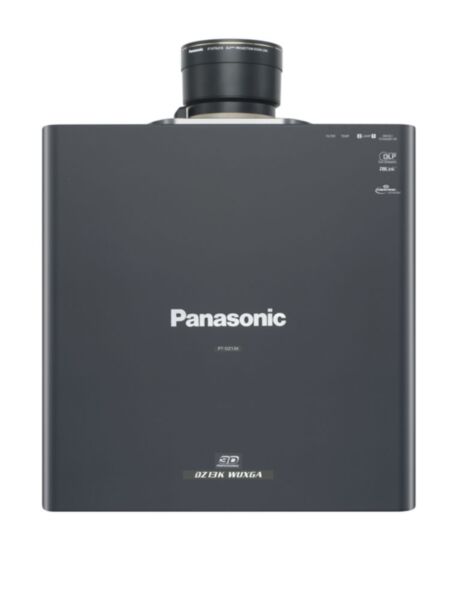

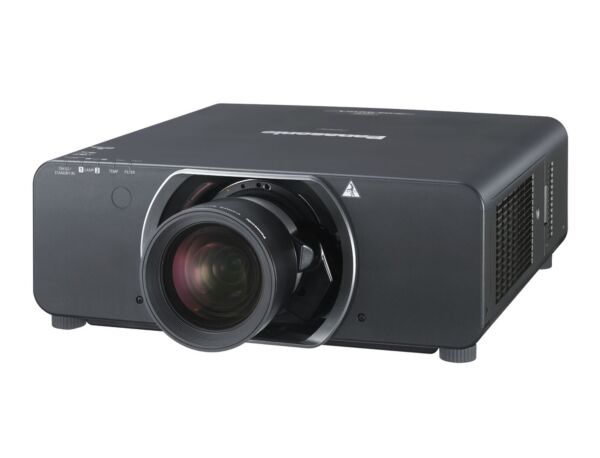

Panasonic Large-Venue Projector Series PT-DZ13K / PT-DS12K
- SKU: PT-DZ13K / PT-DS12K
Actual Stock Can Be Confirmed After Placing the Order.
Specification PT-DZ13K / PT-DS12K Model PT-DZ13K PT-DS12K Power supply 120 V, 220-240 V AC, 50/60 Hz Power consumption 120 V AC 1,000 W (1,030 VA) 980 W (1,010 VA) (0.2 W with standby mode set to eco.*16 W with standby mode set to normal.... See More
EMAIL
info@procure.ae
TELEPHONE
(+971) 454 65041
WHATSAPP
(+971) 454 65041
FREE SHIPPING
All orders over AED1999/-
Specification
PT-DZ13K / PT-DS12K
Model |
PT-DZ13K |
PT-DS12K |
||
|---|---|---|---|---|
| Power supply | 120 V, 220-240 V AC, 50/60 Hz | |||
| Power consumption | 120 V AC | 1,000 W (1,030 VA) | 980 W (1,010 VA) | |
| (0.2 W with standby mode set to eco.*1 6 W with standby mode set to normal. Both with fan stopped.) |
||||
| 220-240 V AC | 970 W (1,020 VA) | 950 W (980 VA) | ||
| (0.3 W with standby mode set to eco.*1 9 W with standby mode set to normal. Both with fan stopped.) |
||||
| Dissipation BTU | 120 V: 3,413 BTU/hour (without light output: 3,249 BTU/hour). 220–240 V: 3,311 BTU/hour (without light output: 3,147 BTU/hour) |
120 V: 3,345 BTU/hour (without light output: 3,181 BTU/hour). 220–240 V: 3,242 BTU/hour (without light output: 3,079 BTU/hour) |
||
| DLP™ chip | Panel size | 24.4 mm (0.96 in) diagonal (16:10 aspect ratio) |
24.1 mm (0.95 in) diagonal (4:3 aspect ratio) |
|
| Display method | DLP™ chip x 3, DLP™ projection system | |||
| Pixels | 2,304,000 (1,920 x 1,200) x 3, total of 6,912,000 pixels |
1,470,000 (1,400 x 1,050) x 3, total of 4,410,000 pixels |
||
| Lens | Optional powered zoom/focus and fixed-focus lenses | |||
| Lamp | 380 W UHM lamps (HIGH mode) x 2 | |||
| Screen size (diagonal) | 1.78 –25.4 m (70–1,000 in), 1.78 –15.24 m (70–600 in) with the ET-D75LE8, 16:10 aspect ratio |
1.78 –25.4 m (70–1,000 in), 1.78 –15.24 m (70–600 in) with the ET-D75LE8, 4:3 aspect ratio |
||
| Brightness*2 | 12,000 lm*3 (dual-lamp) | |||
| Center-to-corner uniformity*2 | 90 % | |||
| Contrast*2 | 10,000:1 (full on/off, with DYNAMIC IRIS set to "3") | |||
| Resolution | 1,920 x 1,200 pixels (Input signals that exceed this resolution will be converted to 1,920 x 1,200 pixels.) |
1,400 x 1,050 pixels (Input signals that exceed this resolution will be converted to 1,400 x 1,050 pixels.) |
||
| Scanning frequency | SDI | Dual-link HD-SDI |
SMPTE ST 372 compliant, [RGB 4:4:4 12-bit /10-bit] 1080/50i, 1080/60i, 1080/25p, 1080/24p, 1080/24sF, 1080/30p, [X´Y´Z´ 4:4:4 12-bit] 2,048 x 1,080/24p, 2,048 x 1,080/24sF |
|
| 3G-SDI | SMPTE ST 424 compliant, [RGB 4:4:4 12-bit /10-bit] 1080/50i, 1080/60i, 1080/25p, 1080/24p, 1080/24sF, 1080/30p [YPBPR 4:2:2 10-bit] 1080/50p, 1080/60p, |
|||
| HD-SDI | SMPTE ST 292 compliant, [YCBCR 4:2:2 10-bit] 720/50p, 720/60p, 1035/60i, 1080/50i, 1080/60i, 1080/25p, 1080/24p, 1080/24sF, 1080/30p |
|||
| SD-SDI | SMPTE ST 259 compliant, [YCBCR 4:2:2 10-bit] 480i, 576i | |||
| HDMI/DVI-D | 480p, 576p, 720/60p, 720/50p, 1080/60i, 1080/50i, 1080/24p, 1080/24sF, 1080/25p, 1080/30p, 1080/60p, 1080/50p, VGA (640 x 480)–WUXGA*4 (1,920 x 1,200), compatible with non-interlaced signals only, dot clock: 25–162 MHz |
|||
| RGB | fH: 15–100 kHz, fV: 24–120 Hz, dot clock: 20–162 MHz | |||
| YPBPR(YCBCR) |
fH: 15.75 kHz, fV: 60 Hz [480i(525i)]
fH: 15.63 kHz, fV: 50 Hz [576i(625i)] fH: 45.00 kHz, fV: 60 Hz [720(750)/60p] fH: 33.75 kHz, fV: 60 Hz [1035/60i] fH: 28.13 kHz, fV: 50 Hz [1080(1125)/50i] fH: 27.00 kHz, fV: 24 Hz [1080/24p] fH: 33.75 kHz, fV: 30 Hz [1080/30p] fH: 56.25 kHz, fV: 50 Hz [1080/50p] fH: 31.50 kHz, fV: 60 Hz [480p(525p)]
fH: 31.25 kHz, fV: 50 Hz [576p(625p)] fH: 37.50 kHz, fV: 50 Hz [720(750)/50p] fH: 33.75 kHz, fV: 60 Hz [1080(1125)/60i] fH: 28.13 kHz, fV: 25 Hz [1080/25p] fH: 27.00 kHz, fV: 48 Hz [1080/24sF] fH: 67.50 kHz, fV: 60 Hz [1080/60p] |
|||
| Video/Y/C | fH: 15.75 kHz, fV: 60 Hz [NTSC/NTSC4.43/PAL-M/PAL60], fH: 15.63 kHz, fV: 50 Hz [PAL/PAL-N/SECAM] |
|||
| Optical axis shift*5 | Vertical | ±55 % (±44 % with the ET-D75LE6) from center of screen (powered) |
±50 % (±40 % with the ET-D75LE6) from center of screen (powered) |
|
| Horizontal | ±20 % (±15 % with the ET-D75LE6) from center of screen (powered) |
±30 % (±20 % with the ET-D75LE6) from center of screen (powered) |
||
| Keystone correction range | Vertical: ±40°*6, horizontal: ±15° | |||
| Keystone correction range with optional Upgrade Kit ET-UK20 |
Vertical ±40° and horizontal ±40° with the ET-D75LE1/LE2/LE10/LE20, vertical ±45° and horizontal ±40° with the ET-D75LE3/LE4/LE30/LE40, vertical ±22° and horizontal ±15° with the ET-D75LE5/LE50, vertical ±28° and horizontal ±15° with the ET-D75LE6 |
|||
| Installation | Ceiling/floor, front /rear, portrait*7 | |||

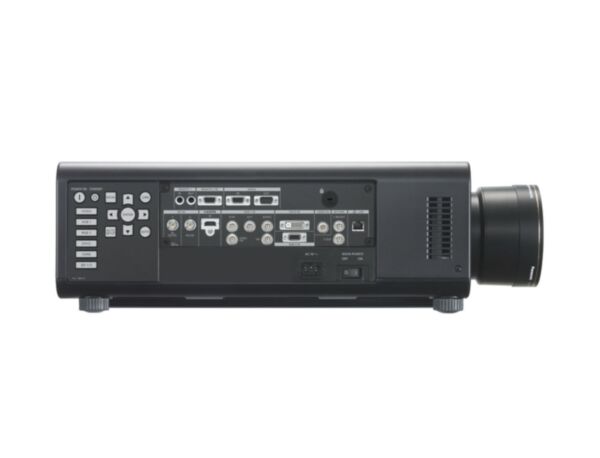

| Terminals | SDI 1 IN | BNC x 1 (3G/HD/SD-SDI) | ||
| SDI 2 IN | BNC x 1 (HD/SD-SDI) | |||
| 3D SYNC IN/OUT | BNC x 1 (3D timing signal) | |||
| 3D SYNC OUT | BNC x 1 (3D timing signal) | |||
| DVI-D IN | DVI-D 24-pin x 1 (DVI 1.0 compliant, compatible with HDCP, compatible with single link only) | |||
| HDMI IN | HDMI 19-pin x 1 (Deep Color, compatible with HDCP) | |||
| RGB 1 IN | BNC x 5 (RGB/YPBPR/YCBCR/YC x 1) | |||
| RGB 2 IN | D-Sub HD 15-pin (female) x 1 (RGB/YPBPR/YCBCR x 1) | |||
| VIDEO IN | BNC x 1 (composite video) | |||
| SERIAL IN | D-sub 9-pin (female) x 1 for external control (RS-232C compliant) | |||
| SERIAL OUT | D-sub 9-pin (male) x 1 for link control | |||
| REMOTE 1 IN | M3 x 1 for wired remote control | |||
| REMOTE 1 OUT | M3 x 1 for link control (for wired remote control) | |||
| REMOTE 2 IN | D-sub 9-pin (female) x 1 for external control (parallel) | |||
| LAN | RJ-45 x 1 (for network connection, 10Base-T/100Base-TX, compliant with PJLink™) | |||
| Cabinet materials | Molded plastic | |||
| Dimensions (W x H x D) | 530 x 200*8 x 548.5 mm (20-7/8 x 7-7/8*8 x 21-19/32 in) (optional lens not included) | |||
| Weight*9 | Approximately 24 kg (52.9 lbs) (optional lens not included) | |||
| Operation noise*2 | 45 dB (dual lamp operation with lamp HIGH mode), 43 dB (dual lamp operation with lamp MIDDLE mode), 37 dB (dual lamp operation with lamp ECO mode) |
|||
| Operating environment | Operating temperature: 0–45°C (32–113°F)*10, operating humidity: 10–80 % (no condensation) |
|||
| Applicable software | Logo Transfer Software, Multi Projector Monitoring & Control Software, Geometry Manager Pro (included in the ET-UK20) |
|||
| Supplied accessories | Power cord with secure lock, wireless/wired remote control unit, batteries (R6/AA type x 2) | |||
PT-DW11K / PT-DZ10K
Model |
PT-DW11K |
PT-DZ10K |
||
|---|---|---|---|---|
| Power supply | 120 V, 220-240 V AC, 50/60 Hz | |||
| Power consumption | 120 V AC | 980 W (1,010 VA) | 925 W (1,010 VA) | |
| (0.2 W with standby mode set to eco.*1 6 W with standby mode set to normal. Both with fan stopped.) |
||||
| 220-240 V AC | 950 W (980 VA) | 900 W (980 VA) | ||
| (0.3 W with standby mode set to eco.*1 9 W with standby mode set to normal. Both with fan stopped.) |
||||
| Dissipation BTU | 120 V: 3,345 BTU/hour (without light output: 3,195 BTU/hour). 220–240 V: 3,242 BTU/hour (without light output: 3,092 BTU/hour) |
120 V: 3,157 BTU/hour (without light output: 3,012 BTU/hour). 220–240 V: 3,072 BTU/hour (without light output: 2,927 BTU/hour) |
||
| DLP™ chip | Panel size | 21.6 mm (0.85 in) diagonal (16:9 aspect ratio) |
24.4 mm (0.96 in) diagonal (16:10 aspect ratio) |
|
| Display method | DLP™ chip x 3, DLP™ projection system | |||
| Pixels | 1,049,088 (1,366 x 768) x 3, total of 3,147,264 pixels |
2,304,000 (1,920 x 1,200) x 3, total of 6,912,000 pixels |
||
| Lens | Optional powered zoom/focus and fixed-focus lenses | |||
| Lamp | 380 W UHM lamps (HIGH mode) x 2 | 355 W UHM lamps (NORMAL mode) x 2 | ||
| Screen size (diagonal) | 1.78 –25.4 m (70–1,000 in), 1.78 –15.24 m (70–600 in) with the ET-D75LE8, 16:9 aspect ratio |
1.78 –25.4 m (70–1,000 in), 1.78 –15.24 m (70–600 in) with the ET-D75LE8, 16:10 aspect ratio |
||
| Brightness*2 | 11,000 lm*3 (dual-lamp) | 10,600 lm (dual-lamp) | ||
| Center-to-corner uniformity*2 | 90 % | |||
| Contrast*2 | 10,000:1 (full on/off, with DYNAMIC IRIS set to "3") | |||
| Resolution | 1,366 x 768 pixels (Input signals that exceed this resolution will be converted to 1,366 x 768 pixels.) |
1,920 x 1,200 pixels | ||
| Scanning frequency | SDI | 3G-SDI | - | SMPTE ST 424 compliant, [RGB 4:4:4 12-bit /10-bit] 1080/50i, 1080/60i, 1080/25p, 1080/24p, 1080/24sF, 1080/30p [YPBPR 4:2:2 10-bit] 1080/50p, 1080/60p, |
| HD-SDI | - | SMPTE ST 292 compliant, [YCBCR 4:2:2 10-bit] 720/50p, 720/60p, 1035/60i, 1080/50i, 1080/60i, 1080/25p, 1080/24p, 1080/24sF, 1080/30p |
||
| SD-SDI | - | SMPTE ST 259 compliant, [YCBCR 4:2:2 10-bit] 480i, 576i |
||
| HDMI/DVI-D | 480p, 576p, 720/60p, 720/50p, 1080/60i, 1080/50i, 1080/24p, 1080/24sF, 1080/25p, 1080/30p, 1080/60p, 1080/50p, VGA (640 x 480)–WUXGA*4 (1,920 x 1,200), compatible with non-interlaced signals only, dot clock: 25–162 MHz |
|||
| RGB | fH: 15–100 kHz, fV: 24–120 Hz, dot clock: 20–162 MHz | |||
| YPBPR(YCBCR) |
fH: 15.75 kHz, fV: 60 Hz [480i(525i)]
fH: 15.63 kHz, fV: 50 Hz [576i(625i)] fH: 45.00 kHz, fV: 60 Hz [720(750)/60p] fH: 33.75 kHz, fV: 60 Hz [1035/60i] fH: 28.13 kHz, fV: 50 Hz [1080(1125)/50i] fH: 27.00 kHz, fV: 24 Hz [1080/24p] fH: 33.75 kHz, fV: 30 Hz [1080/30p] fH: 56.25 kHz, fV: 50 Hz [1080/50p] fH: 31.50 kHz, fV: 60 Hz [480p(525p)]
fH: 31.25 kHz, fV: 50 Hz [576p(625p)] fH: 37.50 kHz, fV: 50 Hz [720(750)/50p] fH: 33.75 kHz, fV: 60 Hz [1080(1125)/60i] fH: 28.13 kHz, fV: 25 Hz [1080/25p] fH: 27.00 kHz, fV: 48 Hz [1080/24sF] fH: 67.50 kHz, fV: 60 Hz [1080/60p] |
|||
| Video/Y/C | fH: 15.75 kHz, fV: 60 Hz [NTSC/NTSC4.43/PAL-M/PAL60], fH: 15.63 kHz, fV: 50 Hz [PAL/PAL-N/SECAM] |
|||
| Optical axis shift*5 | Vertical | ±70 % (±60 % with the ET-D75LE6) from center of screen (powered) |
±55 % (±44 % with the ET-D75LE6) from center of screen (powered) |
|
| Horizontal | ±30 % (±20 % with the ET-D75LE6) from center of screen (powered) |
±20 % (±15 % with the ET-D75LE6) from center of screen (powered) |
||
| Keystone correction range | Vertical: ±40°*6 | Vertical: ±40°*6, horizontal: ±15° | ||
| Installation | Ceiling/floor, front /rear, portrait*7 | |||
| Terminals | SDI IN | - | BNC x 1 (3G/HD/SD-SDI) | |
| 3D SYNC IN/OUT | BNC x 1 (3D timing signal) | - | ||
| 3D SYNC OUT | BNC x 1 (3D timing signal) | - | ||
| DVI-D IN | DVI-D 24-pin x 1 (DVI 1.0 compliant, compatible with HDCP, compatible with single link only) | |||
| HDMI IN | HDMI 19-pin x 1 (Deep Color, compatible with HDCP) | |||
| RGB 1 IN | BNC x 5 (RGB/YPBPR/YCBCR/YC x 1) | |||
| RGB 2 IN | D-Sub HD 15-pin (female) x 1 (RGB/YPBPR/YCBCR x 1) | |||
| VIDEO IN | BNC x 1 (composite video) | |||
| SERIAL IN | D-sub 9-pin (female) x 1 for external control (RS-232C compliant) | |||
| SERIAL OUT | D-sub 9-pin (male) x 1 for link control | |||
| REMOTE 1 IN | M3 x 1 for wired remote control | |||
| REMOTE 1 OUT | M3 x 1 for link control (for wired remote control) | |||
| REMOTE 2 IN | D-sub 9-pin (female) x 1 for external control (parallel) | |||
| LAN | RJ-45 x 1 (for network connection, 10Base-T/100Base-TX, compliant with PJLink™) | |||
| Cabinet materials | Molded plastic | |||
| Dimensions (W x H x D) | 530 x 200*8 x 548.5 mm (20-7/8 x 7-7/8*8 x 21-19/32 in) (optional lens not included) | |||
| Weight*9 | Approximately 24 kg (52.9 lbs) (optional lens not included) | |||
| Operation noise*2 | 45 dB (dual lamp operation with lamp HIGH mode), 43 dB (dual lamp operation with lamp MIDDLE mode), 37 dB (dual lamp operation with lamp ECO mode) |
43 dB (dual lamp operation with lamp NORMAL mode), 37 dB (dual lamp operation with lamp ECO mode) |
||
| Operating environment | Operating temperature: 0–45°C (32–113°F)*10, operating humidity: 10–80 % (no condensation) |
|||
| Applicable software | Logo Transfer Software, Multi Projector Monitoring & Control Software |
|||
| Supplied accessories | Power cord with secure lock, wireless/wired remote control unit, batteries (R6/AA type x 2) | |||
