Panasonic Large-Venue Projector PT-RZ31K Series PT-RZ31K / PT-RS30K
- SKU: PT-RZ31K
Actual Stock Can Be Confirmed After Placing the Order.
Specification PT-RZ31K PT-RS30K Power supply AC 200–240 V, 50/60 Hz; AC 100–200 V, 50/60 Hz(Brightness is restricted with lower voltage) AC 200–240 V, 50/60 Hz; AC 100–200 V, 50/60 Hz(Brightness is restricted with lower voltage) Power consumption*1 2,870 W (0.3 W with Standby Mode... See More
EMAIL
info@procure.ae
TELEPHONE
(+971) 454 65041
WHATSAPP
(+971) 454 65041
FREE SHIPPING
All orders over AED1999/-
Specification
|
|
|
|
|---|---|---|
| Power supply | AC 200–240 V, 50/60 Hz; AC 100–200 V, 50/60 Hz (Brightness is restricted with lower voltage) |
AC 200–240 V, 50/60 Hz; AC 100–200 V, 50/60 Hz (Brightness is restricted with lower voltage) |
| Power consumption*1 | 2,870 W (0.3 W with Standby Mode set to Eco*2, 4 W with Standby Mode set to Normal) [2,870 VA, AC 200 V]; Average power consumption: 2,310 W (High Mode), 1,890 W (Normal Mode) |
2,870 W (0.3 W with Standby Mode set to Eco*2, 4 W with Standby Mode set to Normal) [2,870 VA, AC 200 V]; Average power consumption: 2,310 W (High Mode), 1,890 W (Normal Mode) |
| DLP™ chip | ||
| Panel size | 24.4 mm (0.96˝) diagonal (16:10 aspect ratio) |
24.1 mm (0.95˝) diagonal (4:3 aspect ratio) |
| Display method | DLP™ chip x 3, DLP™ projection system | DLP™ chip x 3, DLP™ projection system |
| Pixels | 6,912,000 (1920 x 1200 x 3) pixels | 4,410,000 (1400 x 1050 x 3) pixels |
| Refresh rate | 120 Hz*3 | 120 Hz*3 |
| Lens | Optional (no lens included with this model) | Optional (no lens included with this model) |
| Light source | Laser diode (Class 1), Light-source life: 18,000 hours (High Mode, brightness decreases to approx. 50 %)*4, 20,000 hours (Normal Mode, brightness decreases to approx. 50 %), 43,800 hours (Long Life 1 Mode, consistent brightness), 61,320 hours (Long Life 2 Mode, consistent brightness), 87,600 hours (Long Life 3 Mode, consistent brightness) [IEC627087: 2008 Broadcast content, Image mode: Standard, Dynamic Contrast Mode: 3] |
Laser diode (Class 1), Light-source life: 18,000 hours (High Mode, brightness decreases to approx. 50 %)*4, 20,000 hours (Normal Mode, brightness decreases to approx. 50 %), 43,800 hours (Long Life 1 Mode, consistent brightness), 61,320 hours (Long Life 2 Mode, consistent brightness), 87,600 hours (Long Life 3 Mode, consistent brightness) [IEC627087: 2008 Broadcast content, Image mode: Standard, Dynamic Contrast Mode: 3] |
| Filter | With supplied filter: 4,000 hours (Normal Mode), 2,000 hours (High Mode), 20,000 hours (Long Life 1/2/3 Mode); With Long Life Filter: 20,000 hours (Normal Mode), 4,000 hours (High Mode), 40,000 hours (Long Life 1/2/3 Mode) |
With supplied filter: 4,000 hours (Normal Mode), 2,000 hours (High Mode), 20,000 hours (Long Life 1/2/3 Mode); With Long Life Filter: 20,000 hours (Normal Mode), 4,000 hours (High Mode), 40,000 hours (Long Life 1/2/3 Mode) |
| Screen size (diagonal) | 1.78–25.4 m (70–1,000˝) with 16:10 aspect ratio; 1.78–15.24 m (70–600˝) with the ET-D75LE8, 16:10 aspect ratio; 3.05–15.24 m (120–600˝) with the ET-D75LE95, 16:10 aspect ratio |
1.78–25.4 m (70–1,000˝) with 4:3 aspect ratio; 1.78–15.24 m (70–600˝) with the ET-D75LE8, 4:3 aspect ratio; 3.05–15.24 m (120–600˝) with the ET-D75LE95, 4:3 aspect ratio |
| Brightness | 31,000 lm (Center)*5*7 /30,000 lm*5*6 (High Mode), 26,000 lm (Center)*5*7 /25,000 lm*5*6 (Normal Mode), 12,000 lm (Long Life 1 Mode), 10,000 lm (Long Life 2 Mode), 8,000 lm (Long Life 3 Mode) |
31,000 lm (Center)*5*7 /30,000 lm*5*6 (High Mode), 26,000 lm (Center)*5*7 /25,000 lm*5*6 (Normal Mode), 12,000 lm (Long Life 1 Mode), 10,000 lm (Long Life 2 Mode), 8,000 lm (Long Life 3 Mode) |
| Contrast*6 | 20,000:1 (Full On/Full Off, Dynamic Contrast Mode: 3) | 20,000:1 (Full On/Full Off, Dynamic Contrast Mode: 3) |
| Resolution | 1920 x 1200 pixels | 1400 x 1050 pixels (Input signals that exceed supported resolution will be converted.) |
| Supported RGB signal | XGA–WUXGA | XGA–WUXGA |
| Supported video signal | NTSC/PAL/SECAM, 480p/i, 720p, 1080p/i | NTSC/PAL/SECAM, 480p/i, 720p, 1080p/i |
| Keystone correction range*8 | Vertical: ±40 ° (± 22 ° with ET-D75LE50, ±28 ° with ET-D75LE6), Horizontal: ±15 ° | Vertical: ±40 ° (± 22 ° with ET-D75LE50, ±28 ° with ET-D75LE6), Horizontal: ±15 ° |
| Keystone correction range with optional Upgrade Kit ET-UK20*8 | Vertical: ±45 ° (± 40 ° with ET-D75LE10/20, ±22 ° with ET-D75LE50, ±28 ° with ET-D75LE6), Horizontal: ±40 ° (±15 ° with ET-D75LE50/6), Up to a total of ±55 ° during simultaneous horizontal and vertical correction. | Vertical: ±45 ° (± 40 ° with ET-D75LE10/20, ±22 ° with ET-D75LE50, ±28 ° with ET-D75LE6), Horizontal: ±40 ° (±15 ° with ET-D75LE50/6), Up to a total of ±55 ° during simultaneous horizontal and vertical correction. |
| Installation | Ceiling/floor, front /rear, free 360-degree installation | Ceiling/floor, front /rear, free 360-degree installation |
| Cabinet materials | Metal, molded plastic | Metal, molded plastic |
| Dimensions (W x H x D) | 700 x 418*9 x 1,250 mm (27 25/32˝ x 16 15/32˝*9 x 49 7/32˝ ) (including protruding parts); 700 x 373*10 x 1,070 mm (27 9/16˝ x 14 11/16˝*10 x 42 1/8˝ ) (not including protruding parts) |
700 x 418*9 x 1,250 mm (27 25/32˝ x 16 15/32˝*9 x 49 7/32˝ ) (including protruding parts); 700 x 373*10 x 1,070 mm (27 9/16˝ x 14 11/16˝*10 x 42 1/8˝ ) (not including protruding parts) |
| Shipping dimensions (W x H x D) | PT-RZ31K/KUY: 914 x 625 x 1,488 mm (35 31/32˝ x 24 19/32˝ x 58 19/32˝); PT-RZ31KE: 914 x 625 x 1,488 mm (35 31/32˝ x 24 19/32˝ x 58 19/32˝) |
PT-RZ31K/KUY: 914 x 625 x 1,488 mm (35 31/32˝ x 24 19/32˝ x 58 19/32˝); PT-RZ31KE: 914 x 625 x 1,488 mm (35 31/32˝ x 24 19/32˝ x 58 19/32˝) |
| Weight*11 | Approx. 79 kg (174 lbs.) | Approx. 79 kg (174 lbs.) |
| Shipping weight | PT-RZ31K/KUY: 100.7 kg (222.0 lbs.); PT-RZ31KE: 97.5 kg (214.9 lbs.) |
PT-RZ31K/KUY: 100.7 kg (222.0 lbs.); PT-RZ31KE: 97.5 kg (214.9 lbs.) |
| Operation noise*5 | 49 dB | 49 dB |
| Operating environment | Operating temperature: 0–50 °C (32–122 °F)*12 [altitude: up to 1,400 m (4,593 ft), High/Normal Mode]; 0–45 °C (32–113 °F)*12 [altitude: up to 4,200 m (13,780 ft), High/Normal/Standby/Eco/Long Life1/2/3 Mode]; 0–40 °C (32–104 °F) [altitude: up to 1,400 m (4,593 ft) with Smoke Cut Filter]; Operating humidity: 10–80 % (no condensation) |
Operating temperature: 0–50 °C (32–122 °F)*12 [altitude: up to 1,400 m (4,593 ft), High/Normal Mode]; 0–45 °C (32–113 °F)*12 [altitude: up to 4,200 m (13,780 ft), High/Normal/Standby/Eco/Long Life1/2/3 Mode]; 0–40 °C (32–104 °F) [altitude: up to 1,400 m (4,593 ft) with Smoke Cut Filter]; Operating humidity: 10–80 % (no condensation) |
| Applicable software | Logo Transfer Software, Multi Monitoring & Control Software, Early Warning Software, Geometry Manager Pro (ET-UK20 Upgrade Kit and ET-CUK10*13Auto Screen Adjustment Kit) |
Logo Transfer Software, Multi Monitoring & Control Software, Early Warning Software, Geometry Manager Pro (ET-UK20 Upgrade Kit and ET-CUK10*13Auto Screen Adjustment Kit) |

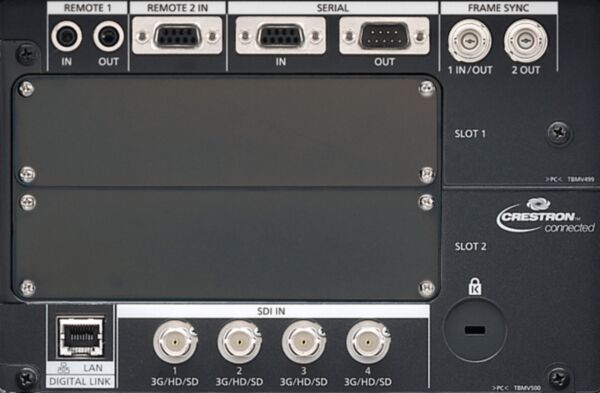

| TerminalsPT-RZ31K/ RS30K |
 |
|
No datasheet available.
