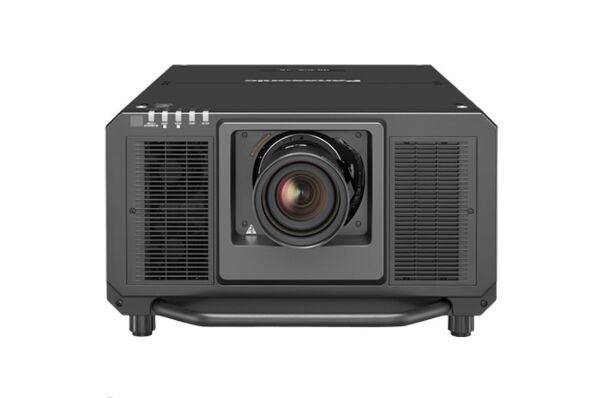

Panasonic Large-Venue Projector PT-RQ13K
- SKU: PT-RQ13K
Actual Stock Can Be Confirmed After Placing the Order.
Specification PT-RQ13K Power supply 100–240 V AC, 50/60 Hz Power consumption*1 1,270 W (0.3 W with Standby Mode set to Eco*1, 4 W with Standby Mode set to Normal);Average power consumption: 913 W (Normal Mode), 782 W (Eco Mode), 531–732 W (Long Life 1... See More
EMAIL
info@procure.ae
TELEPHONE
(+971) 454 65041
WHATSAPP
(+971) 454 65041
FREE SHIPPING
All orders over AED1999/-
Specification
|
|
|
|---|---|
| Power supply | 100–240 V AC, 50/60 Hz |
| Power consumption*1 | 1,270 W (0.3 W with Standby Mode set to Eco*1, 4 W with Standby Mode set to Normal); Average power consumption: 913 W (Normal Mode), 782 W (Eco Mode), 531–732 W (Long Life 1 Mode), 477–702 W (Long Life 2 Mode),423–665 W (Long Life 3 Mode) [Operating temperature: 25 °C (77 °F), altitude: 700 m (2,297 ft), ICE627087: 2008 Broadcast content, Picture Mode: Dynamic, Dynamic Contrast Mode: 3] |
| DLP™ chip | |
| Panel size | 22.9 mm (0.9˝) diagonal (16:10 aspect ratio) |
| Display method | DLP™ chip x 3, DLP™ projection system |
| Pixels | 4,096,000 (2560 x 1600) x 3, total of 12,288,000 pixels when Quad Pixel Drive set to OFF, 49152,000 (12,288,000 x 4) pixels when Quad Pixel Drive set to ON |
| Refresh rate | 240 Hz*2 |
| Lens | Optional (no lens included with this model) |
| Light source | Laser diode (Class 1) (Class 3R for US models), Light-source life*3: 20,000 hours (Normal Mode), 24,000 hours (Eco Mode) |
| Screen size (diagonal) | 1.78–25.4 m (70–1,000˝), 1.78–15.24 m (70–600˝) with ET-D75LE8, 3.05–15.24 m (120–600˝) with ET-D75LE90, 16:10 aspect ratio |
| Brightness*4 | 10,000 lm |
| Contrast*4 | 20,000:1 (Full On/Full Off, Dynamic Contrast Mode: 3) |
| Resolution | 5120 x 3200 pixels (Quad Pixel Drive: ON) |
| Supported RGB signal | XGA–WUXGA |
| Supported video signal | NTSC/PAL/SECAM, 480p/i, 720p, 1080p/i, 4K |
| Keystone correction range*6 | Vertical: ±40° (±22° with ET-D75LE50, ±28° with ET-D75LE6, +5° with ET-D75LE90), horizontal: ±15° (0° with ET-D75LE90) |
| Keystone correction range with optional Upgrade Kit ET-UK20*6 | Vertical: ±45° (±40° with ET-D75LE10/D75LE20, ±22° with ET-D75LE50, ±28° with ET-D75LE6, +5° with ET-D75LE90), horizontal: ±40° (±15° with ET-D75LE6/D75LE10/D75LE50, ±20° with ET-D75LE20, ±25° with ET-D75LE30, ±30° with ET-D75LE40, ±40° with ET-D75LE8, 0° with ET-D75LE90), Up to a total of ±30° during simultaneous horizontal and vertical correction. |
| Installation | Ceiling/floor, front /rear, free 360-degree installation |
| Cabinet materials | Molded plastic |
| Dimensions (W x H x D) | 578 x 270 x 725 mm (22 3/4˝ x 10 5/8˝ x 28 17/32˝) (optional lens, legs and lens cover not included); 578 x 323.5 x 740 mm (22 3/4˝ x 12 23/32˝ x 29 1/8˝) (Including legs at shortest position and protruding parts) |
| Weight*7 | Approx. 49.0 kg (108 lbs) (optional lens not included) |
| Operation noise*4 | 46 dB |
| Operating environment | Operating temperature: 0–45 °C (32–113 °F)*8, operating humidity: 10–80 % (no condensation) |
| Applicable software | Logo Transfer Software, Multi Monitoring & Control Software, Early Warning Software, Geometry Manager Pro (ET-UK20 Upgrade Kit and ET-CUK10*9 Auto Screen Adjustment Kit) |
