PanasonicDigital SignageSKU TH-86EQ3

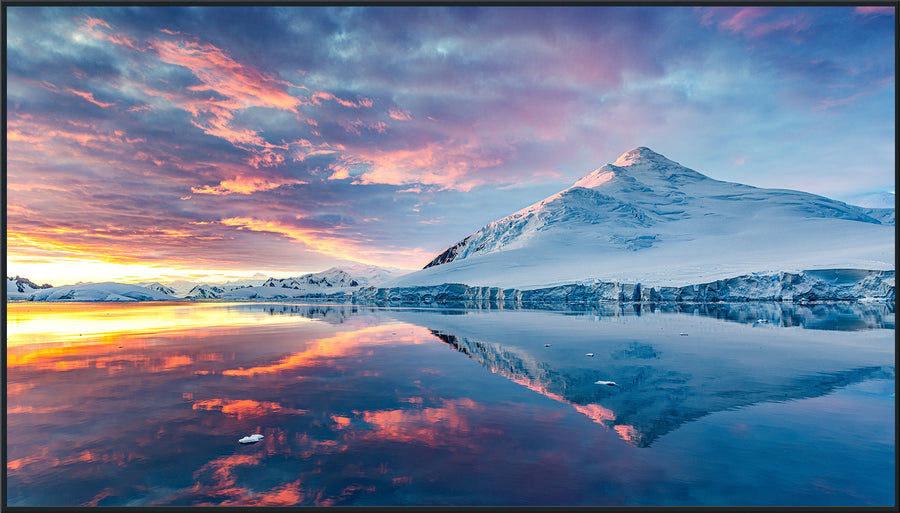

Panasonic EQ3 Series 86-inch 4K UHD Professional Display – TH-86EQ3
The Panasonic TH-86EQ3 is an 86-inch 4K UHD professional display for large conference rooms, classrooms and digital signage. It offers 500 nits brightness, 5,000:1 typical contrast and an anti-glare panel, with three HDMI inputs and LAN and RS-232C control. Procure.ae supplies the TH-86EQ3 across the UAE.
The TH-86EQ3 is the largest model in the EQ3 Series, with a 3840 x 2160 panel and about 8.29 million pixels. It has 500 nits brightness and a haze 25% anti-glare surface that reduces reflections from bright light. Typical contrast is 5,000:1 and typical response time is 8 ms (grey to grey). The 178-degree viewing angle supports wide seating, and built-in 20 W speakers (10 W + 10 W) provide audio.
The 86-inch model suits large conference rooms, classrooms and retail digital signage. Its 600 x 400 mm VESA pattern takes M8 screws, 20 mm deep, and the display weighs approximately 46.0 kg, so the wall mount or bracket needs a matching load rating. Power consumption is listed at 336 W. The display works in landscape or portrait orientation and is rated for 18 hours of operation per day.
Screen Size
86 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
500 nits
Type
Professional Display
- 4K UHD resolution
- 500 nits brightness
- Anti-glare panel
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
4K UHD resolution
3840 x 2160 pixels, about four times the pixels of a Full HD display.
02
500 nits brightness
Typical brightness of 500 cd/m² for clear images in bright rooms.
03
Anti-glare panel
A haze 25% surface suppresses reflected glare from bright light.
04
Portrait or landscape
Installs in either orientation, with a 0 to 20 degree forward tilt in landscape.
05
Three HDMI inputs
HDCP 2.2 supported, alongside a PC input and a USB Type-A port.
06
USB media playback
Plays 4K-compatible content from a USB memory stick without a PC.
07
RS-232C and LAN control
External control over RS-232C and LAN with PJLink support.
08
Built-in 20 W speakers
Stereo speakers (10 W + 10 W) provide audio without external speakers.
Specifications
30 specificationsGeneral
Key Features4K UHD resolution, 500 nits, anti-glare panel (haze 25%), portrait or landscape use, USB media playback, three HDMI inputs, PJLink LAN control, built-in 20 W speakers
ModelTH-86EQ3
TypeProfessional Display
Display
Aspect Ratio16:9
Bezel Size15.5 mm (right side)
Brightness500 nits
Contrast Ratio5,000:1
OrientationLandscape / Portrait
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size86 inch
Viewing Angle178° (H) / 178° (V)
Audio
Speaker Output20 W (10 W + 10 W)
Connectivity
ConnectivityRS-232C, LAN (PJLink)
Ethernet10BASE-T / 100BASE-TX (RJ45)
HDMI Inputs3 (HDCP 2.2)
Input Voltage110–240 V AC, 50/60 Hz
PortsHDMI In × 3, PC In × 1, Audio In × 1, Audio Out × 1, LAN × 1, USB Type-A × 1, RS-232C × 1
ProtocolsPJLink
Serial PortRS-232C (D-sub 9-pin)
USB PortsUSB Type-A × 1 (DC 5 V / 2 A, USB 2.0)
Power
Power Consumption336 W
Standby Power0.5 W (approx.)
Physical
Duty Cycle18 hours per day
MountingVESA wall mount, M8 screws, 20 mm deep
Operating Humidity20% to 80% (no condensation)
Operating Temperature0 to 40 °C (up to 1,400 m altitude)
Tilt0 to 20 degrees forward (landscape)
VESA Mount600 x 400 mm
Weight46.0 kg
Downloads
Manufacturer documents for the Panasonic EQ3 Series 86-inch 4K UHD Professional Display – TH-86EQ3 — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What is the Panasonic TH-86EQ3?
The TH-86EQ3 is an 86-inch class 4K UHD professional display from the EQ3 Series, and the largest model in that range. It has a 3840 x 2160 resolution, 500 nits typical brightness and 5,000:1 typical contrast.
Is the TH-86EQ3 suitable for large conference rooms?
Yes. It has an 86-inch class screen with a 3840 x 2160 resolution, and its 178-degree viewing angle supports wide seating. The anti-glare panel helps the image stay readable in rooms with bright lighting.
How should the TH-86EQ3 be wall-mounted?
Use a 600 x 400 mm VESA pattern with M8 screws, 20 mm deep. The display weighs approximately 46.0 kg, so the wall structure and bracket must be rated for that load. It can be installed in landscape or portrait orientation.
How much power does the TH-86EQ3 use?
Power consumption is listed at 336 W, with approximately 0.5 W in standby and 0.3 W when powered off. It runs on 110 to 240 V AC at 50 or 60 Hz, and it is rated for up to 18 hours of operation per day.
Can the TH-86EQ3 play content from a USB drive?
Yes. Insert a USB memory stick with saved content and playback starts automatically, with no PC or set-top box needed. The display is 4K compatible, but still images and videos cannot be mixed on one stick, and some file formats will not play.
