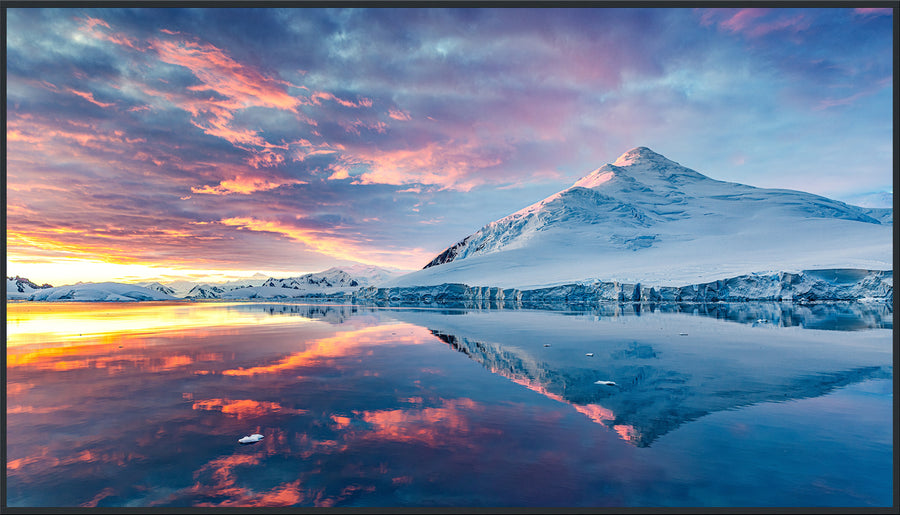

Panasonic TH-65EQ3 65-inch 4K UHD professional displayPanasonic
Digital SignageSKU TH-65EQ3

Panasonic EQ3 Series 65-inch 4K UHD Professional Display – TH-65EQ3

The Panasonic TH-65EQ3 is a 65-inch 4K UHD professional display for conference rooms, classrooms and digital signage. It offers 500 nits brightness, 5,000:1 typical contrast and an anti-glare panel, with three HDMI inputs, USB media playback and LAN and RS-232C control. Procure.ae supplies the TH-65EQ3 across the UAE.

The TH-65EQ3 shows 4K UHD detail at 3840 x 2160, roughly four times the pixels of a Full HD display. Its 500 nits brightness and anti-glare panel, with 25% haze, reduce reflected glare, which helps in rooms with bright lighting. Typical contrast is 5,000:1, and the typical response time is 8 ms (grey to grey). The 178-degree viewing angle is the same horizontally and vertically, and built-in 20 W speakers (10 W + 10 W) provide audio.

At 65 inches, the TH-65EQ3 fits conference rooms and classrooms that need a larger shared screen. It mounts on a 400 x 400 mm VESA pattern with M8 screws, 20 mm deep, and weighs approximately 27.1 kg, so plan the wall bracket accordingly. Power consumption is listed at 184 W, and the display is rated for 18 hours of operation per day. Its ports include three HDMI inputs, a PC input and a USB Type-A port for media playback.

Screen Size
65 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
500 nits
Type
Professional Display
  • 4K UHD resolution
  • 500 nits brightness
  • Anti-glare panel
Price
On request · best price
1
Download spec sheet (PDF) Manufacturer datasheet (PDF)
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request

Key features

01
4K UHD resolution
3840 x 2160 pixels, about four times the pixels of a Full HD display.
02
500 nits brightness
Typical brightness of 500 cd/m² for clear images in bright rooms.
03
Anti-glare panel
A haze 25% surface suppresses reflected glare from bright light.
04
Portrait or landscape
Installs in either orientation, with a 0 to 20 degree forward tilt in landscape.
05
Three HDMI inputs
HDCP 2.2 supported, alongside a PC input and a USB Type-A port.
06
USB media playback
Plays 4K-compatible content from a USB memory stick without a PC.
07
RS-232C and LAN control
External control over RS-232C and LAN with PJLink support.
08
Built-in 20 W speakers
Stereo speakers (10 W + 10 W) provide audio without external speakers.

Specifications

30 specifications
General
Key Features4K UHD resolution, 500 nits, anti-glare panel (haze 25%), portrait or landscape use, USB media playback, three HDMI inputs, PJLink LAN control, built-in 20 W speakers
ModelTH-65EQ3
TypeProfessional Display
Display
Aspect Ratio16:9
Bezel Size14.9 mm (right side)
Brightness500 nits
Contrast Ratio5,000:1
OrientationLandscape / Portrait
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size65 inch
Viewing Angle178° (H) / 178° (V)
Audio
Speaker Output20 W (10 W + 10 W)
Connectivity
ConnectivityRS-232C, LAN (PJLink)
Ethernet10BASE-T / 100BASE-TX (RJ45)
HDMI Inputs3 (HDCP 2.2)
Input Voltage110–240 V AC, 50/60 Hz
PortsHDMI In × 3, PC In × 1, Audio In × 1, Audio Out × 1, LAN × 1, USB Type-A × 1, RS-232C × 1
ProtocolsPJLink
Serial PortRS-232C (D-sub 9-pin)
USB PortsUSB Type-A × 1 (DC 5 V / 2 A, USB 2.0)
Power
Power Consumption184 W
Standby Power0.5 W (approx.)
Physical
Duty Cycle18 hours per day
MountingVESA wall mount, M8 screws, 20 mm deep
Operating Humidity20% to 80% (no condensation)
Operating Temperature0 to 40 °C (up to 1,400 m altitude)
Tilt0 to 20 degrees forward (landscape)
VESA Mount400 x 400 mm
Weight27.1 kg

Questions

Can’t find your answer? Ask on WhatsApp

What is the Panasonic TH-65EQ3?
The TH-65EQ3 is a 65-inch class 4K UHD professional display from Panasonic's EQ3 Series. It has a 3840 x 2160 resolution, 500 nits typical brightness and 5,000:1 typical contrast. It is designed for conference rooms, classrooms and digital signage.
What is the screen size of the TH-65EQ3?
The TH-65EQ3 is a 65-inch class display with a 64.5-inch (1638.9 mm) screen diagonal, according to the manufacturer. Its 16:9 aspect ratio suits widescreen content and presentations. The panel has a 3840 x 2160 resolution, so 4K content displays at its native resolution.
How should the TH-65EQ3 be wall-mounted?
Use a 400 x 400 mm VESA pattern with M8 screws, 20 mm deep. The display weighs approximately 27.1 kg, so the bracket and wall structure must be rated for that load. It can be installed in landscape or portrait orientation.
How much power does the TH-65EQ3 use?
Power consumption is listed at 184 W, with approximately 0.5 W in standby and 0.3 W when powered off. It runs on 110 to 240 V AC at 50 or 60 Hz, and it is rated for up to 18 hours of operation per day.
Can the TH-65EQ3 play content from a USB drive?
Yes. Insert a USB memory stick with saved content and playback starts automatically, without a PC or set-top box. The display is 4K compatible, but still images and videos cannot be mixed on one stick, and some file formats may not play.
Can I buy the TH-65EQ3 in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
