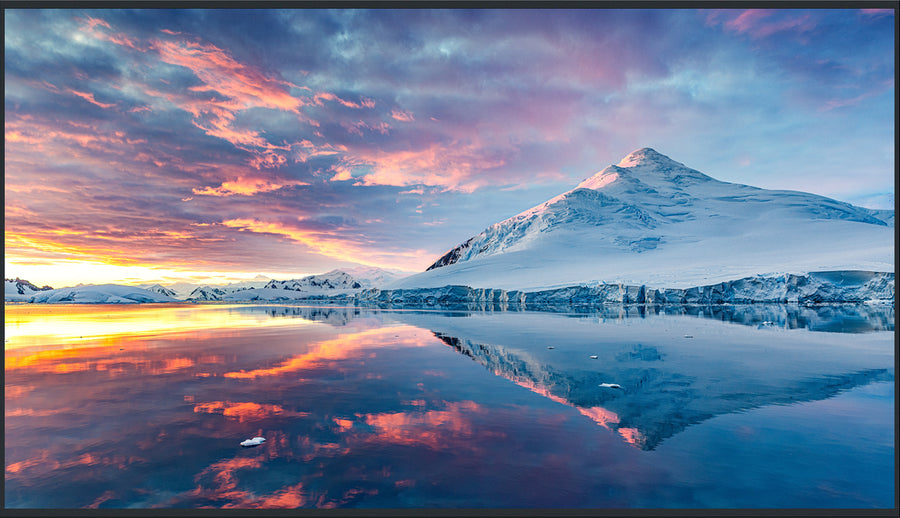

Panasonic EQ3 Series 50-inch 4K UHD Professional Display – TH-50EQ3

Panasonic EQ3 Series 50-inch 4K UHD Professional Display – TH-50EQ3

The Panasonic TH-50EQ3 is a 50-inch 4K UHD professional display for meeting rooms, classrooms and digital signage. It offers 500 nits brightness, 5,000:1 typical contrast and an anti-glare panel, with three HDMI inputs and LAN and RS-232C control. Procure.ae supplies the TH-50EQ3 across the UAE.

The TH-50EQ3 has a 3840 x 2160 panel, about four times the pixels of a Full HD display. The 500 nits brightness and 25% haze anti-glare surface help images stay readable in rooms with bright lighting. Typical contrast is rated at 5,000:1, and the 178-degree viewing angle keeps the picture clear from wide seating positions. Dynamic backlight control adjusts brightness to the incoming signal, and built-in 20 W speakers (10 W + 10 W) provide audio.

At 50 inches, the TH-50EQ3 suits medium-sized meeting rooms and classrooms. It mounts on a 400 x 400 mm VESA pattern with M6 screws, 20 mm deep, and weighs approximately 13.5 kg. Power consumption is listed at 119 W, and the display is rated for 18 hours of operation per day. Three HDMI inputs, a PC input and a USB Type-A port connect a range of sources.

Screen Size
50 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
500 nits
Type
Professional Display
Weight
13.5 kg

Key features

01
4K UHD resolution
3840 x 2160 pixels, about four times the pixels of a Full HD display.
02
500 nits brightness
Typical brightness of 500 cd/m² for clear images in bright rooms.
03
5,000:1 typical contrast
Rated contrast ratio for detailed images in conference rooms and classrooms.
04
Anti-glare panel
A haze 25% surface suppresses reflected glare from bright light.
05
Portrait or landscape
Installs in either orientation, with a 0 to 20 degree forward tilt in landscape.
06
Three HDMI inputs
HDCP 2.2 supported, alongside a PC input and a USB Type-A port.
07
USB media playback
Plays 4K-compatible content from a USB memory stick without a PC.
08
RS-232C and LAN control
External control over RS-232C and LAN with PJLink support.

Specifications

General
Key Features4K UHD resolution, 500 nits, anti-glare panel (haze 25%), portrait or landscape use, USB media playback, three HDMI inputs, PJLink LAN control, built-in 20 W speakers
ModelTH-50EQ3
TypeProfessional Display
Display
Aspect Ratio16:9
Bezel Size14.9 mm (right side)
Brightness500 nits
Contrast Ratio5,000:1
OrientationLandscape / Portrait
Resolution3840 x 2160 (4K UHD)
Response Time9.5 ms
Screen Size50 inch
Viewing Angle178° (H) / 178° (V)
Audio
Speaker Output20 W (10 W + 10 W)
Connectivity
ConnectivityRS-232C, LAN (PJLink)
Ethernet10BASE-T / 100BASE-TX (RJ45)
HDMI Inputs3 (HDCP 2.2)
Input Voltage110–240 V AC, 50/60 Hz
PortsHDMI In × 3, PC In × 1, Audio In × 1, Audio Out × 1, LAN × 1, USB Type-A × 1, RS-232C × 1
ProtocolsPJLink
Serial PortRS-232C (D-sub 9-pin)
USB PortsUSB Type-A × 1 (DC 5 V / 2 A, USB 2.0)
Power
Power Consumption119 W
Standby Power0.5 W (approx.)
Physical
Duty Cycle18 hours per day
MountingVESA wall mount, M6 screws, 20 mm deep
Operating Humidity20% to 80% (no condensation)
Operating Temperature0 to 40 °C (up to 1,400 m altitude)
Tilt0 to 20 degrees forward (landscape)
VESA Mount400 x 400 mm
Weight13.5 kg
