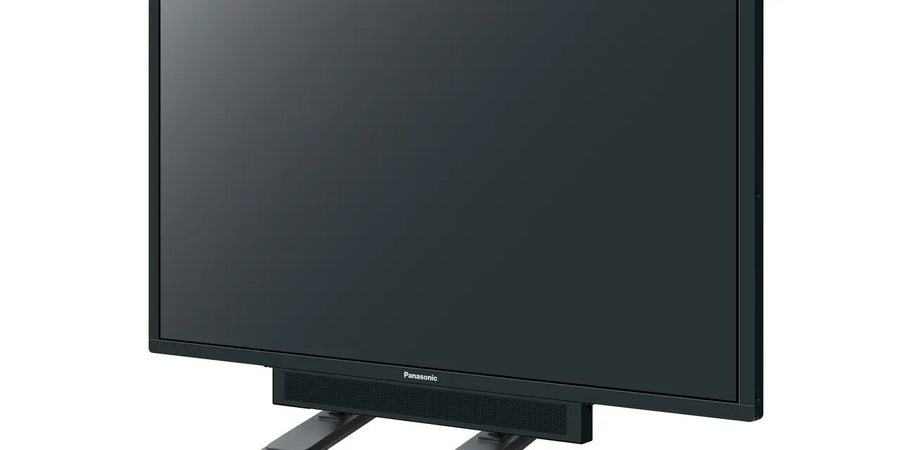

Panasonic Display Pedestal – TY-ST75PE9

The Panasonic TY-ST75PE9 is a display pedestal supplied as two bases and two pedestal tubes, each piece measuring 112 x 828 x 540 mm. It weighs approximately 5.5 kg and includes M6 display screws and overturn-prevention parts. Procure.ae, an authorised reseller, supplies it in the UAE and can confirm which Panasonic display it suits.

The pedestal comes as two bases and two pedestal tubes. One pedestal piece measures 112 x 828 x 540 mm (W x H x D) and the weight is approximately 5.5 kg. The bases are fixed with four M4 x 28 assembly screws, and the display is attached with four M6 x 41 display screws. Overturn-prevention parts are included: two bands, two M4 x 15 screws and two wood screws. The carton measures 892 x 215 x 414 mm and weighs approximately 9 kg gross.

Panasonic's installation instructions for the TY-ST75PE9 call for a stable, level surface and for at least 10 cm of space above and beside the display and 5 cm behind it. Two or more people are required when the display weighs more than 25 kg, and four when it weighs more than 50 kg. The manufacturer's specifications do not name compatible display models, so Procure.ae confirms fit before supply.
