Panasonic Display Pedestal – TY-ST43PE9

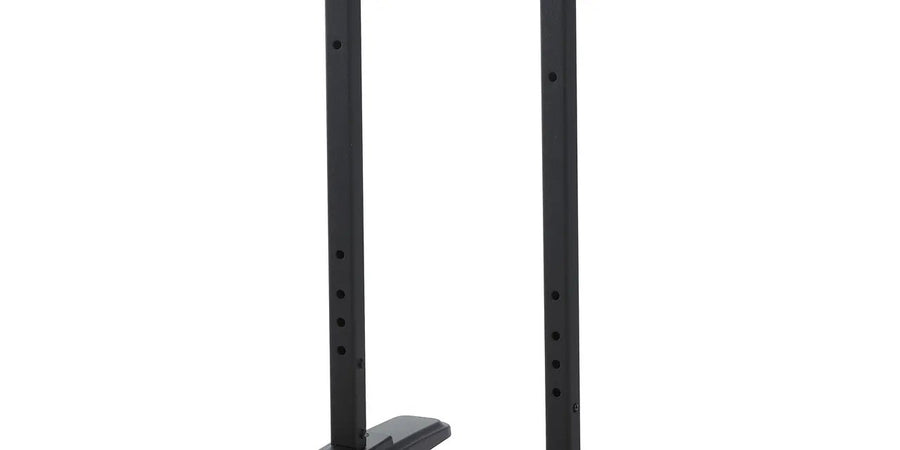

The Panasonic TY-ST43PE9 is a display pedestal supplied as two bases and two pedestal tubes, each piece measuring 65 x 578 x 400 mm. It weighs approximately 3.7 kg and includes M6 display screws and overturn-prevention parts. Procure.ae, an authorised reseller, supplies it in the UAE and can confirm which Panasonic display it suits.

The pedestal comes as two bases and two pedestal tubes. One pedestal piece measures 65 x 578 x 400 mm (W x H x D) and the weight is approximately 3.7 kg. The base is fixed with M4 x 28 (2) and M4 x 32 (2) assembly screws, and the display is attached with four M6 x 41 display screws. Overturn-prevention parts are included: two bands, two wood screws and two spacers. The carton measures 776 x 155 x 321 mm and weighs approximately 6 kg gross.

Panasonic's instructions for the TY-ST43PE9, shared with the TY-ST55PE9, call for a stable, level surface and for at least 10 cm of space above and beside the display and 5 cm behind it. Two people are required to install or remove the display, and the pedestal must not be used to hold a display vertically. The manufacturer's specifications do not name compatible display models, so Procure.ae confirms fit before supply.
