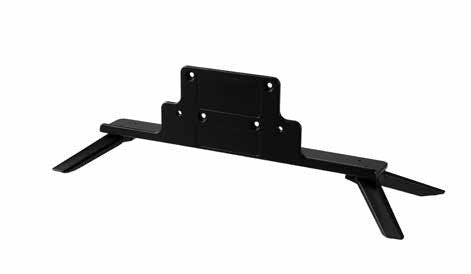

Panasonic Display Pedestal – TY-ST32PE2

The Panasonic TY-ST32PE2 is a display pedestal made up of a stand base and two stand legs, measuring 508 x 161 x 178 mm and weighing about 1.1 kg. Display installation screws and overturn-prevention belts are included. Procure.ae, an authorised reseller, supplies it in the UAE and can confirm which Panasonic display it suits.

The pedestal is assembled from one stand base and two stand legs (left and right), fixed with four M4 x 16 stand leg mounting screws. The display is attached to the stand with four M4 x 12 display installation screws. The stand measures 508 x 161 x 178 mm (W x H x D) and weighs approximately 1.1 kg. For safety, it comes with overturn-prevention parts: two belts, two M4 x 16 screws and two wood screws. The carton measures 452 x 138 x 165 mm and weighs approximately 2.0 kg gross.

The TY-ST32PE2 is a Panasonic accessory for professional displays, marked by the manufacturer for business use. Panasonic asks that its operating instructions are kept together with the display's own instructions and that the pedestal is assembled only with the specified parts. The manufacturer's specifications do not name compatible display models, so Procure.ae checks your Panasonic display against the pedestal before supply.

Type
Display Pedestal Stand
Weight
1.1 kg
  • Base and two legs
  • Display screws included
  • Overturn prevention
Price
On request · best price
1
Download spec sheet (PDF) Manufacturer datasheet (PDF)
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request

Key features

01
Base and two legs
One stand base and two stand legs (left and right) are assembled with four M4 x 16 screws.
02
Display screws included
Four M4 x 12 display installation screws are supplied.
03
Overturn prevention
Two overturn-prevention belts, two M4 x 16 screws and two wood screws are included.
04
Compact size
The stand measures 508 x 161 x 178 mm (W x H x D).
05
Light weight
The stand weighs approximately 1.1 kg, or about 2.0 kg packed.

Specifications

8 specifications
General
Key FeaturesStand base with two legs, display installation screws included, overturn-prevention belts, 1.1 kg
ModelTY-ST32PE2
TypeDisplay Pedestal Stand
What's in the BoxStand base × 1, stand legs × 2, display screws M4 x 12 × 4, leg screws M4 x 16 × 4, overturn-prevention belts × 2, screws M4 x 16 × 2, wood screws × 2
Physical
Dimensions508 x 161 x 178 mm
Shipping Dimensions452 x 138 x 165 mm
Shipping Weight2.0 kg
Weight1.1 kg

Downloads

Manufacturer documents for the Panasonic Display Pedestal – TY-ST32PE2 — datasheets, manuals, drawings and certificates.

Questions

Can’t find your answer? Ask on WhatsApp

Which displays does the Panasonic TY-ST32PE2 fit?
The manufacturer's specification sheet does not list compatible display models. Panasonic advises against using displays other than those it specifies for its pedestals. Procure.ae can confirm whether your Panasonic display suits the TY-ST32PE2 before you order.
What is supplied with the TY-ST32PE2?
The pedestal comes with four M4 x 12 display installation screws and four M4 x 16 stand leg mounting screws. Overturn-prevention parts are included: two overturn-prevention belts, two M4 x 16 screws and two wood screws. The stand base and two stand legs complete the pedestal.
What are the size and weight of the TY-ST32PE2?
The stand measures 508 x 161 x 178 mm (W x H x D) and weighs approximately 1.1 kg. Packed in its carton it measures 452 x 138 x 165 mm and weighs approximately 2.0 kg, which makes it straightforward to transport and install.
Can I buy the Panasonic TY-ST32PE2 in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
