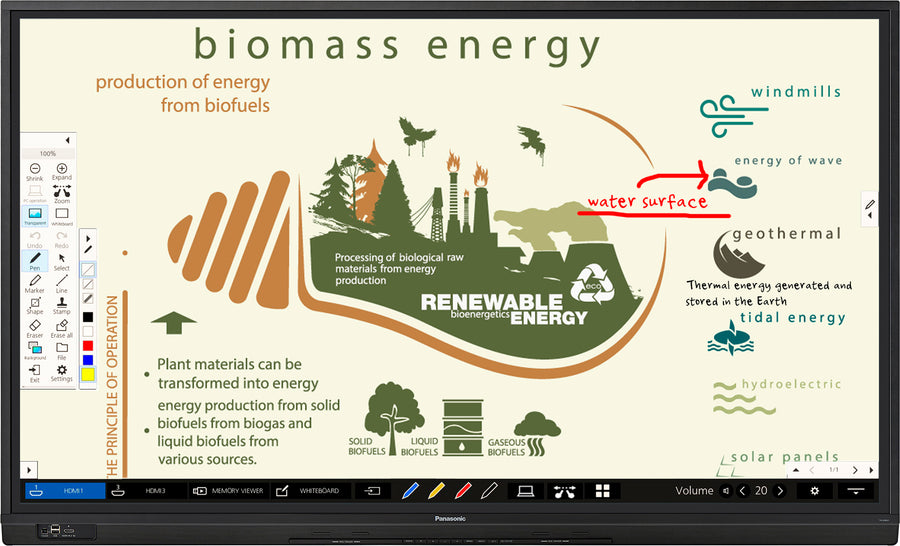

Panasonic 65-inch 4K Interactive Flat Panel – TH-65BQ1
The Panasonic TH-65BQ1 is a discontinued 65-inch 4K UHD interactive flat panel for classrooms and meeting rooms. It has 20-point infrared touch, a built-in whiteboard and 500 cd/m² brightness, and supports Windows and macOS computers. Procure.ae supplies the TH-65BQ1 across the UAE and can confirm current availability.
The BQ1 Series is built as a teaching and thinking tool. Its 3840 x 2160 panel shows 4K/60p signals at 500 cd/m² with 1,200:1 contrast, an 8.0 ms G-to-G response time and a 178°/178° viewing angle. Up to 20 touch points work at once, and the built-in whiteboard can be used as soon as the display is turned on. Color Universal Design (CUD) certification is noted for colours that are easier to distinguish.

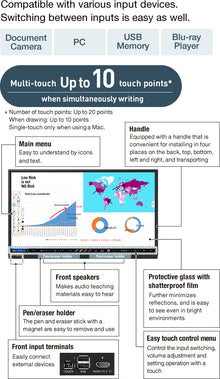

The panel connects to a PC over HDMI, DisplayPort, DVI-D or PC input, and its USB Type-B touch port carries touch input to the computer. Captured images or USB images can be compared on up to nine screens, and clock, timer, stopwatch and learning-clock functions support timed lessons. The 65-inch model supports a VESA 400 x 400 mm wall mount and landscape or portrait orientation.
Screen Size
65 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
500 nits
Touch Technology
Infrared
- 4K UHD Touch Display
- 20-Point Touch
- Built-in Whiteboard
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
4K UHD Touch Display
3840 x 2160 resolution at 500 cd/m² brightness, with 1,200:1 contrast.
02
20-Point Touch
Up to 20-point multi-touch using infrared blocking detection.
03
Built-in Whiteboard
Write on the display immediately after power-on, or annotate images from external inputs.
04
Stamps and Backgrounds
Built-in figures, backgrounds and stamps, with USB images added as originals.
05
Multi-screen Comparison
Compare up to nine captured or USB images on one screen.
06
Timer Functions
Clock, timer, stopwatch and learning-clock functions for timed lessons.
07
Built-in Speakers
20 W built-in speakers (10 W + 10 W) and 30 W speaker output.
08
Connectivity and Control
HDMI, DisplayPort, DVI-D, PC, RS-232C and LAN with PJLink.
Specifications
25 specificationsGeneral
Key Features4K UHD panel, 500 nits, 20-point infrared touch, built-in whiteboard, multi-screen comparison, timer functions, PJLink LAN control
ModelTH-65BQ1
TypeInteractive Flat Panel
Display
Aspect Ratio16:9
Brightness500 nits
Contrast Ratio1,200:1
OrientationLandscape / Portrait
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size65 inch
Touch Points20-point multi-touch
Touch TechnologyInfrared
Viewing Angle178° / 178°
Performance
Duty Cycle18 h/day
Operating SystemWindows 8.1 / 10, Mac OS X 10.10 to macOS 11.0
Audio
Speaker Output20 W built-in (10 W + 10 W); 30 W speaker out (15 W + 15 W)
Connectivity
Input Voltage110–240 V AC, 50/60 Hz
PortsHDMI In × 3, DisplayPort In × 1, DVI-D In × 1, PC In × 1, HDMI Out × 1, USB Type-B (touch) × 1, RS-232C × 1, LAN (RJ45) × 1, Audio In × 2, Audio Out × 1
Power
Power Consumption320 W (maximum); 230 W (on mode average)
Physical
Dimensions1495 x 908 x 105 mm (W x H x D, with handles)
Operating Humidity20% to 80% (non-condensing)
Operating Temperature0 to 40 °C (up to 1400 m altitude)
TiltLandscape: 0 to 45° backward; Portrait: none
VESA Mount400 x 400 mm
Weight43.4 kg
Downloads
Manufacturer documents for the Panasonic 65-inch 4K Interactive Flat Panel – TH-65BQ1 — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Is the TH-65BQ1 an interactive display for classrooms?
Yes. The BQ1 Series is described by the manufacturer as a teaching and thinking tool. Its 20-point touch, built-in whiteboard and multi-screen comparison support participatory lessons, group work and active meetings in classrooms.
Does the TH-65BQ1 touch work with a Windows or Mac computer?
Yes. Touch input is sent to the computer through a USB Type-B touch connector. The manufacturer lists Windows 8.1 and 10, and Mac OS X 10.10 through macOS 11.0, as supported operating systems.
Can the TH-65BQ1 be wall-mounted?
Yes. It has a VESA compliant 400 x 400 mm wall-hanging pattern. The unit weighs 43.4 kg, so the wall and mounting bracket should be rated for that load. Procure.ae can advise on suitable installation for the room.
How many inputs does the TH-65BQ1 have?
It has three HDMI inputs with HDCP 2.2, one DisplayPort input, one DVI-D input and one PC input. It also has an HDMI digital output and a USB Type-B touch connector.
