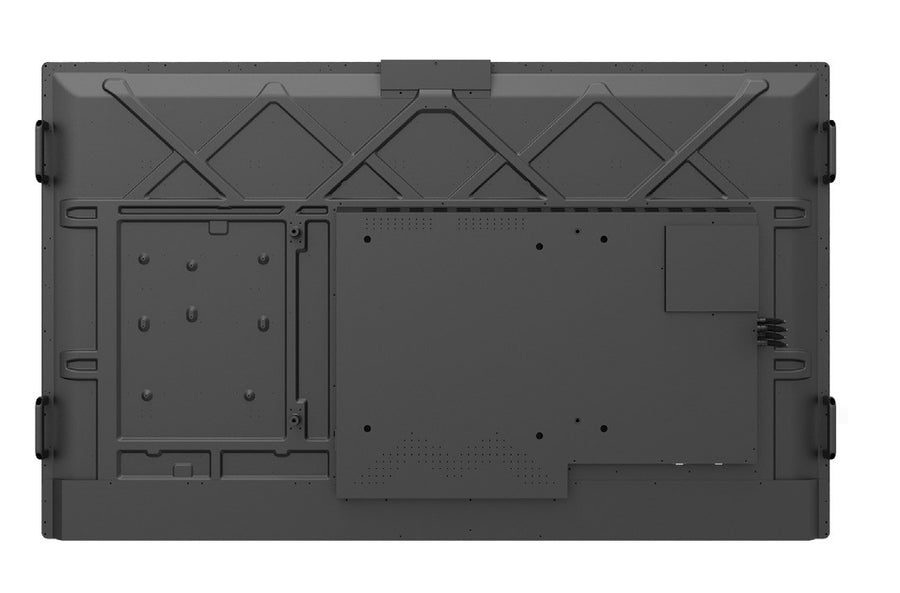

OneScreen Touchscreen T6 Education 55-inch 4K Interactive Flat Panel
The OneScreen Touchscreen T6 Education 55-inch is a 4K interactive flat panel for classrooms and training rooms. It has a 3840 x 2160 LG panel, 20-point infrared touch and Android 8.0 with Google Play, plus built-in annotation and screen sharing software. The model is discontinued; Procure.ae supplies OneScreen products in the UAE and can confirm availability.
The 55-inch OneScreen Touchscreen T6 Education (also described as OneScreen Touchscreen 6) pairs a 3840 x 2160 LG panel at 60 Hz with brightness above 400 cd/m² and viewing angles of 178° horizontal and 176° vertical. Infrared touch tracks 20 points with 3 mm accuracy, palm detection and pen and touch differentiation. The Android 8.0 system runs on a Cortex A73 x2 and A53 x2 processor with 3 GB DDR4 and 64 GB eMMC storage, and two 15 W speakers provide Dolby sound.
Inputs include 3 x HDMI 2.0, VGA, DisplayPort, RJ45 and TF/SD card, with dual-band Wi-Fi and an optional OPS PC (Intel Core i5 or i7) and optional OneScreen web or PTZ camera. Software covers OneScreen Annotate, Write, Swap, Central and Hype, EShare mirroring and ZUNI Learning, with the first year of cloud services included. The 55-inch model mounts on a 400 x 400 mm VESA pattern. Larger sizes in the series run from 65 to 98 inches.
Screen Size
55 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
400+ nits
Touch Technology
Infrared
- 4K LG panel
- 20-point infrared touch
- Android 8.0 with Google Play
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
4K LG panel
3840 x 2160 resolution, 60 Hz refresh rate, brightness above 400 cd/m² and 1.07 billion colors.
02
20-point infrared touch
3 mm touch accuracy with palm detection and pen and touch differentiation.
03
Android 8.0 with Google Play
Full access to Android apps including Chrome, YouTube and Office apps, with multi-user login.
04
Classroom software
OneScreen Annotate, Write, Swap, Central, Attendance and ZUNI Learning are listed in the software suite.
05
Wireless screen sharing
EShare supports multi-device screen share and streaming over dual-band Wi-Fi.
06
Dolby sound
Two 15 W built-in left/right speakers with balance, automatic volume control and an equalizer.
07
Flexible connections
3 x HDMI 2.0, VGA, DisplayPort, RJ45, RS232, 2 x front USB and 3 x rear USB.
08
Durable surface
8 Mohs anti-glare glass protects the screen, and the panel draws up to 160 W with 0.5 W or less on standby.
Specifications
42 specificationsGeneral
ApplicationClassroom / education
Key Features20-point IR touch, Android 8.0 with Google Play, 4K UHD LG panel, 2 × 15 W speakers, OPS PC support, wireless screen sharing, annotation software, free help and training
ModelTouchscreen T6 Education 55
TypeInteractive Flat Panel
What's in the BoxHDMI cable, power cable, USB touch cable, 2 pens, 1 extendable pen
Display
Aspect Ratio16:9
Brightness400+ nits
Color Depth1.07 billion colors
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Screen Size55 inch
Touch Accuracy3 mm
Touch Points20-point multi-touch
Touch TechnologyInfrared
Viewing Angle178° (horizontal), 176° (vertical), minimum
Performance
Operating SystemAndroid 8.0
ProcessorCortex A73 x2 + A53 x2, Mali G51MP2 GPU
RAM3 GB DDR4
Storage64 GB eMMC 5.1
Audio
Audio InVGA audio × 1, 3.5 mm microphone × 1
Audio Out3.5 mm headphone × 1
DisplayPortDisplayPort × 1
Speaker Configuration2 × 15 W built-in left/right speakers, Dolby sound
Speaker Output2 × 15 W
Connectivity
EthernetRJ45 × 1
HDMI InputsHDMI 2.0 × 3
Input Voltage100–240 V AC, 50/60 Hz
OPS SlotOPS PC support (optional OPS PC)
SD Card SlotTF/SD card × 1
Serial PortRS232 × 1
Touch USB PortsTouch USB × 2
USB PortsUSB × 2 (front), USB × 3 (rear)
VGA InputVGA × 1
Wi-FiWi-Fi dual-band 2.4 GHz / 5 GHz (5 GHz hotspot)
Power
Power Consumption≤ 160 W (rated)
Standby Power≤ 0.5 W
Physical
Dimensions1267 x 790 x 86 mm
Shipping Dimensions1430 x 927 x 236 mm
Shipping Weight50.0 kg
Surface Protection8 Mohs anti-glare glass
VESA Mount400 x 400 mm
Weight40.0 kg
Downloads
Manufacturer documents for the OneScreen Touchscreen T6 Education 55-inch 4K Interactive Flat Panel — datasheets, manuals, drawings and certificates.
- Datasheet – Touchscreen T6 Education – OneScreen-Touchscreen-Education-6-55-Sales-Sheet
- Datasheet – Touchscreen T6 Education – OneScreen-Touchscreen-Education-6-65-Sales-Sheet
- Datasheet – Touchscreen T6 Education – OneScreen-Touchscreen-Education-6-75-Sales-Sheet
- Datasheet – Touchscreen T6 Education – OneScreen-Touchscreen-Education-6-86-Sales-Sheet
- Datasheet – Touchscreen T6 Education – OneScreen-Touchscreen-Education-6-98-Sales-Sheet
- User manual – OneScreen Touchscreen T6 Business / Touchscreen T6 Education
Questions
Can’t find your answer? Ask on WhatsApp
What is the resolution and brightness of the OneScreen Touchscreen T6 Education 55?
The 55-inch panel is an LG 4K UHD display at 3840 x 2160 resolution with a 60 Hz refresh rate. Brightness is listed as 400+ cd/m², with viewing angles of 178° horizontal and 176° vertical and 1.07 billion colors. The glass has anti-glare 8 Mohs surface protection.
What operating system and software does the OneScreen Touchscreen T6 Education 55 include?
It runs Android 8.0 with full Google Play access and multi-user login, on a Cortex A73 x2 and A53 x2 processor with 3 GB DDR4 and 64 GB eMMC storage. OneScreen Annotate, Write, Swap, Central, Hype and EShare are listed, with the first year of cloud services included.
How many touch points does the OneScreen Touchscreen T6 Education 55 support?
It supports 20 touch points on infrared touch with 3 mm accuracy. It offers palm detection and pen and touch differentiation, and annotation works over any source. Touch is compatible with Windows 10, 8, 7 and XP, Linux, Mac, Android 8.0 and Chrome. Two pens and one extendable pen are supplied.
Which ports does the OneScreen Touchscreen T6 Education 55 have, and can I add a PC or camera?
Inputs are 3 x HDMI 2.0, VGA with audio, DisplayPort, a 3.5 mm microphone, 2 x touch USB, TF/SD card and RJ45, with RS232 and USB on the front and rear. An optional OPS PC (Core i5 or i7) and an optional OneScreen web or PTZ camera can be added.
How is the OneScreen Touchscreen T6 Education 55 mounted, and how heavy is it?
The panel mounts on a 400 x 400 mm VESA pattern. It measures about 1267 x 790 x 86 mm and weighs 40.0 kg, with a rated power of up to 160 W on 100–240 V AC. Procure.ae can arrange delivery and installation across the UAE.
