OneScreenInteractive Flat PanelsSKU Touchscreen T5 Business 75

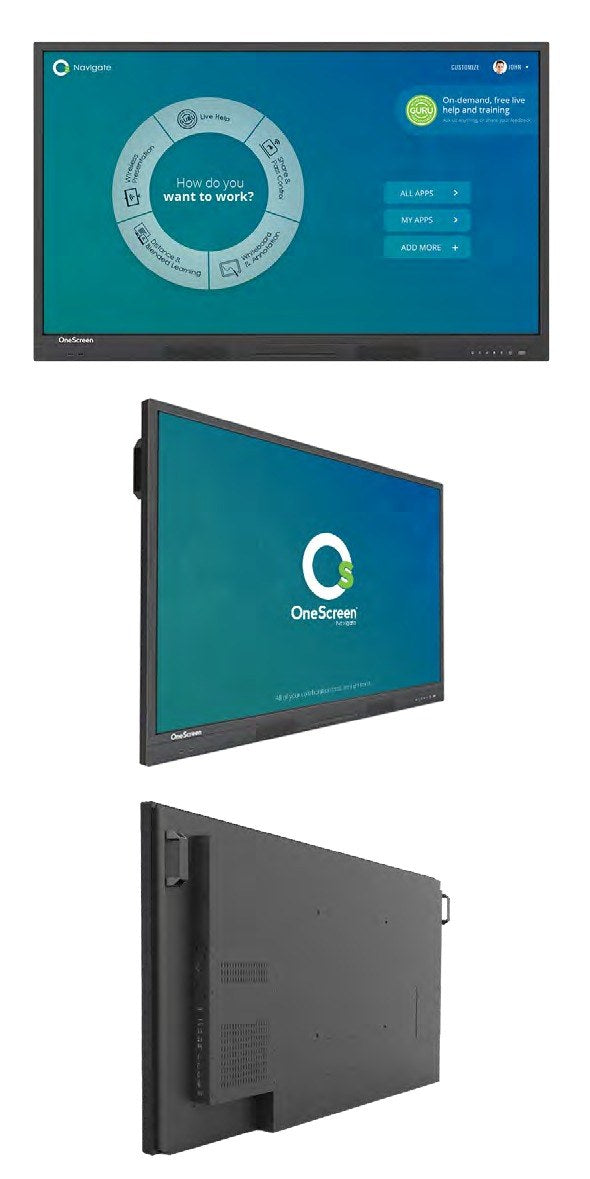

OneScreen Touchscreen T5 Business 75-inch 4K Interactive Flat Panel
The OneScreen Touchscreen T5 Business 75-inch is a 4K UHD interactive flat panel (smart board) with 20-point infrared touch, 400 nits brightness and built-in Android 6. It is designed for meeting rooms and training spaces that need annotation, screen sharing and video collaboration. This model is discontinued; Procure.ae can confirm availability in the UAE.
The T5 Business 75-inch has a 75-inch TFT LED panel with a 3840 x 2160 (4K UHD) resolution, 400 nits brightness, a 60 Hz refresh rate, a 0.430 mm pixel pitch and a 178° viewing angle, with support for 10-bit colour (1.07 billion colours). Touch is infrared with 20 simultaneous points for finger or stylus, 2 mm accuracy and a response time under 8 ms. Dolby stereo speakers deliver 15 W + 15 W, and the 8 Mohs glass is anti-glare.
The panel runs Android 6 on a quad-core Cortex-A53 1.5 GHz processor with 2 GB RAM and 64 GB storage, with access to the Google Play store. It supports BYOD screen sharing from Windows, macOS, Android, iOS and ChromeOS devices, up to 4 devices at once, with dual-band Wi-Fi and Bluetooth 4.0. Inputs include 3 × HDMI, VGA and DisplayPort, and a flush wall mount (VESA 600 x 400 mm) is supplied. Annotation, polling and remote management come from the OneScreen software package.
Screen Size
75 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
400 nits
Touch Technology
Infrared
- 4K UHD Display
- 20-Point Infrared Touch
- Built-In Android 6
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
4K UHD Display
3840 x 2160 resolution at 60 Hz with 400 nits brightness and a 178° viewing angle.
02
20-Point Infrared Touch
Finger or stylus input with 2 mm accuracy and a response time under 8 ms.
03
Built-In Android 6
Quad-core Cortex-A53 1.5 GHz, 2 GB RAM, 64 GB storage and Google Play store access.
04
Wireless Screen Sharing
OneScreen eShare streams up to 4 devices at once from Windows, macOS, Android, iOS and ChromeOS.
05
Annotation and Whiteboard
OneScreen Write lets users write on any content and save or share it by QR code or email.
06
Dolby Stereo Speakers
Built-in 15 W + 15 W speakers.
07
Extensive Connectivity
3 × HDMI in, VGA, DisplayPort, 2 × RJ-45, RS-232 and 5 multimedia USB ports that auto-switch between Android and an OPS PC.
08
Included Accessories
Flush wall mount kit (VESA 600 x 400 mm), remote control, 2 styluses, extendable wand and cables.
Specifications
41 specificationsGeneral
CompatibilityWindows, macOS, Android, iOS, ChromeOS (BYOD screen sharing)
Key Features4K UHD, 20-point IR touch, Android 6 with Google Play, Dolby stereo speakers, screen sharing up to 4 devices, flush wall mount included
ModelTouchscreen T5 Business 75
TypeInteractive Flat Panel
What's in the BoxWall mount kit, remote control, HDMI cable, touch USB cable, VGA cable, AUX cable, power cable, 2 styluses, extendable wand
Display
Brightness400 nits
Color Depth10-bit (1.07 billion colours)
Display TypeTFT LED
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Screen Size75 inch
Touch Accuracy2 mm
Touch Points20-point multi-touch
Touch Response Time<8 ms
Touch TechnologyInfrared
Viewing Angle178°
Performance
Operating SystemAndroid 6
ProcessorQuad-core Cortex-A53, 1.5 GHz
RAM2 GB
Storage64 GB
Audio
Audio InAudio In × 1, Mic In × 1
Audio OutSPDIF × 1, Earphone × 1
DisplayPortDisplayPort In × 1
Speaker Output2 × 15 W (Dolby stereo)
Connectivity
BluetoothBluetooth 4.0
EthernetRJ-45 × 2
HDMI InputsHDMI In × 3
HDMI OutputsHDMI Out × 1
Input Voltage100–240 V AC, 50/60 Hz
InputsHDMI × 3, VGA × 1, DisplayPort × 1, Audio × 1, Mic × 1, YPbPr × 1, AV × 1
Serial PortRS-232 × 1
USB PortsMultimedia USB × 5 (auto-switch between Android and OPS PC)
VGA InputVGA In × 1
Wi-FiDual-band Wi-Fi (2.4 GHz and 5 GHz), 3 antennas
Physical
Dimensions1740 x 1059 x 107 mm
MountingFlush wall mount (kit supplied)
Shipping Dimensions1882 x 1212 x 282 mm
Shipping Weight93.0 kg
Surface Protection8 Mohs anti-glare glass
VESA Mount600 x 400 mm
Weight64.9 kg
Downloads
Manufacturer documents for the OneScreen Touchscreen T5 Business 75-inch 4K Interactive Flat Panel — datasheets, manuals, drawings and certificates.
- Datasheet – Touchscreen T5 Business – OneScreen-Touchscreen-t5-55-Business-Cut-Sheet
- Datasheet – Touchscreen T5 Business – OneScreen-Touchscreen-t5-65-Business-Cut-Sheet
- Datasheet – Touchscreen T5 Business – OneScreen-Touchscreen-t5-75-Business-Cut-Sheet
- Datasheet – Touchscreen T5 Business – OneScreen-Touchscreen-t5-86-Business-Cut-Sheet
- Datasheet – Touchscreen T5 Business – OneScreen-Touchscreen-t5-98-Business-Cut-Sheet
Questions
Can’t find your answer? Ask on WhatsApp
What resolution and brightness does the T5 Business 75-inch have?
The OneScreen Touchscreen T5 Business 75-inch has a 3840 x 2160 (4K UHD) TFT LED panel with 400 nits brightness, a 60 Hz refresh rate, a 0.430 mm pixel pitch and a 178° viewing angle. It supports 10-bit colour (1.07 billion colours).
How many touch points does the T5 Business 75-inch support?
It supports 20 simultaneous touch points using infrared touch, with finger or stylus input. Touch accuracy is 2 mm and the response time is under 8 ms. Two styluses and an extendable wand are included with the display.
What operating system does the OneScreen T5 Business 75-inch run?
It runs Android 6 on a quad-core Cortex-A53 1.5 GHz processor with 2 GB RAM and 64 GB storage. It has full access to the Google Play store with multi-user login, so apps such as Chrome and YouTube can be installed and used on the panel.
Which ports and wireless options does the T5 Business 75-inch offer?
Inputs are 3 × HDMI, 1 × VGA, 1 × DisplayPort, audio, microphone, YPbPr and AV. Outputs are HDMI, SPDIF, AV and earphone. It also has 2 × RJ-45, RS-232, 5 multimedia USB ports, Bluetooth 4.0 and dual-band Wi-Fi (2.4 GHz and 5 GHz).
How is the T5 Business 75-inch mounted, and how heavy is it?
A flush wall mount kit on a VESA 600 x 400 mm pattern is supplied. The panel measures about 1740 x 1059 x 107 mm and weighs 64.9 kg, so the wall and mount must be rated for the load. Procure.ae can arrange installation.
Can I buy the OneScreen Touchscreen T5 Business 75-inch in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
