OneScreen TL7 86 inch 4k Interactive Touchscreen DisplayOneScreen
Interactive Flat PanelsSKU 86-TSCRN-TL7

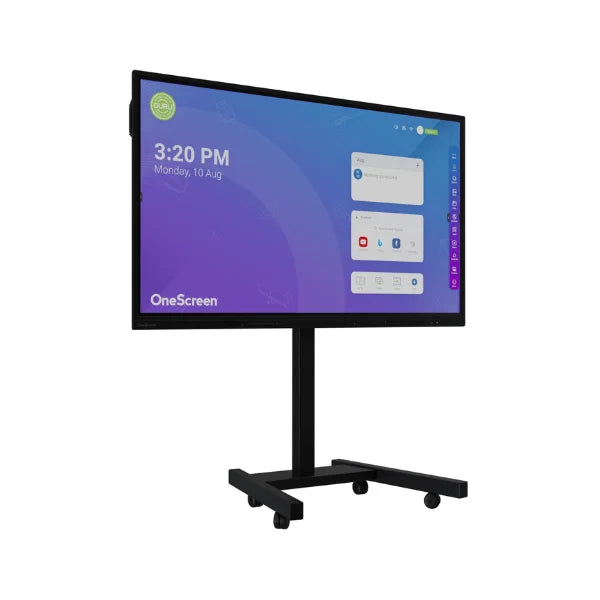

OneScreen TL7 86 inch 4k Interactive Touchscreen Display

The OneScreen TL7 86 inch 4k Interactive Touchscreen Display is a interactive flat panel available in the UAE from Procure.ae.

The OneScreen TL7 86 inch 4k Interactive Touchscreen Display is designed to transform collaborative environments in classrooms, boardrooms, and training spaces. This advanced interactive display features a stunning 4K UHD resolution on an expansive 86-inch screen, delivering crystal-clear visuals with vibrant color accuracy. With cutting-edge touchscreen technology , users enjoy seamless multi-touch capability, making presentations and group activities more engaging and productive. The OneScreen TL7 supports wireless connectivity, interactive whiteboarding, and a user-friendly interface,.

It is supplied to corporate, education, and government organisations across the UAE, with procurement-ready quotations and regional delivery.

Screen Size
86 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
400 nits
Touch Technology
Second Generation Zero Bonding
  • Ultra-Large 86" Display
  • 4K UHD Resolution
  • Multi-Touch Capability
Price
On request · best price
1
WhatsApp Call
Download spec sheet (PDF) Manufacturer datasheet (PDF)
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request

Key features

01
Ultra-Large 86" Display
Provides a spacious canvas for presentations and group collaboration.
02
4K UHD Resolution
Delivers breathtaking clarity and vivid color for detailed visuals.
03
Multi-Touch Capability
Supports up to 20 simultaneous touch points for interactive use.
04
Integrated Whiteboard Tools
Enhances brainstorming and annotation during meetings.
05
Wireless Connectivity
Easily cast devices for hassle-free sharing and presentations.
06
Durable Tempered Glass
Protects the touchscreen from scratches and impacts.
07
Easy Device Integration
Compatible with Windows, Mac, Chrome, and Android systems.
08
Built-In Speakers
Delivers rich audio for multimedia content and video conferences.

Specifications

46 specifications
General
Key FeaturesWake on LAN, Sensors: Ambient light
TypeInteractive Flat Panel
What's in the BoxHDMI Cable, Power cable, USB Touch Cable, Type C Cable, Remote control, 2 × Stylus pens with anti-bacterial coating, Wall mount
Display
BacklightLED
Blue Light FilterYes
Brightness400 nits
CameraModular
Color Depth10-bit (1.07 billion colours)
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Screen Size86 inch
Touch Accuracy±1.5 mm
Touch Points40-point multi-touch
Touch Resolution32768 x 32768
Touch Response Time< 7 ms
Touch TechnologySecond Generation Zero Bonding
Viewing Angle178° (H) / 178° (V)
Performance
Operating SystemAndroid 11
ProcessorARM 4x Cortex-A55, 1.8 GHz
RAM8 GB
Storage64 GB
Audio
Audio InAudio in × 1
Audio OutAudio out × 1
DisplayPortDisplayPort 1.2 × 1
Speaker Output2 × 16 W
Speaker TypeBuilt-in
Connectivity
BluetoothBluetooth 5.2
EthernetRJ45 (Gigabit) × 2
HDMI InputsHDMI In × 3
HDMI OutputsHDMI Out × 1
OPS SlotOptional
Serial PortRS-232 × 1
Touch USB PortsTouch USB × 2
USB PortsUSB 3.0 × 4, USB 2.0 × 1
USB-C PortsUSB-C × 1 (Front × 1)
VGA InputVGA × 1
Wi-FiWi-Fi 6 (802.11ax), 2.4/5 GHz
Power
Power Consumption350 W
Physical
Dimensions1957 x 1160 x 100 mm
Operating Humidity10% to 90% RH
Operating Temperature0°C to 40°C
Shipping Dimensions2111 x 1284 x 225 mm
Surface ProtectionAnti-glare smooth glass
VESA Mount800 x 600 mm
Weight0.23 kg
Compliance
Warranty3 years

Downloads

Manufacturer documents for the OneScreen TL7 86 inch 4k Interactive Touchscreen Display — datasheets, manuals, drawings and certificates.

Questions

Can’t find your answer? Ask on WhatsApp

What is the OneScreen interactive flat panel used for?
The OneScreen TL7 86 inch 4k Interactive Touchscreen Display is designed to transform collaborative environments in classrooms, boardrooms, and training spaces. This advanced interactive display features a stunning 4K UHD resolution on an expansive 86-inch screen, delivering crystal-clear visuals.
Does it include installation and warranty?
Procure.ae can arrange installation and provides manufacturer-backed warranty support. Contact us for the full warranty details applicable to this model.
Does this interactive panel support multi-touch and on-screen writing?
Yes — it uses Second Generation Zero Bonding touch technology, so multiple users can write and interact at the same time.
Can I run apps on it without connecting a PC?
Yes — it runs Android 11, so you can open apps, whiteboard, and browse without a separate computer.
Does it have a built-in camera for video calls?
