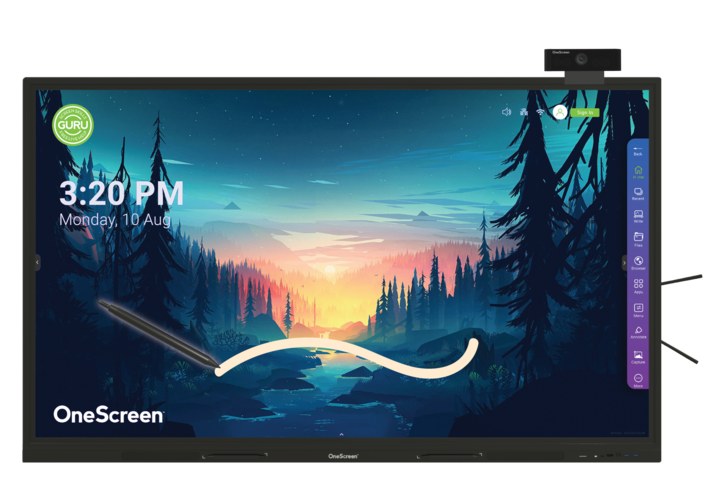

OneScreen Hubware HL7 Business 86-inch 4K UHD Interactive Flat Panel
The OneScreen Hubware HL7 Business 86-inch is a 4K UHD interactive flat panel with a built-in Windows 11 i7 OPS PC, 16 GB RAM, 256 GB storage, a 4K tracking camera and 40-point infrared touch. It is built for meeting rooms and hybrid conferencing where presenting, whiteboarding and video calls happen on one screen. Procure.ae supplies it in the UAE.
The OneScreen Hubware HL7 Business 86-inch panel has a 3840 x 2160 (4K UHD) LED display rated at 400 cd/m² with a 16:9 aspect ratio, 1.07 billion colours (10-bit), a 178° viewing angle and a 60 Hz refresh rate. Touch uses zero bonding infrared (Gen 2) technology with up to 40 touch points, 1.5 mm accuracy and a touch response time of under 7 ms. The built-in OneScreen TrackCam is a 4K UHD camera with up to 8x digital zoom and a 110° field of view, backed by an array microphone and 2 × 16 W stereo speakers.
The display runs Android 11 with 8 GB RAM and 64 GB storage, and the OneScreen OPS PC adds Windows 11 on an Intel i7 with 16 GB RAM and 256 GB storage. It supports Wi-Fi 6, Bluetooth 5.2 and Gigabit Ethernet, with a flush wall mount on a VESA 400 x 200 pattern. Included software covers OneScreen Write, OneScreen Share for up to 9 devices, OneScreen Accounts with Google and Microsoft cloud drives, and OneScreen Central device management.
Screen Size
86 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
400 nits
Touch Technology
Infrared (zero bonding, Gen 2)
- Large 4K UHD panel
- Zero bonding touch
- Built-in OPS PC
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Large 4K UHD panel
The 86-inch LED display delivers 3840 x 2160 (4K UHD) at 400 cd/m² with a 16:9 aspect ratio.
02
Zero bonding touch
Infrared (Gen 2) touch supports 40 points with 1.5 mm accuracy and a response time of under 7 ms.
03
Built-in OPS PC
A OneScreen OPS PC with Intel i7, Windows 11, 16 GB RAM and a 256 GB SSD is included.
04
Android 11 display OS
The display itself runs Android 11 with 8 GB RAM and 64 GB storage for apps without an external PC.
05
4K tracking camera
OneScreen TrackCam offers 8x digital zoom, a 110° field of view, presenter tracking and auto-framing.
06
Array microphone and speakers
An array microphone and 2 × 16 W stereo speakers are built in.
07
Wireless and wired connectivity
Wi-Fi 6, Bluetooth 5.2 and Gigabit Ethernet are supported, with 3 HDMI inputs and a 65 W USB-C port.
08
Free help and training
OneScreen's Screen Skills Guru service provides free, unlimited help and training 24/5 by chat, email, phone or video.
Specifications
48 specificationsGeneral
Key Features86-inch 4K UHD display, 40-point infrared touch, built-in Windows 11 i7 OPS PC, Android 11, 4K tracking camera, array microphone, Wi-Fi 6, 2 × 16 W speakers
ModelHubware HL7 Business 86
TypeInteractive Flat Panel with Built-in OPS PC and Camera
What's in the BoxHDMI cable, power cable, USB touch cable, USB-C cable, 2 stylus pens, display remote control, camera remote control, 2 Wi-Fi/Bluetooth antennas, Logitech wireless keyboard with touchpad
Display
Aspect Ratio16:9
BacklightLED
Blue Light FilterYes
Brightness400 nits
Camera4K UHD tracking camera, 8x digital zoom, 110° field of view, presenter tracking, auto-framing
Color Depth1.07 billion colours (10-bit)
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Screen Size86 inch
Touch Accuracy1.5 mm
Touch Points40-point multi-touch
Touch Response Time<7 ms
Touch TechnologyInfrared (zero bonding, Gen 2)
Viewing Angle178°
Performance
GraphicsIntel Iris Xe Graphics (OPS PC)
Operating SystemAndroid 11 (display); Windows 11 (OPS PC)
ProcessorQuad-core ARM Cortex A55, up to 1.8 GHz (display); Intel i7 (OPS PC)
RAM8 GB (display); 16 GB (OPS PC)
Storage64 GB (display); 256 GB (OPS PC)
Audio
Audio OutAudio Out × 1 (3.5 mm)
MicrophoneArray microphone
Speaker Output2 × 16 W stereo
Connectivity
BluetoothBluetooth 5.2
EthernetRJ45 × 2 (Gigabit Ethernet)
HDMI InputsHDMI In × 3 (1 front, 2 side)
HDMI OutputsHDMI Out × 1
Input Voltage100–240 V AC, 50/60 Hz
OPS SlotOneScreen OPS PC (Intel i7) included
PortsOPS PC: HDMI 1.4 × 1, USB 3.1 × 2, USB 2.0 × 1, USB-C (USB 3.1) × 1, RJ45 × 1, Line-out/Mic-in × 1
Serial PortRS-232 × 1
USB PortsUSB 3.0 × 4, USB 2.0 × 1, USB Touch × 2
USB-C PortsUSB-C × 1 (front, 65 W PD)
VGA InputVGA In × 1, VGA Audio In × 1
Wi-FiWi-Fi 6, 2.4 GHz / 5 GHz
Power
Power Consumption350 W (typical), 520 W (maximum)
Physical
Dimensions1957 x 1160 x 100 mm
MountingFlush wall mount
Shipping Dimensions2110 x 1283 x 225 mm
Shipping Weight75.9 kg
Surface ProtectionAnti-glare, anti-fingerprint glass
VESA Mount400 x 200 mm
Weight58.5 kg
Compliance
CertificationsRoHS, FCC (display only)
Warranty3 years
Downloads
Manufacturer documents for the OneScreen Hubware HL7 Business 86-inch 4K UHD Interactive Flat Panel — datasheets, manuals, drawings and certificates.
- Datasheet – Hubware HL7 Business – OneScreen Hubware for Business HL7 105 Spec Sheet
- Datasheet – Hubware HL7 Business – OneScreen Hubware for Business HL7 55 Spec Sheet
- Datasheet – Hubware HL7 Business – OneScreen Hubware for Business HL7 65 Spec Sheet
- Datasheet – Hubware HL7 Business – OneScreen Hubware for Business HL7 75 Spec Sheet
- Datasheet – Hubware HL7 Business – OneScreen Hubware for Business HL7 86 Spec Sheet
- Datasheet – Hubware HL7 Business – OneScreen Hubware for Business HL7 98 Spec Sheet
- User manual – Hubware HL7 Business – OneScreen-HL7-User-Manual
Questions
Can’t find your answer? Ask on WhatsApp
What size and resolution is the OneScreen Hubware HL7 Business 86-inch?
The OneScreen Hubware HL7 Business 86-inch has a 86-inch LED display with a 3840 x 2160 (4K UHD) resolution, a 16:9 aspect ratio and 400 cd/m² brightness. It offers 1.07 billion colours (10-bit), a 178° viewing angle and a 60 Hz refresh rate. The glass is anti-glare and anti-fingerprint.
How many touch points does the OneScreen Hubware HL7 Business 86-inch support?
It supports up to 40 simultaneous touch points using zero bonding infrared (Gen 2) technology. Touch accuracy is 1.5 mm and the touch response time is under 7 ms. Two stylus pens with an anti-bacterial coating are supplied with the panel.
Does the OneScreen Hubware HL7 Business 86-inch include a built-in computer?
Yes. A OneScreen OPS PC with an Intel i7 processor, Windows 11, 16 GB RAM, 256 GB storage, Intel Iris Xe graphics and TPM 2.0 is included. The display also runs Android 11 with 8 GB RAM and 64 GB storage, so apps can run without the PC.
Does the OneScreen Hubware HL7 Business 86-inch have a camera and microphone?
Yes. It has a built-in OneScreen TrackCam 4K UHD camera with 8x digital zoom, a 110° field of view, presenter tracking and auto-framing, plus an array microphone and 2 × 16 W stereo speakers. A remote control for the camera is supplied.
What ports and mounting does the OneScreen Hubware HL7 Business 86-inch have?
The display has 3 HDMI inputs, 1 HDMI output, VGA input, USB-C with 65 W power delivery, USB 3.0, USB 2.0, RS-232 and RJ-45 ports. The flush wall mount uses a VESA 400 x 200 pattern. The panel weighs 58.5 kg, so check wall strength before installation.
