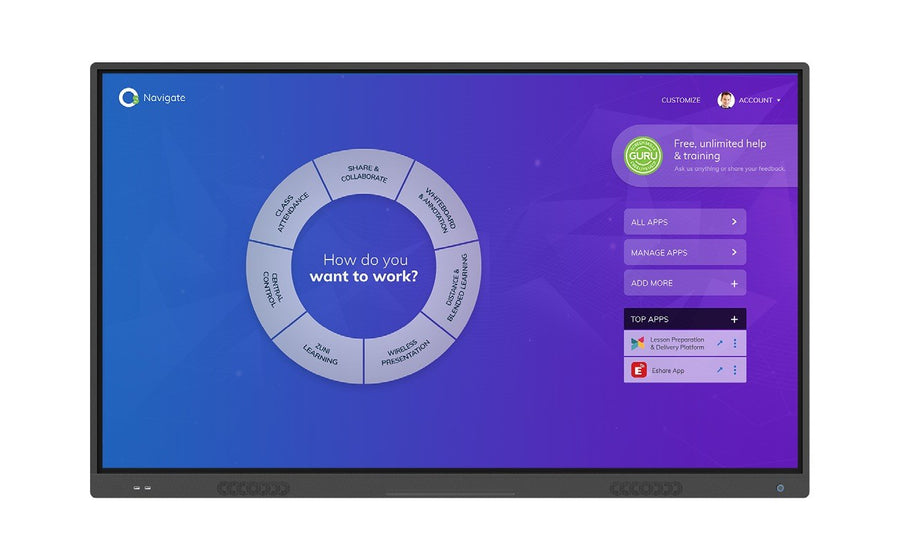

OneScreen Hubware H6 Education 75-inch 4K UHD Interactive Flat Panel
The OneScreen Hubware H6 Education 75-inch is a 4K UHD interactive flat panel for classrooms, with 20-point infrared touch, a 7th Gen Intel Core i5 OPS PC and Android 8.0. The model is discontinued. Procure.ae, an authorised reseller of OneScreen in Dubai, can confirm availability and supply it across the UAE.
The Hubware H6 Education 75 has a 75-inch panel with 3840 x 2160 resolution, a 60 Hz refresh rate, 400+ nits brightness and viewing angles of 178° horizontal and 178° vertical. Infrared touch supports 20 points with 3 mm accuracy, palm detection and pen and touch differentiation, under 8 Mohs anti-glare glass. Two 16 W built-in speakers provide Dolby sound. The panel draws up to 300 W, 0.5 W or less on standby, and weighs 50.0 kg.
The manufacturer's hardware table lists an OPS slot-in PC with an Intel Core i5 (7th Gen), 8 GB DDR4 and a 256 GB SSD, alongside an Android 8.0 system with 3 GB RAM and 64 GB eMMC. Dual-mode USB links the OPS PC and Android. Bundled software includes OneScreen Annotate whiteboarding, EShare screen sharing, Hype video conferencing and OneScreen Central management. A VESA 600 x 400 mm flush wall mount is provided.
Screen Size
75 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
400+ nits
Touch Technology
Infrared
- 4K UHD Display
- 20-Point IR Touch
- Dual System
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
4K UHD Display
3840 x 2160 at 60 Hz on a 75-inch panel with 400+ nits brightness.
02
20-Point IR Touch
Infrared touch with 3 mm accuracy, palm detection and pen and touch differentiation.
03
Dual System
Android 8.0 with 3 GB RAM plus an Intel Core i5 OPS PC with 8 GB DDR4 and a 256 GB SSD.
04
Dolby Audio
Two 16 W left/right speakers with balance, automatic volume control and an equalizer.
05
Wide Connectivity
3 x HDMI 2.0, VGA, DisplayPort, RJ45, RS-232 and TF/SD card inputs, plus a 3.5 mm headphone output.
06
Wireless Networking
Dual-band Wi-Fi at 2.4 GHz and 5 GHz with a 5 GHz hotspot; Bluetooth 4.2 on the OPS PC.
07
Classroom Software
OneScreen Annotate, Write, EShare and ZUNI Learning with Google Classroom integration.
08
Free Help and Training
Unlimited help and training from Screen Skills Guru by video, chat, phone or email.
Specifications
48 specificationsGeneral
CompatibilityTouch: Windows 10 / 8 / 7 / XP, Linux, Mac, Android 8.0, Chrome
Key Features4K UHD, 20-point infrared touch, Android 8.0, OPS PC with Intel Core i5, Dolby audio, dual-band Wi-Fi, 8 Mohs glass
ModelHubware H6 Education 75
TypeInteractive Flat Panel
What's in the BoxHDMI cable, power cable, USB touch cable, 2 pens, extendable pen, remote control
Display
Aspect Ratio16:9
Brightness400+ nits
Camera1080p Full HD webcam, ultra-wide field of view
Color Depth1.07 billion colors
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Screen Size75 inch
Touch Accuracy3 mm
Touch Points20-point multi-touch
Touch TechnologyInfrared
Viewing Angle178° (H) / 178° (V)
Performance
GraphicsMali-G51 MP2 (Android); Intel HD 630 (OPS PC)
Operating SystemAndroid 8.0; OPS PC supports Windows 7 / 8 / 10 and Linux
ProcessorAndroid: Cortex-A73 x 2 + Cortex-A53 x 2; OPS PC: Intel Core i5 (7th Gen)
RAM3 GB (Android); 8 GB DDR4 (OPS PC)
Storage64 GB eMMC (Android); 256 GB SSD (OPS PC)
Audio
Audio In3.5 mm microphone × 1
Audio Out3.5 mm headphone × 1
DisplayPortDisplayPort × 1
MicrophoneBuilt-in webcam microphone, 3.7 m range
Speaker Output2 x 16 W
Speaker TypeBuilt-in left/right speakers, Dolby sound
Connectivity
BluetoothBluetooth 4.2 (OPS PC)
EthernetRJ45 × 1
HDMI InputsHDMI 2.0 × 3
HDMI OutputsHDMI × 1 (optional)
Input Voltage100–240 V AC, 50/60 Hz
OPS SlotOPS slot-in PC (Intel Core i5, 7th Gen)
SD Card SlotTF/SD card × 1
Serial PortRS-232 × 1
Touch USB PortsTouch USB × 2
USB PortsUSB × 5 (2 front, 3 rear)
VGA InputVGA × 1 (with VGA audio input)
Wi-FiWi-Fi 2.4 GHz / 5 GHz dual-band, 5 GHz hotspot
Power
Power ConsumptionUp to 300 W
Standby Power≤ 0.5 W
Physical
Dimensions1707 x 1034 x 91 mm
Shipping Dimensions1880 x 1204 x 284 mm
Shipping Weight70.0 kg
Surface ProtectionAnti-glare glass, 8 Mohs hardness
VESA Mount600 x 400 mm
Weight50.0 kg
Compliance
CertificationsDisplay: Energy Star, FCC, UL, CE; OPS PC: CE, CB, RoHS
Downloads
Manufacturer documents for the OneScreen Hubware H6 Education 75-inch 4K UHD Interactive Flat Panel — datasheets, manuals, drawings and certificates.
- Datasheet – Hubware H6 Education – OneScreen-Hubware-Education-6-55-Sales-Sheet
- Datasheet – Hubware H6 Education – OneScreen-Hubware-Education-6-65-Sales-Sheet
- Datasheet – Hubware H6 Education – OneScreen-Hubware-Education-6-75-Sales-Sheet
- Datasheet – Hubware H6 Education – OneScreen-Hubware-Education-6-86-Sales-Sheet
- Datasheet – Hubware H6 Education – OneScreen-Hubware-Education-6-98-Sales-Sheet
- User manual – OneScreen Touchscreen T6 Business / Touchscreen T6 Education
Questions
Can’t find your answer? Ask on WhatsApp
What resolution and touch does the Hubware H6 Education 75 offer?
The Hubware H6 Education 75 offers 3840 x 2160 (4K UHD) at 60 Hz with 400+ nits brightness. Its infrared touch supports 20 points with 3 mm accuracy, palm detection and pen and touch differentiation, and it works with Windows, Linux, Mac, Android and Chrome.
Which computer and operating system does the H6 Education 75 use?
It runs Android 8.0 with 3 GB RAM and 64 GB eMMC storage. The hardware table also lists an OPS PC with an Intel Core i5 (7th Gen), 8 GB DDR4 and a 256 GB SSD that supports Windows 7, 8 and 10 or Linux, with dual-mode USB for OPS and Android.
What ports does the Hubware H6 Education 75 have?
Inputs are 3 x HDMI 2.0, VGA with audio, a 3.5 mm microphone input, DisplayPort, 2 x touch USB, a TF/SD card slot and RJ45. Connectivity includes RS-232, 2 front and 3 rear USB ports and dual-band Wi-Fi. Outputs are an optional HDMI and a 3.5 mm headphone jack.
How is the H6 Education 75 mounted?
The wall-mount interface is VESA 600 x 400 mm. A flush wall mount is provided in the box. The panel measures 1707 x 1034 x 91 mm and weighs 50.0 kg, so plan wall strength and installation labour accordingly.
How much power does the H6 Education 75 use?
Power rate is up to 300 W from a 100–240 V AC, 50/60 Hz supply, with standby at 0.5 W or less. The panel is certified for Energy Star, FCC, UL and CE according to the manufacturer's sheet.
