OneScreenInteractive Flat PanelsSKU Hubware H6 Business 75

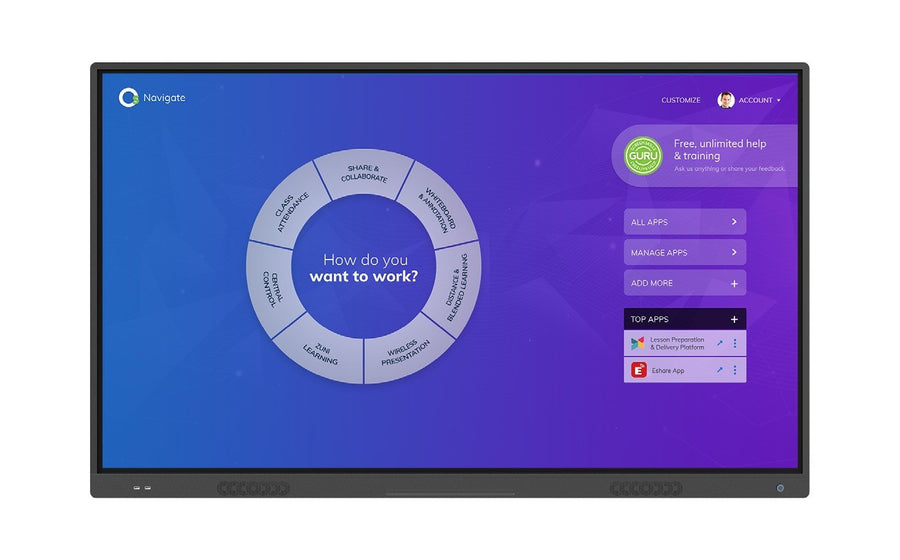

OneScreen Hubware H6 Business 75-inch Interactive Flat Panel with OPS PC
The OneScreen Hubware H6 Business 75 is a 75-inch 4K UHD interactive flat panel with a built-in OPS PC (Intel i5 7th Gen, 8 GB RAM, 256 GB SSD), an Android 8.0 system and 20-point infrared touch, designed for meeting and training rooms. Procure.ae supplies the Hubware H6 Business 75 to schools, businesses and government customers in the UAE.
The 75-inch LG-sourced panel runs at 3840 x 2160 and 60 Hz with 400+ cd/m² brightness, 1.07 billion colours and a 0.430 mm pixel pitch, behind 8 Mohs anti-glare glass. Touch is infrared with 20 points, 3 mm accuracy, palm detection and pen and finger differentiation. Two 16 W Dolby speakers handle sound. The sheet also lists a 1080p web camera with a built-in microphone (12 ft / 3.7 m range), a wireless keyboard and mouse, and two pens with an extendable pen. Rated power is up to 300 W, with standby at 0.5 W or less.
The display runs Android 8.0 with full Google Play Store access, while the OPS PC supports Windows 10, 8, 7 and Linux. Inputs include 3 x HDMI 2.0, VGA, DisplayPort and an RJ-45 port, and the 75-inch model mounts to a 600 x 400 mm VESA pattern. It includes OneScreen Hype video conferencing, Annotate whiteboard software, Write for saving and sharing annotations by QR code or email, EShare screen sharing, Navigate for a customisable home screen and Central for centralised control, with the first year of cloud subscriptions included.
Screen Size
75 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
400+ nits
Touch Technology
Infrared
- 4K UHD LG panel
- Integrated OPS PC
- Android 8.0 system
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
4K UHD LG panel
75-inch display at 3840 x 2160, 60 Hz, 400+ cd/m², with 178° left/right and 178° up/down minimum viewing angles.
02
Integrated OPS PC
Intel i5 7th Gen with Intel HD 630 graphics, 8 GB DDR4, a 256 GB SSD, gigabit Ethernet and dual-band Wi-Fi with Bluetooth 4.2.
03
Android 8.0 system
Dual-core Cortex-A73 plus dual-core Cortex-A53 with Mali-G51 MP2 graphics, 3 GB DDR4, 64 GB eMMC and Google Play Store access.
04
20-point infrared touch
20 touch points with 3 mm accuracy, palm detection, and pen and finger differentiation across Windows, Linux, Mac, Android and Chrome.
05
Dolby stereo speakers
Two 16 W speakers with balance, automatic volume control, surround sound and an equalizer.
06
1080p web camera
Full HD camera with an ultra-wide field of view, a built-in microphone with 12 ft (3.7 m) range and 2D/3D noise reduction.
07
Meeting software suite
OneScreen Hype conferencing, Annotate, Write, EShare, Navigate and Central, with the first year of cloud subscriptions included.
08
Flush wall mounting
600 x 400 mm VESA standard pattern; a flush wall mount is provided.
Specifications
53 specificationsGeneral
ApplicationMeeting rooms and training rooms
CompatibilityTouch works with Windows 10/8/7/XP, Linux, Mac, Android 8.0 and Chrome
Key Features4K UHD, built-in OPS PC, Android 8.0, 20-point IR touch, Dolby speakers, 1080p camera, Google Play, free training
ModelHubware H6 Business 75
TypeInteractive Flat Panel with OPS PC
What's in the BoxRemote control, HDMI cable, US power cable, USB touch cable, 2 pens, extendable pen, wireless keyboard and mouse
Display
Aspect Ratio16:9
Brightness400+ nits
Camera1080p Full HD web camera, ultra-wide field of view, CMOS sensor, 2D/3D noise reduction
Color Depth1.07 billion colours
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Screen Size75 inch
Touch Accuracy3 mm
Touch Points20-point multi-touch
Touch TechnologyInfrared
Viewing Angle178° (left/right, min.), 178° (up/down, min.)
Performance
GraphicsIntel HD 630 (OPS PC)
LicenseFirst year of cloud subscriptions included; OneScreen Annotate perpetual licence
Operating SystemAndroid 8.0 (display); OPS PC supports Windows 10, 8, 7 and Linux
ProcessorOPS PC: Intel i5 7th Gen; Android: 2 x Cortex-A73 + 2 x Cortex-A53
RAM8 GB DDR4 (OPS PC); 3 GB DDR4 (Android)
Storage256 GB SSD (OPS PC); 64 GB eMMC 5.1 (Android)
Audio
AudioDolby sound, balance, automatic volume control, surround sound, equalizer
Audio Out3.5 mm headphone × 1
DisplayPortDisplayPort × 1
MicrophoneBuilt-in microphone in the web camera, 3.7 m range
Speaker Output2 x 16 W
Connectivity
BluetoothBluetooth 4.2 (OPS PC)
Conference CallingOneScreen Hype video conferencing with screen sharing, recording and transcription
EthernetRJ-45 × 1 (OPS PC: gigabit RJ-45)
HDMI InputsHDMI 2.0 × 3
Input Voltage100–240 V AC, 50/60 Hz
InputsHDMI 2.0 × 3, VGA × 1, VGA audio × 1, 3.5 mm mic × 1, DisplayPort × 1, Touch USB × 2, TF/SD × 1, RJ-45 × 1
OPS SlotOPS PC included: 6 x USB 3.0, 2 x USB 2.0, RJ-45 GbE, HDMI out, VGA out, line out, mic in
PortsRS-232 × 1, RJ-45 × 1, USB × 2 (front), USB × 3 (rear), 3.5 mm headphone out × 1
SD Card SlotTF/SD card × 1
Serial PortRS-232 × 1
Touch USB PortsTouch USB × 2
USB PortsUSB × 2 (front), USB × 3 (rear); OPS PC: USB 3.0 × 6, USB 2.0 × 2
VGA InputVGA × 1 (with VGA audio input)
Wi-FiDual-band 2.4 GHz / 5 GHz
Power
Power Consumption≤300 W (rated)
Standby Power≤0.5 W
Physical
Dimensions1707 x 1034 x 91 mm
MountingVESA 600 x 400 mm; flush wall mount provided
Shipping Dimensions1880 x 1204 x 284 mm
Shipping Weight70.0 kg (excluding accessories)
Surface Protection8 Mohs anti-glare glass
VESA Mount600 x 400 mm
Weight50.0 kg
Compliance
CertificationsEnergy Star, FCC, UL, CE
WarrantyAdvanced hardware replacement warranty (available at time of purchase only)
Downloads
Manufacturer documents for the OneScreen Hubware H6 Business 75-inch Interactive Flat Panel with OPS PC — datasheets, manuals, drawings and certificates.
- Datasheet – Hubware H6 Business – OneScreen-Hubware-Business-6-55-Sales-Sheet
- Datasheet – Hubware H6 Business – OneScreen-Hubware-Business-6-65-Sales-Sheet
- Datasheet – Hubware H6 Business – OneScreen-Hubware-Business-6-75-Sales-Sheet
- Datasheet – Hubware H6 Business – OneScreen-Hubware-Business-6-86-Sales-Sheet
- Datasheet – Hubware H6 Business – OneScreen-Hubware-Business-6-98-Sales-Sheet
- User manual – OneScreen Touchscreen T6 Business / Touchscreen T6 Education
Questions
Can’t find your answer? Ask on WhatsApp
What are the display specifications of the Hubware H6 Business 75?
The Hubware H6 Business 75 has a 75-inch LG panel at 3840 x 2160 (4K UHD) and 60 Hz. Brightness is 400+ cd/m², it shows 1.07 billion colours, and viewing angles are 178° left/right and 178° up/down at minimum. The glass is 8 Mohs anti-glare.
Does the Hubware H6 Business 75 run Windows and Android?
Yes. The display has a built-in Android 8.0 system with Google Play Store access and multi-user login, and it includes an OPS PC with Intel i5 7th Gen, 8 GB RAM and a 256 GB SSD. The OPS PC supports Windows 10, 8, 7 and Linux.
How many touch points does the Hubware H6 Business 75 support?
It supports 20 touch points through infrared touch, with 3 mm accuracy and palm detection. The panel tells pen and finger input apart, so users can write with a pen while resting a hand on the glass. Touch works with Windows, Linux, Mac, Android 8.0 and Chrome.
What VESA pattern does the Hubware H6 Business 75 use?
The Hubware H6 Business 75 uses a VESA 600 x 400 mm wall-mount pattern. A flush wall mount is provided with the display. The product weighs 50.0 kg without accessories, so plan the wall structure and installation team accordingly.
Can the Hubware H6 Business 75 be used for video conferencing?
Yes. It includes a 1080p Full HD web camera with a built-in microphone (12 ft / 3.7 m range), and OneScreen Hype video conferencing with screen sharing, recording and transcription. The first year of cloud-based subscriptions is included, and the display also runs third-party conferencing apps from Google Play.
Can I buy the Hubware H6 Business 75 in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
