OneScreenInteractive Flat PanelsSKU Hubware H5 75

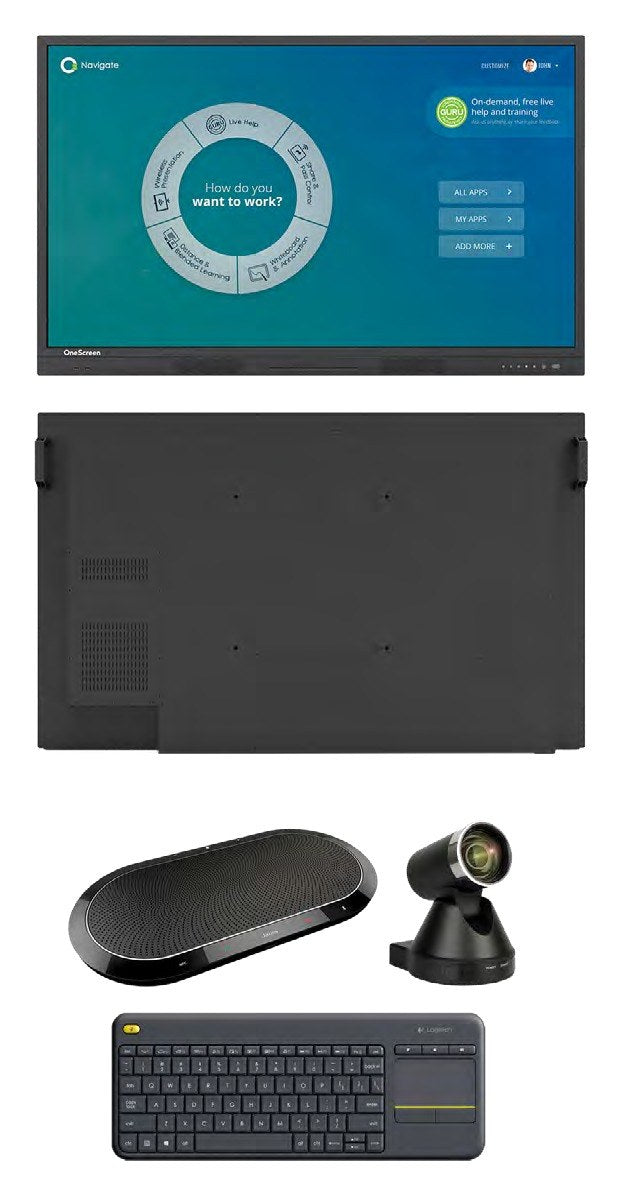

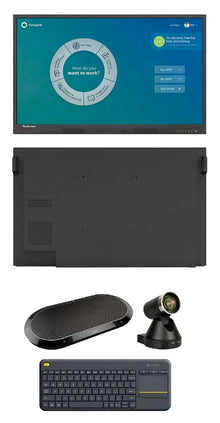

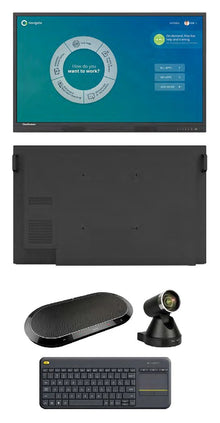

OneScreen Hubware H5 75-inch Interactive Flat Panel with OPS PC
The OneScreen Hubware H5 75 is a 75-inch 4K UHD interactive flat panel with a 20-point infrared touch screen, an Intel Core i7 OPS PC running Windows 10 Pro, an Android 6 system and a 1080p PTZ camera, made for meeting rooms and classrooms. Procure.ae supplies it in the UAE.
The OneScreen Hubware H5 75 uses a TFT LED panel at 3840 x 2160 resolution with 400 nits brightness, a 60 Hz refresh rate, 1.07 billion colours (10-bit) and a 178-degree viewing angle. Touch is 20-point infrared by finger or stylus, with 2 mm accuracy and a touch response time below 8 ms. The surface is 8 Mohs anti-glare glass, and Dolby stereo speakers deliver 15 W + 15 W.
The OPS PC combines an Intel Core i7 7th Gen processor, 8 GB RAM, a 256 GB SSD and Windows 10 Pro, while a separate Android 6 system adds Google Play Store access. Inputs include 3 HDMI, DisplayPort and VGA, and a flush wall mount kit for a 600 x 400 mm VESA pattern is provided. Procure.ae is an authorised reseller of OneScreen and delivers and installs in the UAE and across MEA.
Screen Size
75 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
400 nits
Touch Technology
Infrared
- 4K UHD display
- 20-point touch
- Windows OPS PC
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
4K UHD display
75-inch panel at 3840 x 2160 with 400 nits brightness and a 60 Hz refresh rate.
02
20-point touch
Infrared touch by finger or stylus with 2 mm accuracy and a response time below 8 ms.
03
Windows OPS PC
Intel Core i7 7th Gen, 8 GB RAM and 256 GB SSD running Windows 10 Pro.
04
Android 6 system
2 GB RAM and 64 GB storage with full Google Play Store access.
05
PTZ camera
1080p camera with 12x optical zoom, 16x digital zoom and a 72.5-degree lens.
06
Speakerphone audio
Adaptive array microphones with 4.6 m range and Dolby 15 W + 15 W stereo speakers.
07
Screen sharing
Share and stream up to 4 devices at once from Windows, Mac, Android, iOS and Chrome OS.
08
Remote management
Centralised emergency notifications, firmware upgrades and screen control.
Specifications
42 specificationsGeneral
Key Features4K UHD display, 20-point infrared touch, Intel Core i7 OPS PC with Windows 10 Pro, Android 6 with Google Play, 1080p PTZ camera, speakerphone, Dolby 15 W + 15 W speakers, remote management
ModelHubware H5 75
TypeInteractive Flat Panel with OPS PC
What's in the BoxWall mount kit, display and PTZ camera remotes, Logitech wireless keyboard with touchpad, HDMI, touch USB, VGA, AUX and power cables, 2 styluses, extendable wand
Display
Brightness400 nits
CameraOneScreen PTZ camera, 1080p, 12x optical zoom, 16x digital zoom, 72.5° lens, 170° rotation
Color Depth10-bit (1.07 billion colours)
Display TypeTFT LED
Panel TechnologyLCD
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Screen Size75 inch
Touch Accuracy2 mm
Touch Points20-point multi-touch
Touch Response Time<8 ms
Touch TechnologyInfrared
TouchscreenYes, finger or stylus
Viewing Angle178°
Performance
Operating SystemWindows 10 Pro (OPS PC); Android 6 (display)
ProcessorIntel Core i7 7th Gen (OPS PC); quad-core Cortex-A53 1.5 GHz (Android)
RAM8 GB (OPS PC); 2 GB (Android)
Storage256 GB SSD (OPS PC); 64 GB (Android)
Audio
AudioDolby stereo speakers
DisplayPortDisplayPort In × 1
MicrophoneSpeakerphone with adaptive array microphones, 4.6 m range
Speaker Output15 W + 15 W
Connectivity
BluetoothBluetooth 4.0
EthernetRJ45 × 2; Gigabit Ethernet (OPS PC)
HDMI Inputs3
HDMI Outputs1
Input Voltage100–240 V AC, 50/60 Hz
OPS SlotOPS PC fitted
PortsHDMI In × 3, DisplayPort In × 1, VGA In × 1, YPbPr × 1, AV In × 1, Audio In × 1, Mic × 1, HDMI Out × 1, SPDIF × 1, AV Out × 1, earphone × 1, RS-232 × 1, RJ45 × 2
USB PortsUSB × 5 (auto-switch between Android and OPS PC), camera USB × 1, touch USB × 2
VGA Input1
Wi-FiDual-band 802.11 a/b/g/n (2.4 GHz and 5 GHz)
Physical
Dimensions1740 x 1059 x 107 mm
Shipping Dimensions1882 x 1212 x 282 mm
Shipping Weight93.0 kg
Surface Protection8 Mohs anti-glare tempered glass
VESA Mount600 x 400 mm
Weight68.9 kg
Downloads
Manufacturer documents for the OneScreen Hubware H5 75-inch Interactive Flat Panel with OPS PC — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What resolution and touch does the Hubware H5 75 have?
The 75-inch Hubware H5 75 has a 3840 x 2160 (4K UHD) panel with 400 nits brightness and a 60 Hz refresh rate. Touch is 20-point infrared for finger or stylus input, with 2 mm accuracy and a response time below 8 ms.
Does the Hubware H5 75 have a built-in computer?
Yes. The OPS PC has an Intel Core i7 7th Gen processor, 8 GB RAM, a 256 GB SSD, gigabit Ethernet, Wi-Fi, Bluetooth and Windows 10 Pro. The display also runs Android 6 with 2 GB RAM, 64 GB storage and Google Play Store access.
Does the Hubware H5 75 include a camera and microphone?
Yes. It includes a OneScreen PTZ camera with 1080p video, 12x optical zoom, 16x digital zoom, a 72.5-degree lens and 170-degree rotation. The speakerphone has adaptive array microphones with a 4.6 m range and follows the active speaker.
How is the Hubware H5 75 mounted?
A flush wall mount kit for a 600 x 400 mm VESA pattern is supplied. The 75-inch panel measures 1740 x 1059 x 107 mm and weighs 68.9 kg. Shipping dimensions are 1882 x 1212 x 282 mm.
How do guests share their screens on the Hubware H5 75?
Up to 4 devices can share and stream at the same time using OneScreen eShare, from Windows, Mac, Android, iOS and Chrome OS devices. Wired sources can use the 3 HDMI inputs, DisplayPort or VGA, and Wi-Fi support is dual-band 802.11 a/b/g/n.
