OneScreenInteractive Flat PanelsSKU Hubware H3 84

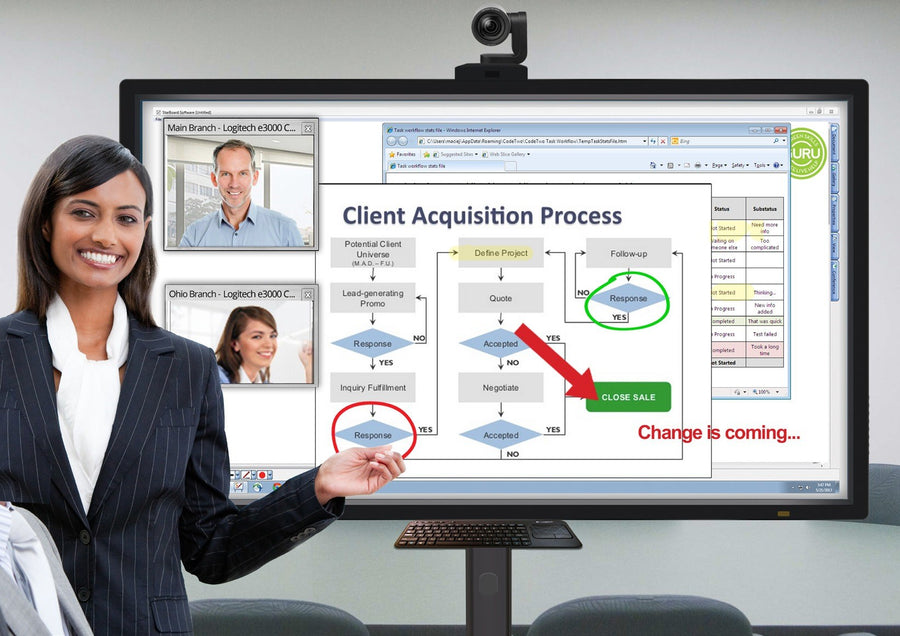

OneScreen Hubware H3 84-inch Interactive Flat Panel with OPS PC
The OneScreen Hubware H3 84 is a 84-inch interactive flat panel with an integrated Intel Core i7 OPS PC, a motorised 12x PTZ camera and 10-point infrared touch, built for meeting rooms and classrooms. It runs Windows 8.1 Professional alongside Android 4.2.2 and supports SIP and H.323 video calls. Procure.ae supplies it in the UAE.
The OneScreen Hubware H3 84 is a 84-inch interactive flat panel with a 16:9 aspect ratio, 3840 x 2160 (4K UHD) resolution, a 1,400:1 dynamic contrast ratio, a 120 Hz refresh rate and a 178-degree viewing angle. Infrared touch recognises 10 points with ±1.5 mm tolerance and a 17 ms scanning speed, and users can write with a finger or any solid object. Two built-in speakers deliver 10 W + 10 W, and the panel measures 1943 x 1156 x 84 mm without the top-mounted camera.
The integrated OPS PC uses an Intel Core i7 processor, 8 GB DDR3 memory and a 128 GB SSD with Windows 8.1 Professional, connected to the display through an 80-pin OPS port. The OneScreen PTZ camera VHD-V61U and CHAT 150 speakerphone handle video calls over SIP, H.323 and WebRTC, with up to 4 cameras supported. Procure.ae is an authorised reseller of OneScreen and delivers and installs in the UAE and across MEA.
Screen Size
84 inch
Resolution
3840 x 2160 (4K UHD)
Touch Technology
Infrared
Type
Interactive Flat Panel with OPS PC
- Interactive touch display
- Integrated OPS PC
- Dual system
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Interactive touch display
84-inch panel at 3840 x 2160 (4K UHD) with 10-point infrared touch.
02
Integrated OPS PC
Intel Core i7, 8 GB DDR3 and 128 GB SSD running Windows 8.1 Professional.
03
Dual system
Android 4.2.2 quad-core system alongside the Windows OPS PC, switched by touch gesture.
04
PTZ camera
OneScreen VHD-V61U with 12x optical zoom, 170-degree pan and -30 to +90-degree tilt.
05
Speakerphone audio
CHAT 150 speakerphone with omni-directional full-duplex microphones and echo cancellation.
06
Conferencing support
Works with SIP and H.323 services and WebRTC, with up to 4 cameras at once.
07
Connectivity
3 HDMI inputs, VGA, USB 3.0 and USB 2.0 ports, gigabit LAN and 802.11 a/b/g/n Wi-Fi.
08
Meeting security
Meetings are encrypted by default and administrators control user capabilities.
Specifications
40 specificationsGeneral
Key Features10-point infrared touch, Intel Core i7 OPS PC, PTZ camera and speakerphone, built-in OneScreen video conferencing, SIP/H.323 and WebRTC, up to 4 cameras, Wi-Fi and gigabit LAN, 10 W + 10 W speakers
ModelHubware H3 84
TypeInteractive Flat Panel with OPS PC
What's in the BoxMonitor remote control, camera remote control, Logitech K400 wireless keyboard, PTZ camera with speakerphone
Display
Aspect Ratio16:9
CameraOneScreen PTZ camera VHD-V61U, 12x optical zoom, 72.5° horizontal view, 170° pan
Contrast Ratio1,400:1
Refresh Rate120 Hz
Resolution3840 x 2160 (4K UHD)
Screen Size84 inch
Touch Accuracy±1.5 mm
Touch Points10-point multi-touch
Touch Response Time17 ms
Touch TechnologyInfrared
TouchscreenYes, writes with finger or any solid object
Viewing Angle178°
Performance
Memory TypeDDR3
Operating SystemWindows 8.1 Professional (OPS PC); Android 4.2.2 (display)
ProcessorIntel Core i7 (OPS PC); quad-core (Android)
RAM8 GB
Storage128 GB SSD
Audio
MicrophoneCHAT 150 speakerphone with omni-directional full-duplex microphones
Speaker Configuration2 built-in speakers, left and right
Speaker Output10 W + 10 W
Connectivity
Conference CallingH.323/SIP video services, WebRTC, up to 4 cameras
ConnectivityEthernet, built-in Wi-Fi (802.11 a/b/g/n)
EthernetRJ45; 10/100/1000 Mbps (OPS PC)
HDMI Inputs3
Input Voltage100–240 V AC, 50/60 Hz
OPS Slot80-pin OPS port
PortsHDMI In × 3, VGA × 1, RS-232 × 1, RJ45 × 1, YPbPr × 1, AV Out × 1, headphone × 1, SD card reader × 1, RF In × 1, touch USB × 1
ProtocolsSIP, H.323, H.329, WebRTC, LDAP/AD, HTTPS, RTSP, VISCA
USB PortsUSB 3.0 × 1, USB 2.0 × 2 (display); USB 3.0 × 2, USB 2.0 × 2 (OPS PC)
VGA Input1
Wi-FiBuilt-in 802.11 a/b/g/n
Physical
Dimensions1943 x 1156 x 84 mm (excludes top-mounted camera)
Shipping Dimensions2159 x 1422 x 254 mm
Shipping Weight149.7 kg
Weight101.6 kg
Compliance
Warranty1 year standard (advanced hardware warranty optional)
Downloads
Manufacturer documents for the OneScreen Hubware H3 84-inch Interactive Flat Panel with OPS PC — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What resolution does the Hubware H3 84 have?
The 84-inch Hubware H3 84 has a resolution of 3840 x 2160 (4K UHD) with a 16:9 aspect ratio, a 1,400:1 dynamic contrast ratio and a 120 Hz refresh rate. The viewing angle is 178 degrees, and touch input uses infrared sensing for 10 simultaneous points.
Does the Hubware H3 84 include a built-in computer?
Yes. It has an integrated OPS PC with an Intel Core i7 processor, 8 GB DDR3 memory and a 128 GB SSD, running Windows 8.1 Professional, which the manufacturer lists as compatible with Windows 7, 8.1 and 10. The display also runs Android 4.2.2, and a touch gesture switches interfaces.
Does the Hubware H3 84 come with a camera and microphone?
Yes. It includes the OneScreen PTZ camera VHD-V61U with a 12x zoom lens, 170-degree pan and -30 to +90-degree tilt, plus a CHAT 150 speakerphone with omni-directional full-duplex microphones. The camera mounts on top of the panel and has its own remote control.
Which video conferencing systems does the Hubware H3 84 support?
It supports H.323 and SIP video services and standard web conferencing applications, and it ships with built-in OneScreen video conferencing services. The manufacturer lists integration with Skype for Business, Adobe Connect and Cisco WebEx, and up to 4 cameras can be used simultaneously.
What are the size and weight of the Hubware H3 84?
The 84-inch Hubware H3 84 measures 1943 x 1156 x 84 mm without the top-mounted camera and weighs 101.6 kg. Shipping dimensions are 2159 x 1422 x 254 mm and the shipping weight is 149.7 kg. The manufacturer's specifications do not give a VESA pattern for this model.
Can I buy the Hubware H3 84 in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
