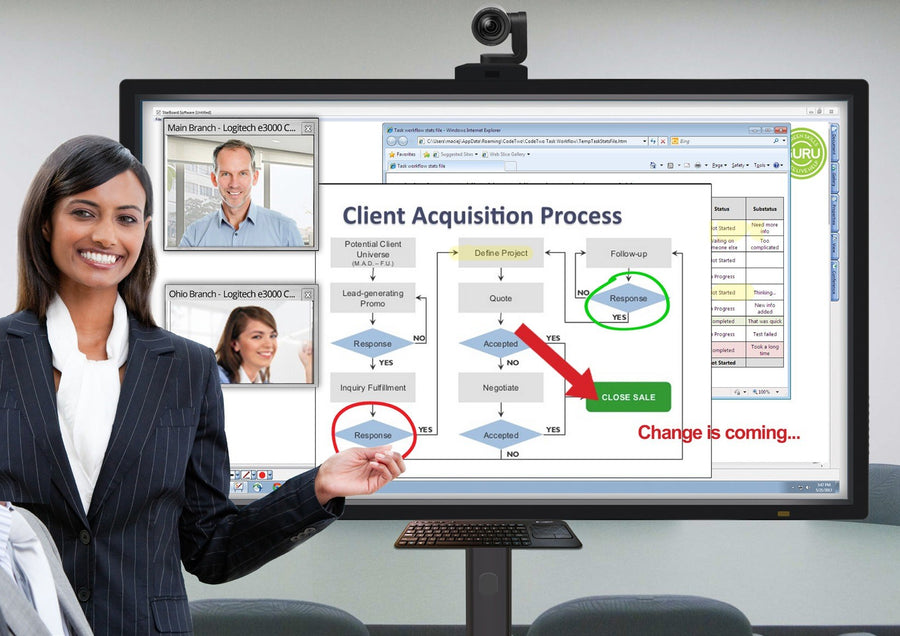

OneScreen Hubware H2 58-inch Interactive Collaboration Display

The OneScreen Hubware H2 58 is a 58-inch all-in-one interactive flat panel for meeting rooms and classrooms. It combines a 1920 x 1080 infrared touchscreen with 6-point touch, a built-in Windows 7 Professional PC with an Intel Core i7 processor and a Logitech ConferenceCam CC3000e camera. Procure.ae is an authorised reseller and supplies it in the UAE.

The OneScreen Hubware H2 58 has a 58-inch 1920 x 1080 display (Full HD) with infrared touch that works with a finger or any solid object, supports 6 touch points and has a touch tolerance of ±1.5 mm. The built-in computer runs Windows 7 Professional, upgradable to Windows 8, on an Intel Core i7 processor with 8 GB DDR3 RAM and 1 TB plus 128 GB SSD storage. A Logitech ConferenceCam CC3000e camera provides Full HD 1080p video at 30 frames per second with 10x zoom, and the panel's speakers deliver 10 W + 10 W.

The panel also runs Android 4.3 (quad-core, Android TV) for the display side, with built-in 802.11 a/b/g/n wireless and IP control, and accepts 2 HDMI, VGA, YPbPr, AV and tuner inputs, 3 USB ports, SD card reader and RS-232 in. The OneScreen software subscription adds up to 99 participants on WebRTC/OneScreen and up to 8 ad hoc and SIP/H.323 participants, with 25 guest accounts per host subscription, plus whiteboard and annotation software. It suits meeting rooms and classrooms.

Screen Size
58 inch
Resolution
1920 x 1080 (Full HD)
Touch Technology
Infrared
Type
All-in-One Interactive Flat Panel w...
  • Infrared Touch
  • Full HD Display
  • Built-in Windows PC
Price
On request · best price
1
Download spec sheet (PDF) Manufacturer datasheet (PDF)
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request

Key features

01
Infrared Touch
6-point infrared touch that needs no pressure, with 176 x 176-degree viewing angles (H x V) and protective skin glass.
02
Full HD Display
58-inch panel at 1920 x 1080 resolution, 16:9, with a 4,000:1 (dynamic) contrast ratio and a 60 Hz refresh rate.
03
Built-in Windows PC
Windows 7 Professional (upgradable to Windows 8), Intel Core i7, 8 GB DDR3 RAM and 1 TB plus 128 GB SSD.
04
Natural Writing
Write with a finger or any solid object, with 8 ms scanning speed and ±1.5 mm tolerance.
05
Conference Camera
Logitech ConferenceCam CC3000e with ZEISS auto-focus lens, 90-degree field of view, 260-degree pan, 130-degree tilt and 10x zoom.
06
Video Conferencing
Supports up to 99 participants on WebRTC/OneScreen and up to 8 ad hoc and SIP/H.323 participants, with 25 guest accounts per host subscription.
07
Input Connectivity
2 HDMI, VGA, YPbPr, AV and tuner inputs, 3 USB ports, SD card reader and RS-232 in.
08
Built-in Audio
2 built-in speakers (left/right) delivering 10 W + 10 W, plus a speakerphone with omni-directional full-duplex microphones.

Specifications

35 specifications
General
CompatibilityTouch driver supports Windows 7/8/XP/Vista, Linux, Mac OS X, Android
Key FeaturesFull HD infrared touchscreen, 6-point touch, built-in Windows 7 PC (Core i7), Logitech CC3000e camera, conferencing subscription, finger or object writing
ModelHubware H2 58
TypeAll-in-One Interactive Flat Panel with Built-in PC
What's in the BoxLogitech K400 wireless keyboard, monitor remote control, camera remote control
Display
Aspect Ratio16:9
CameraLogitech ConferenceCam CC3000e, Full HD 1080p, 30 fps, 90° field of view, 10x zoom, 260° pan, 130° tilt
Contrast Ratio4,000:1 (dynamic)
Refresh Rate60 Hz
Resolution1920 x 1080 (Full HD)
Screen Size58 inch
Touch Accuracy±1.5 mm
Touch Points6-point multi-touch
Touch Response Time8 ms (scanning speed)
Touch TechnologyInfrared
Viewing Angle176 x 176 degrees (H x V)
Performance
Operating SystemWindows 7 Professional, upgradable to Windows 8 (built-in PC); Android 4.3 (quad-core, Android TV) (display)
ProcessorIntel Dual Core i7
RAM8 GB DDR3
Storage1 TB + 128 GB SSD
Audio
MicrophoneOmni-directional full-duplex microphones (speakerphone)
Speaker Configuration2 built-in speakers (left/right)
Speaker Output10 W + 10 W
Connectivity
EthernetEthernet
HDMI InputsHDMI In × 2
Input Voltage100–240 V AC, 50/60 Hz
Ports2 HDMI, VGA, YPbPr, AV and tuner inputs, 3 USB ports, SD card reader and RS-232 in
ProtocolsSIP, H.323, H.329, WebRTC, LDAP/AD, H.264, VP8, G.711, ICE/STUN/TURN
USB PortsUSB 2.0 × 2, USB 3.0 × 1 (display); USB 2.0 × 2, USB 3.0 × 2 (PC)
Wi-Fi802.11 a/b/g/n
Physical
Dimensions1356 x 978 x 150 mm
Shipping Dimensions1615 x 991 x 280 mm
Weight68.0 kg
Compliance
Security FeaturesEncrypted meetings by default; HTTPS login and configuration
Warranty1 year standard warranty (advanced hardware warranty optional)

Downloads

Manufacturer documents for the OneScreen Hubware H2 58-inch Interactive Collaboration Display — datasheets, manuals, drawings and certificates.

Questions

Can’t find your answer? Ask on WhatsApp

What touch technology does the Hubware H2 58 use?
The OneScreen Hubware H2 58 uses infrared touch that needs no pressure and supports 6 touch points. It can be written on with a finger or any solid object, with a touch tolerance of ±1.5 mm. The viewing angle is 176 x 176 degrees (horizontal x vertical).
What computer and operating system are built into the Hubware H2 58?
Yes, it has a built-in PC. The OneScreen Hubware H2 58 includes Windows 7 Professional (upgradable to Windows 8), Intel Core i7 processor, 8 GB DDR3 RAM and 1 TB plus 128 GB SSD storage. The display side runs Android 4.3 (quad-core, Android TV). The manufacturer's sheet lists Windows 7, so check software compatibility before deployment.
Does the Hubware H2 58 include a camera for video conferencing?
Yes. The OneScreen Hubware H2 58 includes a Logitech ConferenceCam CC3000e with a ZEISS auto-focus lens, 90-degree field of view, 260-degree pan, 130-degree tilt, 10x zoom and Full HD 1080p video at 30 frames per second. It also works as a speakerphone.
Which inputs and ports does the Hubware H2 58 have?
The display has 2 HDMI, VGA, YPbPr, AV and tuner inputs, 3 USB ports, SD card reader and RS-232 in. The built-in PC adds USB 2.0 × 2, USB 3.0 × 2, VGA and HDMI.
How large and heavy is the Hubware H2 58?
The OneScreen Hubware H2 58 measures 1356 x 978 x 150 mm (W x H x D) and weighs 68.0 kg. Because of the weight, plan wall or stand mounting with an installer. Procure.ae delivers and installs interactive panels across the UAE. The manufacturer's sheet does not state the mounting standard.
