OneScreenInteractive Flat PanelsSKU Hubware H1 40

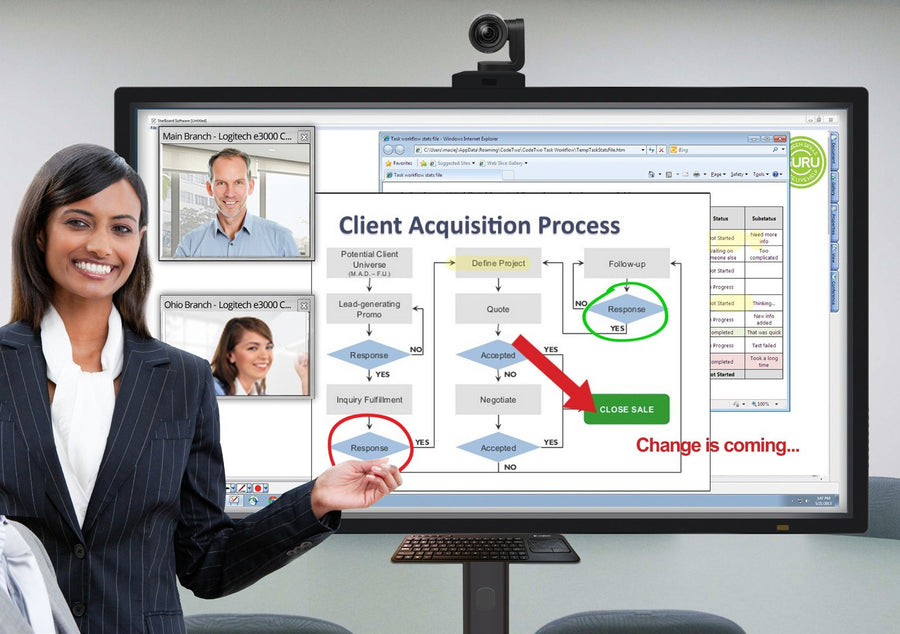

OneScreen Hubware H1 40-inch Interactive Collaboration Display
The OneScreen Hubware H1 40 is a 40-inch all-in-one interactive flat panel for meeting rooms and classrooms. It combines a 1920 x 1080 infrared touchscreen with 6-point touch, a built-in Windows 7 Professional PC and a Logitech ConferenceCam CC3000e camera. Procure.ae is an authorised reseller and supplies it in the UAE.
The OneScreen Hubware H1 40 has a 40-inch 1920 x 1080 Full HD display with infrared touch that needs no pressure and supports 6 touch points. A built-in Lenovo ThinkCentre M73 computer runs Windows 7 Professional 64-bit on an Intel Core i5-4570T processor with 4 GB DDR3 RAM (16 GB maximum) and a 128 GB SSD. A Logitech ConferenceCam CC3000e camera records Full HD 1080p video at 30 frames per second with 10x zoom, and the panel's speakers deliver 10 W + 10 W.
The display side runs Android 4.2 (dual-core) with Hitachi StarBoard Software 9.6. Inputs include 2 HDMI, 2 DisplayPort 1.2, VGA, DVI-D and component inputs, RS-232C and RJ-45. The OneScreen conferencing service supports up to 99 participants using OneScreen Connect or WebRTC and up to 4 participants using SIP and H.323. It suits meeting rooms and classrooms that want one device for video calls, whiteboarding and presenting, and it sits on the network like any other PC.
Screen Size
40 inch
Resolution
1920 x 1080 (Full HD)
Touch Technology
Infrared
Type
All-in-One Interactive Flat Panel w...
- Infrared Touch
- Full HD Display
- Built-in Windows PC
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Infrared Touch
6-point infrared touch that needs no pressure, with 178 x 178-degree viewing angles (H x V) and protective skin glass.
02
Full HD Display
40-inch panel at 1920 x 1080 resolution, 16:9, with a 4,000,000:1 (dynamic) contrast ratio and a 60 Hz refresh rate.
03
Built-in Windows PC
Lenovo ThinkCentre M73 with Windows 7 Professional 64-bit, Intel Core i5-4570T, 4 GB DDR3 RAM and a 128 GB SSD.
04
Conference Camera
Logitech ConferenceCam CC3000e with ZEISS auto-focus lens, 90-degree field of view, 260-degree pan, 130-degree tilt and 10x zoom.
05
Video Conferencing
Supports up to 99 participants using OneScreen Connect or WebRTC and up to 4 participants using SIP and H.323.
06
Input Connectivity
2 HDMI, 2 DisplayPort 1.2, VGA, DVI-D and component inputs, RS-232C and RJ-45.
07
Built-in Audio
1-way, 2 speakers delivering 10 W + 10 W, plus a speakerphone with omni-directional full-duplex microphones.
08
Secure Meetings
Meetings are encrypted by default, and login and configuration management use HTTPS.
Specifications
32 specificationsGeneral
ApplicationBundled collaboration software: Hitachi StarBoard Software 9.6
Key FeaturesFull HD infrared touchscreen, 6-point touch, built-in Windows 7 PC, Logitech CC3000e camera, OneScreen Connect conferencing
ModelHubware H1 40
TypeAll-in-One Interactive Flat Panel with Built-in PC
What's in the BoxLogitech K400 wireless keyboard, monitor remote control, Hitachi WT-1 whiteboard tablet
Display
Aspect Ratio16:9
CameraLogitech ConferenceCam CC3000e, Full HD 1080p, 30 fps, 90° field of view, 10x zoom, 260° pan, 130° tilt
Contrast Ratio4,000,000:1 (dynamic)
Refresh Rate60 Hz
Resolution1920 x 1080 (Full HD)
Screen Size40 inch
Touch Points6-point multi-touch
Touch TechnologyInfrared
Viewing Angle178 x 178 degrees (H x V)
Performance
Operating SystemWindows 7 Professional 64-bit (built-in PC); Android 4.2 (dual-core) (display)
ProcessorIntel Core i5-4570T 2.90 GHz (3.6 GHz Turbo)
RAM4 GB DDR3 (16 GB maximum)
Storage128 GB SSD
Audio
MicrophoneTwo omni-directional full-duplex microphones, 6 m (20 ft) range
Speaker Configuration1-way, 2 speakers
Speaker Output10 W + 10 W
Connectivity
EthernetGigabit Ethernet (PC); RJ-45 × 1 (display)
HDMI InputsHDMI × 2
Input Voltage100–240 V AC, 50/60 Hz
PortsVGA × 1, DVI-D In/Out × 1, HDMI × 2, DisplayPort 1.2 × 2, component video in × 1, USB × 1, stereo mini jack In/Out × 2, RJ-45 × 1, RS-232C × 1
ProtocolsSIP, H.323, H.329, WebRTC, LDAP/AD, H.264, VP8, G.711, ICE/STUN/TURN
USB PortsUSB × 1 (display); 4 × USB 2.0 and 2 × USB 3.0 (PC)
Wi-Fi802.11 b/g/n (PC)
Physical
Dimensions932 x 701 x 117 mm
Shipping Dimensions1021 x 617 x 130 mm
Weight34.0 kg
Compliance
Security FeaturesEncrypted meetings by default; HTTPS login and configuration
Downloads
Manufacturer documents for the OneScreen Hubware H1 40-inch Interactive Collaboration Display — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What touch technology does the Hubware H1 40 use?
The OneScreen Hubware H1 40 uses infrared touch that needs no pressure and supports 6 touch points. It has protective skin glass over the screen. The viewing angle is 178 x 178 degrees (horizontal x vertical).
What computer and operating system are built into the Hubware H1 40?
Yes, it has a built-in PC. The OneScreen Hubware H1 40 includes Lenovo ThinkCentre M73 PC with Windows 7 Professional 64-bit, Intel Core i5-4570T 2.90 GHz (3.6 GHz Turbo), 4 GB DDR3 RAM (16 GB maximum) and a 128 GB SSD. The display side runs Android 4.2 (dual-core). The manufacturer's sheet lists Windows 7, so check software compatibility before deployment.
Does the Hubware H1 40 include a camera for video conferencing?
Yes. The OneScreen Hubware H1 40 includes a Logitech ConferenceCam CC3000e with a ZEISS auto-focus lens, 90-degree field of view, 260-degree pan, 130-degree tilt, 10x zoom and Full HD 1080p video at 30 frames per second. It also works as a speakerphone.
Which inputs and ports does the Hubware H1 40 have?
The display inputs are: VGA × 1, DVI-D In/Out × 1, HDMI × 2, DisplayPort 1.2 × 2, component video in × 1, USB × 1, stereo mini jack In/Out × 2, RJ-45 × 1, RS-232C × 1. The built-in PC adds 4 × USB 2.0, 2 × USB 3.0, serial port, VGA, DisplayPort, RJ-45, line in/line out/mic audio, PS/2 keyboard and mouse, microphone and headphone.
How large and heavy is the Hubware H1 40?
The OneScreen Hubware H1 40 measures 932 x 701 x 117 mm (W x H x D) and weighs 34.0 kg. Because of the weight, plan wall or stand mounting with an installer. Procure.ae delivers and installs interactive panels across the UAE. The manufacturer's sheet does not state the mounting standard.
Can I buy the Hubware H1 40 in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
