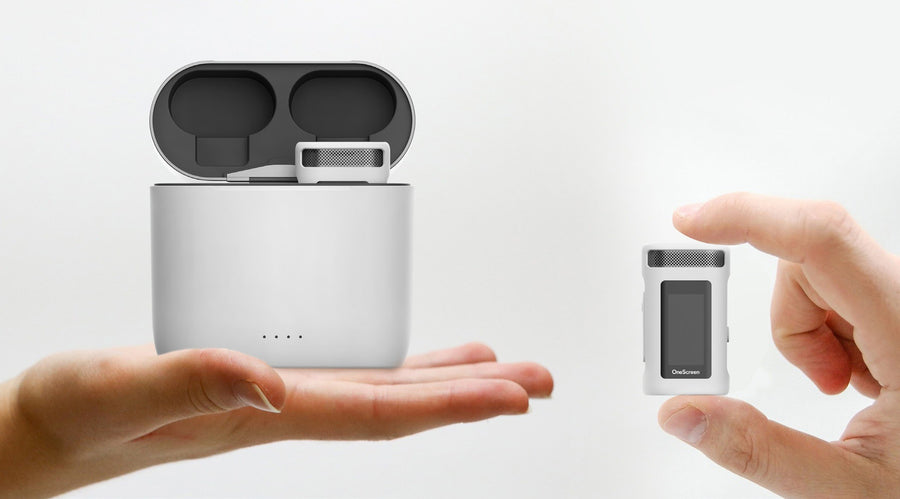

OneScreen Amplifyr wireless microphone kit with receiver and charging caseOneScreen

OneScreen Amplifyr Wireless Microphone and Voice Amplification Kit

The OneScreen Amplifyr is a wireless microphone and voice amplification kit with two lavalier microphones, a head-mounted microphone, a charging case and a receiver. It uses Bluetooth 5.2 LE Audio with under 25 ms latency and a 100 m range, and connects to OneScreen touchscreens. Procure.ae supplies it in the UAE.

The Amplifyr kit sends speech from the presenter to the display audio system over Bluetooth 5.2 with the LC3 Plus codec at 48 kHz / 16-bit. It offers a 20 Hz to 20 kHz frequency response, a 95 dB signal-to-noise ratio and 0.1% distortion at 1 kHz. Each microphone runs for more than 6 hours per charge and a 10 minute fast charge gives more than 90 minutes of use. The charging case recharges the microphones and shows power level and charging status.

The receiver plugs into a OneScreen touchscreen through its USB-C and 3.5 mm audio connections, and the microphones pair automatically when taken out of the charging case. OneScreen describes the kit as suitable for large and small classrooms, lecture halls and conference rooms, with mute control and visual indicators for status and battery level. A wall bracket and screw kit are included for the receiver.

Type
Wireless Microphone Kit
Weight
159 g (charging case with 2 microph...
  • Wireless range
  • Low latency
  • Clear speech
Price
On request · best price
1
Download spec sheet (PDF) Manufacturer datasheet (PDF)
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request

Key features

01
Wireless range
Connects at up to 100 m in an open environment using Bluetooth 5.2 LE Audio.
02
Low latency
LC3 Plus codec keeps audio latency under 25 ms at 48 kHz / 16-bit.
03
Clear speech
20 Hz to 20 kHz response, 95 dB signal-to-noise ratio and 0.1% distortion at 1 kHz.
04
Fast charging
A 1 hour microphone charge gives over 6 hours of use, and 10 minutes gives over 90 minutes.
05
Easy pairing
Microphones pair automatically when removed from the case, with infrared pairing up to 10 m.
06
Complete kit
Two lavalier microphones, a head-mounted microphone, a receiver, a charging case and mounting accessories.

Specifications

24 specifications
General
CompatibilityOneScreen touchscreens (3.5 mm audio and USB ports)
ControlsMulti-function button (power, mute, pairing), volume up/down
Key FeaturesBluetooth 5.2 LE Audio, LC3 Plus codec, latency under 25 ms, 95 dB SNR, 100 m range, fast charge 10 min for 90+ min use, auto-pairing, IR pairing
ModelAmplifyr
TypeWireless Microphone Kit
What's in the BoxCharging case, 2 lavalier microphones, head-mounted microphone, receiver, 3 windshield muffs, lanyard, storage bag, USB-C cable, 2 audio cables, wall bracket, screw kit
Performance
Storage Conditions-20 to 60 °C, 10% to 90% RH
Audio
Audio CodecsLC3 Plus (48 kHz / 16-bit)
Audio Out3.5 mm audio jack (receiver)
Frequency Response20 Hz to 20 kHz
Microphone TypeWireless lavalier (× 2) and head-mounted (× 1)
Signal-to-Noise Ratio95 dB
THD0.1% at 1 kHz
Connectivity
BluetoothBluetooth 5.2 (LE Audio)
Frequency Band2402 to 2480 MHz
Operating Range100 m (open environment)
PortsReceiver: USB-C, 3.5 mm audio
Power
Battery3.7 V Li-ion (microphone)
Battery Life> 6 hours per microphone
Power SourceRechargeable battery; USB-C 5 V charging
Physical
DimensionsMicrophone 30.5 x 51.6 x 26.2 mm; receiver 58.9 x 58.9 x 20.1 mm; charging case 84.1 x 75.9 x 39.1 mm
Operating Humidity10% to 90% RH
Operating Temperature0 to 40 °C
Weight159 g (charging case with 2 microphones); receiver 31 g

Downloads

Manufacturer documents for the OneScreen Amplifyr Wireless Microphone and Voice Amplification Kit — datasheets, manuals, drawings and certificates.

Questions

Can’t find your answer? Ask on WhatsApp

What is included with the OneScreen Amplifyr?
The kit includes a charging case, two lavalier microphones, one head-mounted microphone, a receiver, three windshield muffs, a lanyard, a storage bag, a USB-C charging cable, two audio cables, a wall-mounted bracket and a screw kit.
How does the Amplifyr connect to the display?
The receiver connects with USB-C and a 3.5 mm audio jack, and OneScreen describes it as connecting through the audio and USB ports of OneScreen touchscreens. The microphones link to the receiver over Bluetooth 5.2 and pair automatically when removed from the charging case.
What are the battery life and range of the Amplifyr?
Each microphone runs for more than 6 hours and charges in 1 hour, while the case charges in 2 hours. A 10 minute fast charge gives 90 minutes or more of use. The wireless range is up to 100 m in an open environment.
Can I buy the OneScreen Amplifyr in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
