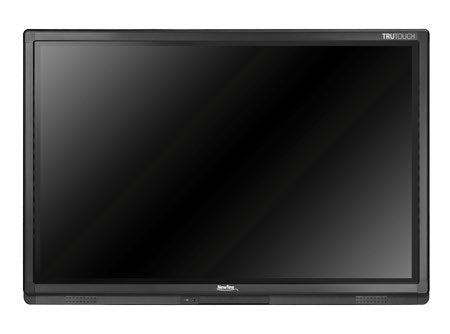

Newline TRUTOUCH FB Series 70 and 80-inch Interactive Flat Panel – TT-7017FB, TT-8017FB
The Newline TRUTOUCH FB Series is a pair of interactive flat panels: the 70-inch TT-7017FB and the 80-inch TT-8017FB. Both have a Full HD LED display, 10-point infrared touch, a Nano Pen and built-in Android 5.0.1 for whiteboarding and annotation. Procure.ae supplies Newline interactive displays in the UAE.
Both TRUTOUCH FB models have a 1920 x 1080 LED display with 10-bit colour, 370 cd/m² brightness, an 8 ms typical response time and a 178 degree viewing angle. Contrast is 4,000:1 on the TT-7017FB and 5,000:1 on the TT-8017FB. The infrared touch sensor supports 10 touch points with 1 mm positioning accuracy and a cursor speed of 125 points per second. A Nano Pen (more than 6 mm wide) is included, or users can write with a finger.
The screen is anti-glare tempered glass with 88% transparency, and the 15 W x 2 front-facing speakers fill a room without extra audio gear. Touch connects through USB-B, and the built-in Android 5.0.1 system covers writing, annotation, recording and video import. Both models can be wall mounted or placed on a floor stand (optional), and Newline lists a minimum lifetime of 30,000 working hours. The series is discontinued.
Screen Size
70 inch (TT-7017FB), 80 inch (TT-80...
Resolution
1920 x 1080 (Full HD)
Brightness
370 nits
Touch Technology
Infrared
- Infrared touch
- Nano Pen included
- Full HD display
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Infrared touch
10 touch points with 1 mm positioning accuracy and a 125 points per second cursor speed.
02
Nano Pen included
Write with the included Nano Pen (more than 6 mm wide) or with a finger.
03
Full HD display
1920 x 1080 LED panel with 10-bit colour, 370 cd/m² brightness and 178 degree viewing angle.
04
Built-in Android
Android 5.0.1 system for whiteboarding, annotation, recording and video import.
05
Anti-glare glass
Tempered glass with 88% transparency reduces reflections in bright rooms.
06
Front speakers
15 W x 2 front-facing speakers deliver room-filling audio.
07
Two sizes
70-inch TT-7017FB (50 kg net) and 80-inch TT-8017FB (71 kg net).
08
Flexible mounting
Optional wall mount or floor stand, with a minimum 30,000 hours lifetime.
Specifications
25 specificationsGeneral
Key FeaturesInfrared touch, 10 touch points, Nano Pen included, built-in Android, 15 W × 2 front speakers, anti-glare tempered glass, minimum 30,000 hours lifetime
ModelTRUTOUCH FB Series
TypeInteractive Flat Panel
Display
Aspect Ratio16:9
BacklightLED
Brightness370 nits
Color Depth10-bit
Contrast Ratio4,000:1 (70 inch), 5,000:1 (80 inch)
Resolution1920 x 1080 (Full HD)
Response Time8 ms
Screen Size70 inch (TT-7017FB), 80 inch (TT-8017FB)
Touch Accuracy1 mm
Touch Points10-point multi-touch
Touch TechnologyInfrared
Viewing Angle178°
Performance
Operating SystemAndroid 5.0.1
Audio
Speaker Output15 W × 2 (front-facing)
Connectivity
Touch USB PortsUSB-B
Power
Power Consumption< 220 W max (70 inch), < 250 W max (80 inch)
Physical
Dimensions1658 x 1004 x 99 mm (70 inch), 1900 x 1139 x 118.7 mm (80 inch)
MountingWall mount or floor stand (optional)
Shipping Dimensions1816 x 275 x 1118 mm (70 inch), 2035 x 1275 x 275 mm (80 inch)
Shipping Weight65 kg (70 inch), 92 kg (80 inch)
Surface ProtectionTempered anti-glare glass, 88% transparency
Weight50 kg (70 inch), 71 kg (80 inch)
Downloads
Manufacturer documents for the Newline TRUTOUCH FB Series 70 and 80-inch Interactive Flat Panel – TT-7017FB, TT-8017FB — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What sizes are in the Newline TRUTOUCH FB Series?
The series has two models: the TT-7017FB with a 70-inch screen (1538.88 x 865.6 mm display area) and the TT-8017FB with an 80-inch screen (1771.2 x 996.3 mm display area). Both are 16:9 with a 1920 x 1080 resolution.
How many touch points does the TRUTOUCH FB support?
Both models support 10 touch points using an infrared touch sensor, with 1 mm positioning accuracy and a cursor speed of 125 points per second. A Nano Pen wider than 6 mm is included, and you can also write with a finger. Touch communicates with a computer over USB-B.
Does the Newline TRUTOUCH FB run Android?
Yes. Newline lists Android 5.0.1 as the built-in system. The brochure highlights whiteboard writing and erasing, annotation, recording, handwriting, video import and HDMI input for connecting an external source such as a laptop.
How are the TRUTOUCH FB displays mounted?
Wall mounting and a floor stand are both listed as optional installation methods. The TT-7017FB measures 1658 x 1004 x 99 mm and weighs 50 kg net, while the TT-8017FB measures 1900 x 1139 x 118.7 mm and weighs 71 kg net.
What are the brightness and speaker specs of the TRUTOUCH FB?
Brightness is 370 cd/m² on both models, with a typical contrast ratio of 4,000:1 (70-inch) or 5,000:1 (80-inch). Front-facing speakers deliver a maximum of 15 W x 2. Maximum power consumption is below 220 W and 250 W respectively.
