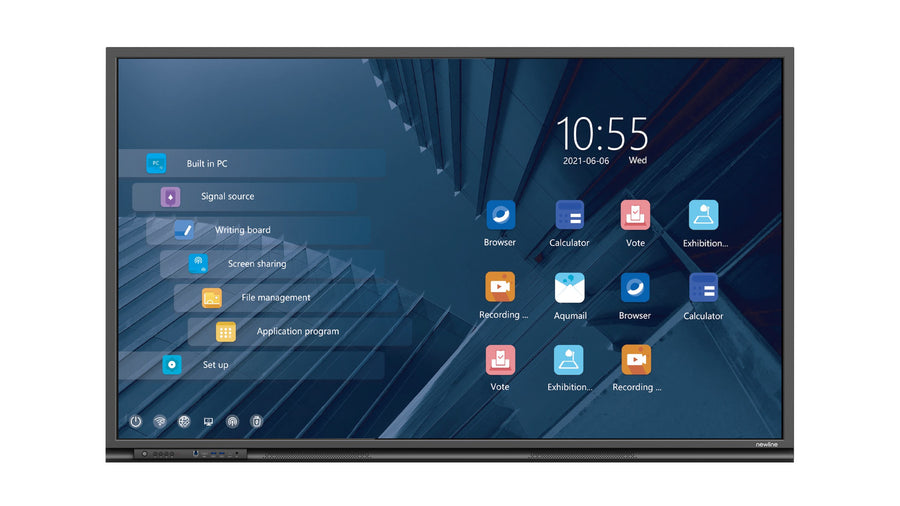

Newline S Series 75-inch 4K UHD Interactive Flat Panel – TT-7522S
The Newline TT-7522S is a 75-inch 4K UHD interactive flat panel for classrooms and meeting rooms. It runs Android 11 with 4GB RAM and 32GB storage, supports 20-point infrared touch and has an integrated PC slot. Procure.ae can confirm current availability of this model in the UAE.
The 75-inch LED panel offers 3840 x 2160 (4K UHD) resolution, 400 cd/m² brightness, a 4,000:1 dynamic contrast ratio, an 8 ms response time and a 178° viewing angle, with a rated panel life of 50,000 hours. Infrared touch registers 20 points, and the anti-glare, anti-fingerprint glass has 8H hardness and 88% ± 3% transparency. Passive pen and finger writing are supported. An Arm Cortex-A55 quad-core processor runs Android 11 with 4GB RAM and 32GB storage.
The S Series fits classrooms and meeting rooms where a single screen runs lessons and presentations. Ports include three HDMI 2.0 inputs, one DisplayPort 1.2 input, a VGA input with audio, one HDMI 2.0 output and one USB Type-C port with 65 W Power Delivery. An OPS-PC slot, a Wi-Fi module slot, RS-232 control and RJ-45 in and out connect the panel to room equipment and networks. Wall-mounted or mobile stand setups are supported.
Screen Size
75 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
400 nits
Touch Technology
Infrared
- 4K UHD resolution
- 20-point infrared touch
- Android 11 platform
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
4K UHD resolution
3840 x 2160 pixels on a 75-inch LED panel with 400 cd/m² brightness.
02
20-point infrared touch
Passive pen or finger input with 20 touch points.
03
Android 11 platform
Arm Cortex-A55 quad-core processor with 4GB RAM and 32GB storage.
04
Protective surface
Anti-glare, anti-fingerprint glass with 8H hardness.
05
Integrated PC slot
OPS-PC slot for an integrated computer module.
06
Video inputs
Three HDMI 2.0 inputs, DisplayPort 1.2 and VGA with audio.
07
USB-C power delivery
One USB Type-C port with 65 W Power Delivery.
08
Network and control
RJ-45 in and out plus an RS-232 control input.
Specifications
38 specificationsGeneral
Key Features4K UHD, 20-point touch, Android 11, 4 GB RAM, OPS-PC slot, USB-C 65 W power delivery, paper-like writing
ModelTT-7522S
TypeInteractive Flat Panel
Display
Aspect Ratio16:9
Brightness400 nits
Color Depth1.07 billion (8-bit + FRC)
Contrast Ratio4,000:1 (dynamic)
Display TypeLED
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size75 inch
Touch Points20 points
Touch TechnologyInfrared
Viewing Angle178°
Performance
Operating SystemAndroid 11
ProcessorArm Cortex-A55 quad-core
RAM4 GB
Storage32 GB
Audio
Audio InMicrophone in
Audio OutLine out, S/PDIF out
DisplayPort1 × DisplayPort 1.2
Speaker Output20 W × 2 (max)
Connectivity
EthernetRJ-45 (in and out)
HDMI Inputs3 × HDMI 2.0
HDMI Outputs1 × HDMI 2.0
Input Voltage100–240 V AC
OPS SlotOPS-PC slot
Serial PortRS-232
Touch USB Ports2 × USB Type-B
USB Ports2 × USB 3.0 Type-A, 2 × USB 2.0 Type-A, 1 × USB 2.0 Type-A to Android
USB-C Ports1 × USB Type-C (PD 65 W)
VGA Input1 × VGA (with VGA audio)
Wi-FiPluggable Wi-Fi module slot
Physical
Dimensions1735 x 1047 x 112 mm
MountingWall-mounted or mobile stand
Operating Humidity20% to 80% RH
Operating Temperature0 to 40 °C
Weight51.5 kg
Downloads
Manufacturer documents for the Newline S Series 75-inch 4K UHD Interactive Flat Panel – TT-7522S — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Is the Newline TT-7522S suitable for a classroom?
Yes. Newline describes the S Series as designed for classrooms, with embedded collaborative tools, paper-like writing and 20-point touch. It suits teachers who need one large screen for lessons, class activities and shared content.
What operating system and memory does the TT-7522S have?
It runs Android 11 on a quad-core Arm Cortex-A55 processor with a Mali-G52 GPU, 4GB RAM and 32GB of embedded storage. The OPS-PC slot can take an integrated computer module when a PC is needed in the room.
Can I connect a laptop to the TT-7522S?
Yes. The panel has three HDMI 2.0 inputs, one DisplayPort 1.2 input and one VGA input with audio, so laptops and media players can connect over HDMI, DisplayPort or VGA. One HDMI 2.0 output is also provided for a second display.
How is the TT-7522S mounted?
It can be wall-mounted or set on a mobile stand. The manufacturer's specifications do not state a VESA pattern for this model, so confirm the wall bracket size with Procure.ae before ordering to make sure the mount fits the panel.
What network and control connections does the TT-7522S have?
It has RJ-45 network in and out ports, an RS-232 control input and a Wi-Fi module slot for wireless connectivity. These connections let the panel join a wired or wireless network and be controlled from room control equipment.
