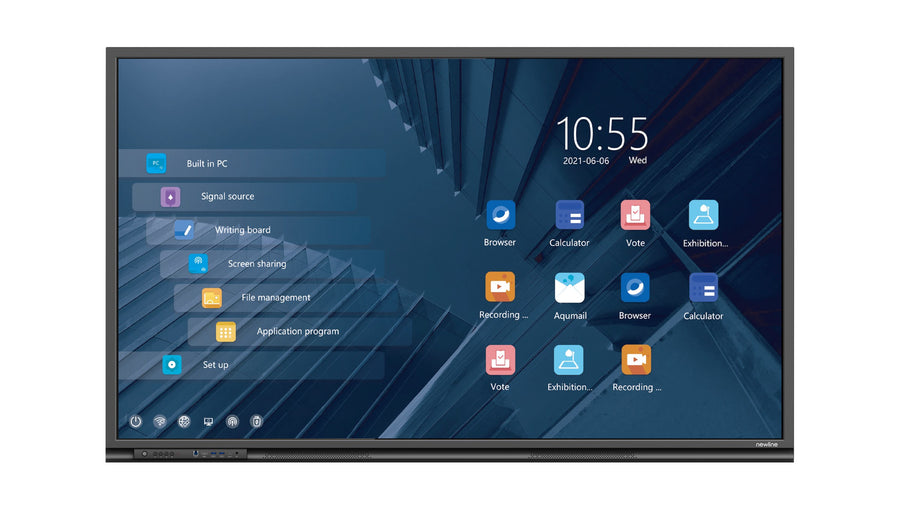

Newline S Series 65-inch Interactive Flat Panel – TT-6522S
The Newline S Series TT-6522S is a discontinued 65-inch 4K interactive flat panel for classrooms, with 20-point infrared touch and Android 11. It has an OPS-PC slot and 20 W x 2 speakers. Procure.ae can confirm current availability of this model in the UAE and recommend a current 65-inch replacement.
The TT-6522S is a 65-inch interactive flat panel with a 3840 x 2160 (4K UHD) LED display, 400 nits brightness and a 4,000:1 contrast ratio. Its infrared touch surface supports 20 points, and the glass is anti-glare, anti-fingerprint and rated 8H. The panel runs Android 11 on a quad-core Arm Cortex-A55 processor with 4 GB RAM and 32 GB storage, and its speakers are rated at 80 dB ±3 dB.
Use it in classrooms and meeting rooms where a 65-inch touch display with Android and an OPS-PC slot covers presentations and annotation. It has three HDMI 2.0 inputs, a DisplayPort 1.2 input, a VGA input, a USB Type-C port rated for 65 W power delivery and an RS-232 control port. The S Series is also listed in 75-inch and 86-inch sizes as TT-7522S and TT-8622S.
Screen Size
65 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
400 nits
Touch Technology
Infrared
- 4K UHD display
- Infrared touch
- Android 11 platform
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
4K UHD display
3840 x 2160 resolution with 400 nits brightness and 8 ms response time.
02
Infrared touch
20 touch points with passive pen or finger input.
03
Android 11 platform
Quad-core Arm Cortex-A55 processor with 4 GB RAM and 32 GB storage.
04
OPS-PC slot
One OPS-PC slot for fitting an OPS PC module.
05
Connectivity
Three HDMI 2.0 inputs, DisplayPort 1.2, VGA and USB Type-C (PD 65 W).
06
Speakers
20 W x 2 maximum output, rated at 80 dB ±3 dB.
07
Anti-glare glass
Anti-glare, anti-fingerprint glass with 8H surface hardness and 88% transparency.
08
Wi-Fi module slot
One Wi-Fi module slot for wireless connectivity.
Specifications
34 specificationsGeneral
Key Features4K UHD, 20-point touch, Android 11, OPS-PC slot, Wi-Fi module slot, 20 W x 2 speakers, anti-glare glass
ModelTT-6522S
TypeInteractive Flat Panel
Display
Aspect Ratio16:9
Brightness400 nits
Color Depth1.07 billion colors (8-bit + FRC)
Contrast Ratio4,000:1
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size65 inch
Touch Points20-point multi-touch
Touch TechnologyInfrared
Viewing Angle178°
Performance
Operating SystemAndroid 11
ProcessorArm Cortex-A55 quad-core, Mali-G52 GPU
RAM4 GB
Storage32 GB
Storage Conditions-10 to 45 °C, 20% to 90% RH (non-condensing)
Audio
DisplayPort1 × DisplayPort 1.2
Frequency Response250 Hz to 20 kHz (SPL -10 dB)
Speaker Output20 W x 2
Connectivity
HDMI Inputs3 × HDMI 2.0
HDMI Outputs1 × HDMI 2.0
Input Voltage100–240 V AC
OPS Slot1 × OPS-PC slot
Serial Port1 × RS-232
USB PortsUSB Type-C (PD 65 W) x 1, USB 3.0 Type-A x 2, USB 2.0 Type-A x 3 (one to Android), USB Type-B touch x 2
VGA Input1 × VGA
Physical
Dimensions1513 x 923 x 111 mm
MountingWall-mounted or mobile stand
Operating Humidity20% to 80% RH (non-condensing)
Operating Temperature0 to 40 °C
Surface ProtectionAnti-glare, anti-fingerprint, 8H hardness, 88% ±3 transparency
Weight39 kg (net)
Downloads
Manufacturer documents for the Newline S Series 65-inch Interactive Flat Panel – TT-6522S — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Is the TT-6522S a 4K touch display?
Yes. It has a 3840 x 2160 (4K UHD) LED display and a 20-point infrared touch surface with passive pen or finger input. The display is rated at 400 nits brightness, a 4,000:1 contrast ratio and an 8 ms response time.
Does the TT-6522S run Android?
Yes. It runs Android 11 with a quad-core Arm Cortex-A55 processor, 4 GB RAM and 32 GB storage. Its OPS-PC slot also allows an OPS PC module to be fitted for additional computing.
Which video inputs does it have?
It has three HDMI 2.0 inputs, one DisplayPort 1.2 input and one VGA input with a VGA audio input alongside. It also has a microphone input, one HDMI 2.0 output, and an RS-232 control port for system control.
Can it be wall-mounted?
Yes. The manufacturer lists wall-mounted and mobile stand installation for this model. The manufacturer's specifications do not state a VESA pattern for the TT-6522S, so confirm the bracket requirements with Procure.ae before installation.
Is it suitable for classroom use?
Yes. The manufacturer positions the S Series for intelligent classrooms, with embedded collaborative tools, extensive connectivity, ease of use and paper-like writing technology. This model is discontinued, so confirm current availability before planning a deployment.
