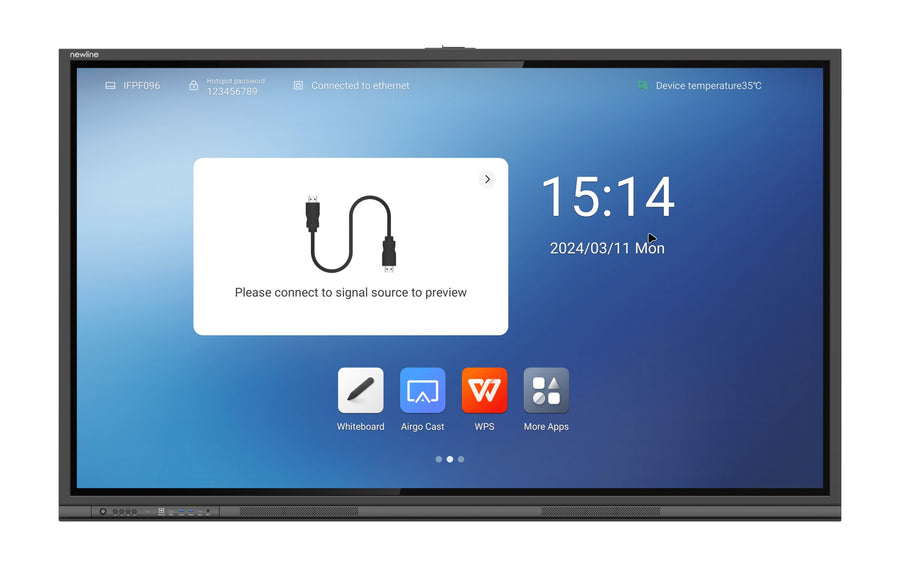

Newline S Pro Series 86-inch 4K UHD Interactive Flat Panel – TT-8623S
The Newline TT-8623S is an 86-inch 4K UHD interactive flat panel from the S Pro Series for classrooms and collaborative learning spaces. It offers 3840 x 2160 resolution, 400 nits brightness, 20-point Android touch and Android 14 with 8 GB RAM and 64 GB storage. Procure.ae supplies the TT-8623S across the UAE.
The TT-8623S uses an 86-inch LCD panel with direct LED backlight, 3840 x 2160 resolution and a 16:9 aspect ratio. Its 400 nits brightness, 4,000:1 typical contrast, 178° viewing angle, 60 Hz refresh rate and 8 ms response time define the picture, with 1.07 billion colours. The anti-glare, anti-fingerprint surface has 9H hardness and 88% transparency, and it accepts writing with a stylus or a finger. Infrared touch supports 20 points on Android and 40 points on Windows. The manufacturer rates panel life at 50,000 hours or more.
The TT-8623S suits classrooms and collaborative learning spaces where Android content and a Windows PC are both used. Dual-band Wi-Fi 6 and Bluetooth 5.2 handle wireless connections, while the RJ-45 network ports and RS-232 control input support network and room control. The integrated PC slot is available for adding a PC module. The panel can be wall-mounted or set on an optional mobile stand. Unlike the S Series, the S Pro Series offers optional components: an 8-mic array microphone, a 4K AI camera, NFC and a 15W subwoofer.
Screen Size
86 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
400 nits
Touch Technology
Infrared
- 4K UHD display
- Infrared touch
- Anti-glare surface
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
4K UHD display
3840 x 2160 resolution on an 86-inch LCD with direct LED backlight.
02
Infrared touch
20 points on Android and 40 points on Windows, with stylus or finger input.
03
Anti-glare surface
Anti-fingerprint glass with 9H hardness and 88% transparency.
04
Android 14 platform
Arm Cortex-A55 x 8 processor, 8 GB RAM and 64 GB storage with a microSD slot.
05
Wireless connectivity
Dual-band Wi-Fi 6, Bluetooth 5.2 and Wake-on-LAN support.
06
Video inputs
Three HDMI In ports, VGA In, DisplayPort and HDMI Out.
07
Integrated PC slot
Available for adding a PC module.
08
Room control
RS-232 control input and RJ-45 network in and out ports.
Specifications
40 specificationsGeneral
Key FeaturesAnti-glare and anti-fingerprint surface, 9H hardness, Stylus or finger writing, Android 14, Wi-Fi 6, Bluetooth 5.2, Integrated PC slot, Wake-on-LAN
ModelTT-8623S
TypeInteractive Flat Panel
Display
Aspect Ratio16:9
BacklightDirect LED
Brightness400 nits
Color Depth1.07 billion colours
Contrast Ratio4,000:1
DisplayActive area 1895 x 1066 mm
Panel TechnologyLCD
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size86 inch
Touch Points20-point multi-touch
Touch TechnologyInfrared
Viewing Angle178°
Performance
Operating SystemAndroid 14
ProcessorArm Cortex-A55 x 8, quad-core Mali-G52 GPU
RAM8 GB
Storage64 GB
Storage Conditions-20 to 60 °C, 0% to 90% RH (non-condensing)
Audio
Audio OutAudio Line Out × 1, S/PDIF Out × 1
Frequency Response250 Hz–20 kHz
Speaker Output80 ±3 dB, 20 W × 2 maximum
Connectivity
BluetoothBluetooth 5.2
Input Voltage100–240 V AC, 6.5 A max
OPS SlotIntegrated PC slot available
PortsHDMI In × 3, HDMI Out × 1, VGA In × 1, DisplayPort × 1, USB 3.0 × 3, USB 2.0 × 1, USB Type-B touch × 2, USB-C × 1, RJ-45 × 2, RS-232 × 1, Microphone In × 1
SD Card SlotmicroSD slot
Wi-FiDual-band 2.4 GHz + 5 GHz, Wi-Fi 6
Power
Power Consumption650 W (maximum)
Standby PowerLess than 0.5 W
Physical
Dimensions1981 x 1186 x 111 mm
MountingWall-mounted or mobile stand (optional)
Operating Humidity20% to 80% RH (non-condensing)
Operating Temperature0 to 40 °C
Shipping Dimensions2119 x 228 x 1290 mm
Shipping Weight79.5 kg (gross)
Weight63 kg
Downloads
Manufacturer documents for the Newline S Pro Series 86-inch 4K UHD Interactive Flat Panel – TT-8623S — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Is the Newline TT-8623S suitable for classrooms?
Yes. The TT-8623S is an 86-inch 4K UHD panel built for intelligent classrooms, with 20-point Android touch, stylus or finger writing and 400 nits brightness. Its 178° viewing angle keeps the picture visible from wide seating positions.
Does the TT-8623S run Android, Windows or both?
It runs Android 14 natively and has an integrated PC slot that is available for adding a PC module. Touch supports 40 points on Windows and 20 points on Android.
Can the TT-8623S be wall-mounted?
Yes. The manufacturer lists wall mounting, with a mobile stand as an optional alternative. The panel measures 1981 x 1186 x 111 mm and weighs 63 kg net, so confirm the wall structure and mounting method before installation.
Does the TT-8623S connect to networks and room control systems?
Yes. It has RJ-45 network in and out ports, dual-band Wi-Fi 6, Bluetooth 5.2 and an RS-232 control input. Wake-on-LAN support is also listed, which lets network tools switch the panel on remotely. Procure.ae can help set up the network connection during installation.
Which optional components can be added to the TT-8623S?
The manufacturer lists an 8-mic array microphone, a 4K AI camera, NFC and a 15W subwoofer as optional components. Procure.ae can advise which options suit your room layout and supports installation across the UAE.
