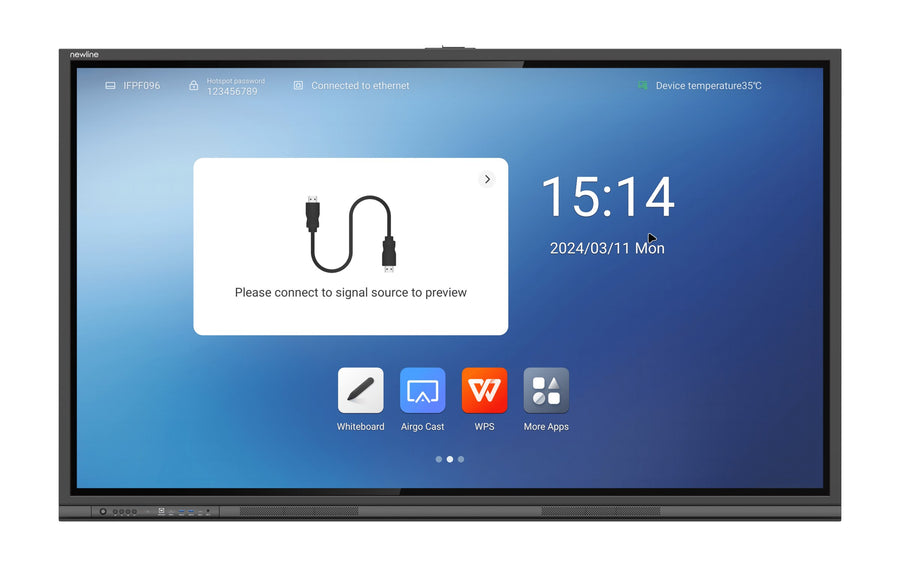

Newline S Pro Series 65-inch 4K UHD Interactive Flat Panel – TT-6523S
The Newline TT-6523S is a 65-inch 4K UHD interactive flat panel for classrooms and meeting rooms. It runs Android 14 with 8GB RAM and 64GB storage, supports 20-point touch on Android and includes an integrated PC slot. Procure.ae supplies the Newline TT-6523S across the UAE, with delivery and installation.
The 65-inch LCD panel has a 3840 x 2160 (4K UHD) resolution, 400 cd/m² brightness, a typical 4,000:1 contrast ratio, an 8 ms response time and a 178° viewing angle. Infrared touch registers 20 points on Android and 40 points on Windows. The 9H surface is anti-glare and anti-fingerprint, and paper-like writing technology supports both stylus and finger input.
Teachers and presenters can use the integrated PC slot and the RS-232 control input to fit the panel into existing room systems. Dual-band Wi-Fi 6 and Bluetooth 5.2 connect wirelessly, and RJ-45 network in and out ports support wired networking. Wall-mounted or mobile stand setups fit most rooms. Unlike the standard S Series, the S Pro offers optional components: an 8-mic array microphone, a 4K AI camera and a 15 W subwoofer.
Screen Size
65 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
400 nits
Touch Technology
Infrared
- 4K UHD resolution
- 20-point infrared touch
- Android 14 platform
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
4K UHD resolution
3840 x 2160 pixels on a 65-inch LCD panel with 400 cd/m² brightness.
02
20-point infrared touch
20 touch points on Android and 40 points on Windows.
03
Android 14 platform
Octa-core Arm Cortex-A55 processor with 8GB RAM and 64GB storage.
04
Paper-like writing
Stylus or finger input on a 9H, anti-glare and anti-fingerprint surface.
05
Integrated PC slot
Built-in slot for an integrated computer on this model.
06
Wireless connectivity
Dual-band Wi-Fi 6 (2.4 GHz and 5 GHz) and Bluetooth 5.2.
07
Built-in speakers
Two 20 W speakers with 80 dB ± 3 dB sound pressure level.
08
Optional AV add-ons
8-mic array microphone, 4K AI camera and 15 W subwoofer.
Specifications
45 specificationsGeneral
Key Features4K UHD, 20-point touch, Android 14, 8 GB RAM, Wi-Fi 6, Bluetooth 5.2, integrated PC slot, paper-like writing
ModelTT-6523S
TypeInteractive Flat Panel
Display
Aspect Ratio16:9
BacklightDirect LED
Brightness400 nits
Color Depth1.07 billion
Contrast Ratio4,000:1 (typical)
Panel TechnologyLCD
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size65 inch
Touch Points20 points (Android), 40 points (Windows)
Touch TechnologyInfrared
Viewing Angle178°
Performance
Operating SystemAndroid 14
ProcessorArm Cortex-A55 octa-core
RAM8 GB
Storage64 GB
Audio
Audio InMicrophone in
Audio OutLine out, S/PDIF out
DisplayPort1 × DisplayPort
Speaker Output20 W × 2 (max)
Connectivity
BluetoothBluetooth 5.2
EthernetRJ-45 (in and out)
HDMI Inputs3 × HDMI 2.0
HDMI Outputs1 × HDMI Out
Input Voltage100–240 V AC
OPS SlotIntegrated PC slot
PortsHDMI In × 3, VGA In × 1, DisplayPort In × 1, USB 3.0 × 3, USB-C × 1, RJ-45 × 2
SD Card SlotmicroSD
Serial PortRS-232
Touch USB Ports2 × USB Type-B
USB PortsUSB 3.0 × 3, USB 2.0 × 1
USB-C Ports1 × USB-C
VGA Input1 × VGA
Wi-FiDual-band Wi-Fi 6 (2.4 GHz and 5 GHz)
Power
Power Consumption550 W (max)
Standby PowerUnder 0.5 W
Physical
Dimensions1513 x 923 x 110 mm
MountingWall-mounted or mobile stand
Operating Humidity20% to 80% RH
Operating Temperature0 to 40 °C
Weight38 kg
Downloads
Manufacturer documents for the Newline S Pro Series 65-inch 4K UHD Interactive Flat Panel – TT-6523S — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Is the Newline TT-6523S designed for classrooms?
Yes. Newline positions the S Pro Series for intelligent classrooms, with 20-point touch, paper-like writing and an Android 14 system with 8GB RAM for lessons. Meeting rooms and training spaces can use the same 65-inch panel for presentations and collaborative sessions.
Which operating system does the TT-6523S run?
It runs Android 14 with 8GB RAM and 64GB of embedded storage. An integrated PC slot is also available for a computer module, and a microSD slot adds external storage for files and media.
Does the TT-6523S support touch with a Windows PC?
Yes. The manufacturer lists 40 touch points for Windows and 20 points for Android. The panel has two USB Type-B touch ports, and the touch function is rated for both platforms in the manufacturer specifications.
How is the TT-6523S mounted?
It can be wall-mounted or fitted to a mobile stand. The manufacturer's specifications do not state a VESA pattern for this model, so confirm the wall bracket size with Procure.ae before ordering to avoid fitting problems.
Which inputs does the TT-6523S have for laptops and media players?
It has three HDMI 2.0 inputs, one DisplayPort input, one VGA input with audio and a microphone input. USB Type-C and USB 3.0 Type-A ports are also fitted for connecting media and accessories to the panel.
