NewlineInteractive Flat PanelsSKU TT-7521Q

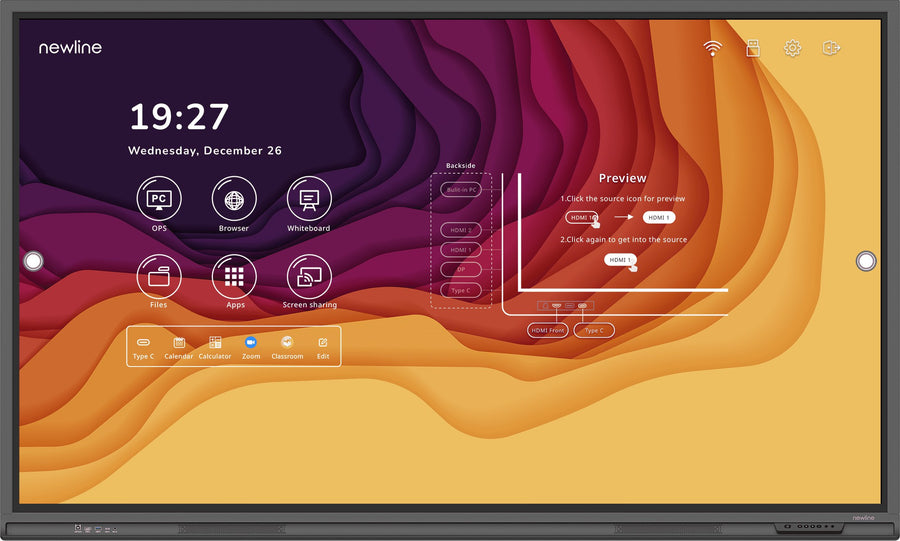

Newline Q Series 75-inch 4K UHD Interactive Flat Panel – TT-7521Q
The Newline TT-7521Q is a 75-inch 4K UHD interactive flat panel for classrooms and meeting rooms. It runs Android 11 with 4GB RAM and 32GB storage, supports 20-point infrared touch and includes Wi-Fi 6 with Bluetooth 5.2. Procure.ae supplies the Newline TT-7521Q across the UAE, with delivery and installation.
The 75-inch LED panel offers 3840 x 2160 (4K) resolution, 400 cd/m² brightness, a 5,000:1 dynamic contrast ratio, a typical 8 ms response time and a 178° viewing angle. Infrared touch registers 20 points. The glass is anti-glare, anti-fingerprint and antimicrobial, with 7H surface hardness and 88% ± 3% transparency. Passive pen or finger writing supports handwriting and annotation.
The Q Series fits classrooms and meeting rooms that need one panel for lessons and presentations. One USB Type-C port provides 65 W Power Delivery, and the OPS-PC slot and Wi-Fi module slot allow an OPS computer module and a Wi-Fi module to be fitted. Three HDMI 2.0 inputs, a DisplayPort 1.2 input and an HDMI 2.0 output connect laptops and room equipment, with RJ-45 network ports and RS-232 control.
Screen Size
75 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
400 nits
Touch Technology
Infrared
- 4K UHD resolution
- 20-point infrared touch
- Android 11 platform
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
4K UHD resolution
3840 x 2160 pixels on a 75-inch LED panel with 400 cd/m² brightness.
02
20-point infrared touch
20 touch points with passive pen or finger input.
03
Android 11 platform
Amlogic 311D2 processor with 4GB RAM and 32GB embedded storage.
04
Protective glass
Anti-glare, anti-fingerprint and antimicrobial tempered glass with 7H hardness.
05
USB-C power delivery
One USB Type-C port with 65 W Power Delivery.
06
OPS-PC slot
Accepts an OPS computer module for an integrated PC.
07
Wi-Fi 6 module
Wi-Fi 6 and Bluetooth 5.2 through a dedicated Wi-Fi module slot.
08
Built-in speakers
Two 20 W speakers with 80 dB ± 3 dB sound pressure level.
Specifications
39 specificationsGeneral
Key Features4K UHD, 20-point touch, Android 11, 4 GB RAM, Wi-Fi 6, USB-C 65 W power delivery, OPS-PC slot, paper-like writing
ModelTT-7521Q
TypeInteractive Flat Panel
Display
Aspect Ratio16:9
Brightness400 nits
Color Depth1.07 billion
Contrast Ratio5,000:1 (dynamic)
Display TypeLED
Resolution3840 x 2160 (4K UHD)
Response Time8 ms (typical)
Screen Size75 inch
Touch Points20 points
Touch TechnologyInfrared
Viewing Angle178°
Performance
Operating SystemAndroid 11
ProcessorAmlogic 311D2
RAM4 GB
Storage32 GB
Audio
Audio OutLine out, S/PDIF out
DisplayPort1 × DisplayPort 1.2
Speaker Output20 W × 2
Connectivity
BluetoothBluetooth 5.2
EthernetRJ-45 (in and out)
HDMI Inputs3 × HDMI 2.0
HDMI Outputs1 × HDMI 2.0
Input Voltage100–240 V AC
OPS SlotOPS-PC slot
SD Card SlotSD card slot
Serial PortRS-232
Touch USB Ports4 × USB Type-B
USB Ports3 × USB 3.0 Type-A, 1 × USB 3.0 Type-A to Android
USB-C Ports1 × USB Type-C (PD 65 W), 1 × USB 3.0 Type-C (no PD)
Wi-FiWi-Fi 6 (module slot)
Power
Power Consumption240 W (eco mode)
Physical
Dimensions1735 x 1051 x 122 mm
MountingWall-mounted or mobile stand
Operating Humidity20% to 80% RH
Operating Temperature0 to 40 °C
Weight52 kg
Downloads
Manufacturer documents for the Newline Q Series 75-inch 4K UHD Interactive Flat Panel – TT-7521Q — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Is the Newline TT-7521Q suitable for a classroom?
Yes. Newline describes the Q Series as an education solution, with 20-point touch, passive pen writing, 4K UHD resolution and an Android 11 system. The panel also suits meeting rooms that need one large screen for presentations and shared content.
What operating system and memory does the TT-7521Q have?
It runs Android 11 with 4GB RAM and 32GB of embedded storage. An SD card slot adds external memory for files and media, and the OPS-PC slot can take a computer module if an integrated PC is needed for the room.
Can I connect a laptop to the TT-7521Q?
Yes. The panel has three HDMI 2.0 inputs and one DisplayPort 1.2 input, so a laptop can connect over HDMI or DisplayPort. Four USB Type-B touch ports link the touch function to a computer, and the HDMI 2.0 output provides a second video connection.
How is the TT-7521Q mounted?
It supports wall mounting or a mobile stand. The manufacturer's specifications do not state a VESA pattern for this model, so confirm the wall bracket size with Procure.ae before ordering to make sure the mount fits the panel correctly.
Does the TT-7521Q have built-in wireless connectivity?
Yes. It has a Wi-Fi module slot for a Wi-Fi 6 module with Bluetooth 5.2 connectivity, so the panel can join wireless networks and pair with Bluetooth devices. The manufacturer's specifications list the Wi-Fi module as part of the panel's connectivity.
Can I buy the TT-7521Q in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
