NewlineInteractive Flat PanelsSKU TT-6521Q

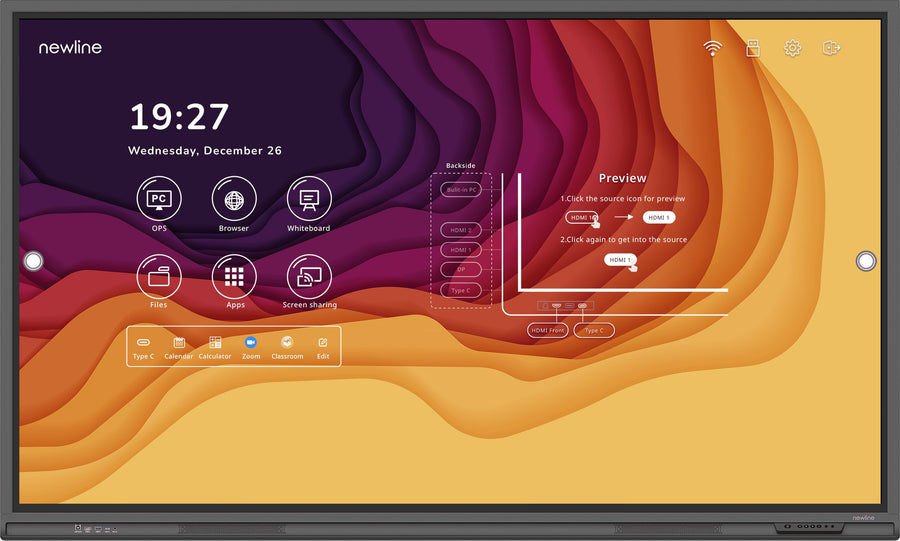

Newline Q Series 65-inch Interactive Flat Panel – TT-6521Q
The Newline Q Series TT-6521Q is a 65-inch 4K interactive flat panel for classrooms and education spaces. It has a 20-point infrared touch surface, Android 11 and an OPS-PC slot. Procure.ae supplies it in the UAE as an authorised reseller, with delivery and installation across the UAE.
The TT-6521Q is a 65-inch interactive flat panel with a 3840 x 2160 (4K UHD) LED display, 400 nits brightness and a 5,000:1 dynamic contrast ratio. Its 20-point infrared touch works with a passive pen or fingers. The panel runs Android 11 with 4 GB RAM and 32 GB storage, and it has Wi-Fi 6 and Bluetooth 5.2 for wireless connectivity. The panel specifies a 178° viewing angle and 1.07 billion colors.
Use it in classrooms, lecture rooms and meeting rooms where a large 4K touch display needs annotation and file sharing. The panel has three HDMI 2.0 inputs, a DisplayPort 1.2 input, a USB Type-C port rated for 65 W power delivery, an OPS-PC slot and a Wi-Fi module slot. Installation options are wall-mounted or on a mobile stand. Unlike the Q+ Series, this model's literature does not list a built-in camera or microphone array.
Screen Size
65 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
400 nits
Touch Technology
Infrared
- 4K UHD display
- Infrared touch
- Android 11 platform
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
4K UHD display
3840 x 2160 resolution with 400 nits brightness and 5,000:1 dynamic contrast.
02
Infrared touch
20 touch points with passive pen or finger input.
03
Android 11 platform
Runs Android 11 with 4 GB RAM and 32 GB storage.
04
OPS-PC slot
One OPS-PC slot for fitting an OPS PC module.
05
Wireless connectivity
Wi-Fi 6 and Bluetooth 5.2 through one Wi-Fi module slot.
06
Connectivity
Three HDMI 2.0 inputs, one DisplayPort 1.2 input and USB Type-C (PD 65 W).
07
Speakers
Output of 20 W x 2 rated at 80 dB ±3 dB.
08
Anti-glare glass
Anti-glare, anti-fingerprint and antimicrobial tempered glass on the touch surface.
Specifications
33 specificationsGeneral
Key Features4K UHD resolution, 20-point touch, Android 11, OPS-PC slot, Wi-Fi 6 and Bluetooth 5.2, anti-glare glass, 1.07 billion colors
ModelTT-6521Q
TypeInteractive Flat Panel
Display
Aspect Ratio16:9
BacklightLED
Brightness400 nits
Color Depth1.07 billion colors
Contrast Ratio5,000:1
Resolution3840 x 2160 (4K UHD)
Response Time8 ms (typical)
Screen Size65 inch
Touch Points20-point multi-touch
Touch TechnologyInfrared
Viewing Angle178°
Performance
Operating SystemAndroid 11
RAM4 GB
Storage32 GB
Storage Conditions-20 to 60 °C, 0% to 90% RH (non-condensing)
Audio
DisplayPort1 × DisplayPort 1.2
Speaker Output20 W x 2
Connectivity
BluetoothBluetooth 5.2
HDMI Inputs3 × HDMI 2.0
Input Voltage100–240 V AC
OPS Slot1 × OPS-PC slot
USB PortsUSB Type-C (PD 65 W) x 1, USB 3.0 Type-C x 1, USB 3.0 Type-A x 3, USB Type-B touch x 4
Wi-FiWi-Fi 6 (module slot)
Power
Power Consumption150 W (eco mode)
Physical
Dimensions1513 x 927 x 121 mm
MountingWall-mounted or mobile stand
Operating Humidity20% to 80% RH (non-condensing)
Operating Temperature0 to 40 °C
Surface ProtectionAnti-glare, anti-fingerprint, antimicrobial tempered glass, 7H
Weight39 kg (net)
Downloads
Manufacturer documents for the Newline Q Series 65-inch Interactive Flat Panel – TT-6521Q — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Is the TT-6521Q a 4K display?
Yes. The TT-6521Q has a 3840 x 2160 (4K UHD) LED display in a 16:9 format, with 400 nits brightness, 5,000:1 dynamic contrast and a 178° viewing angle. The 65-inch panel has a display area of 1428 x 803 mm.
Does the TT-6521Q support touch with a pen and fingers?
Yes. It has a 20-point infrared touch surface with passive pen or finger input. The glass is anti-glare, anti-fingerprint and antimicrobial, with 7H surface hardness and 88% transparency. The panel also supports finger touch, so both input methods work on the same surface.
What operating system and memory does it use?
It runs Android 11 with 4 GB RAM and 32 GB ROM. It also supports a 32 GB SD card for external memory, and its OPS-PC slot can take an OPS PC module. The manufacturer's quick start guide points to the Newline Assistant software package for setup.
Can it be wall-mounted?
Yes. The manufacturer lists wall-mounted and mobile stand installation for this model. The manufacturer's specifications do not state a VESA pattern for the TT-6521Q, so confirm the bracket requirements with Procure.ae before installation.
Does it connect to a laptop or PC?
Yes. It has three HDMI 2.0 inputs, a DisplayPort 1.2 input and a USB Type-C port rated for 65 W power delivery, and an OPS-PC slot is available for a PC module.
Can I buy the TT-6521Q in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
