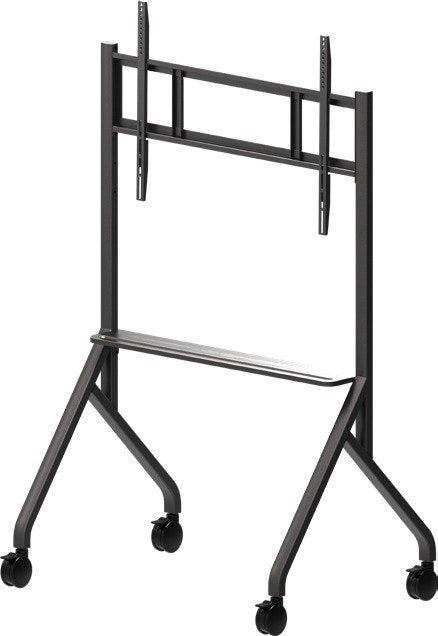

Newline Mobile Stand for 55 to 86-inch Interactive Displays – WH3310
The Newline Mobile Stand (WH3310) is a wheeled floor stand for Newline interactive displays from 55 to 86 inches. It carries up to 100 kg on four braked wheels, adjusts in height by 180 mm and includes a shelf for a laptop or other equipment. Procure.ae supplies the Newline Mobile Stand in the UAE.
The Newline Mobile Stand, model WH3310, supports displays from 55 to 86 inches with a maximum load of 100 kg and a VESA pattern of 1000 x 600 mm. The columns are aluminium and the other parts are iron, finished in dark grey. Four 100 mm rubber and metal wheels all have brakes, and the height can be adjusted by 180 mm. The stand itself weighs 22.6 kg and measures 778 x 1170 x 1786 mm.
Newline describes this version as easier to mount and lighter than earlier stands, with a complete mounting kit and a built-in laptop shelf for the equipment used during presentations. The box contains an installation manual and 12 installation screws. The manufacturer lists CE, RoHS, cart test report and EAC certificates for the stand.
Type
Mobile Display Stand
Weight
22.6 kg
- Display compatibility
- Load capacity
- Braked wheels
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Display compatibility
Fits Newline interactive displays from 55 to 86 inches on a 1000 x 600 mm VESA pattern.
02
Load capacity
Supports displays up to 100 kg.
03
Braked wheels
Four 100 mm rubber and metal wheels, all with brakes, for stable positioning.
04
Height adjustment
Display height adjusts by 180 mm.
05
Laptop shelf
Built-in shelf holds a laptop or other presentation equipment.
06
Mounting kit
Includes 12 installation screws and an installation manual.
Specifications
16 specificationsGeneral
CompatibilityNewline interactive displays, 55 to 86 inch
Key Features4 lockable wheels, 100 mm rubber/metal wheels, laptop shelf, height adjustment, complete mounting kit
ModelMobile Stand (EMEA)
TypeMobile Display Stand
What's in the BoxInstallation manual, 12 installation screws
Display
Supported Screen Sizes55 to 86 inch
Physical
AdjustabilityHeight adjustment 180 mm
ColorDark grey
Dimensions778 x 1170 x 1786 mm
Load Capacity100 kg
MaterialAluminium columns, iron for other parts
Shipping Dimensions153 x 877 x 1630 mm
Shipping Weight26.5 kg
VESA Mount1000 x 600 mm
Weight22.6 kg
Compliance
CertificationsCE, RoHS, cart test report, EAC
Downloads
Manufacturer documents for the Newline Mobile Stand for 55 to 86-inch Interactive Displays – WH3310 — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Which displays fit the Newline Mobile Stand WH3310?
It is listed for 55-inch to 86-inch displays on a 1000 x 600 mm VESA pattern, with a maximum capacity of 100 kg. Check the weight and VESA pattern of your display before ordering, and Procure.ae can confirm compatibility with a specific Newline model.
Does the WH3310 stand have brakes and a shelf?
Yes. It has four 100 mm rubber and metal wheels, and all four have brakes. A built-in laptop shelf holds presentation equipment, and the display height can be adjusted by 180 mm for different room layouts and users.
What size and weight is the Newline Mobile Stand?
The stand measures 778 x 1170 x 1786 mm with a net weight of 22.6 kg. Packed, it measures 153 x 877 x 1630 mm and weighs 26.5 kg gross. The box includes an installation manual and 12 installation screws.
