NewlineInteractive Flat PanelsSKU Elara Pro

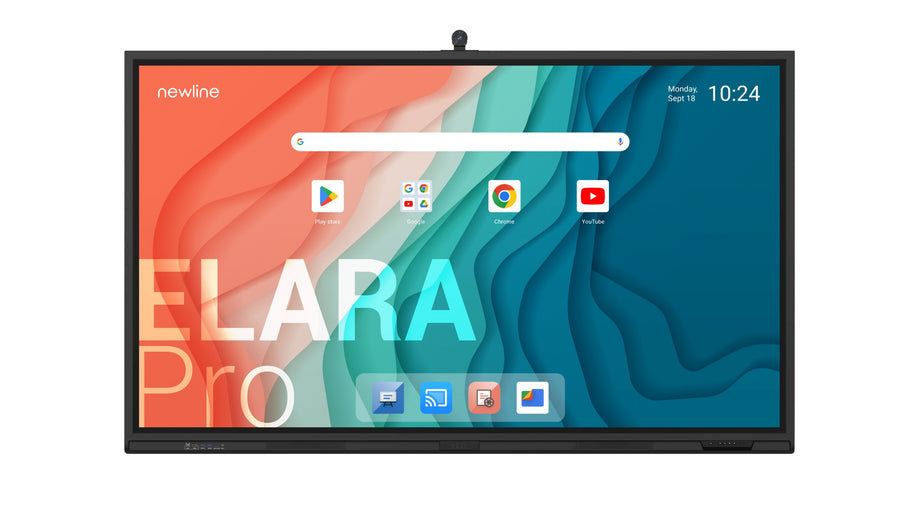

Newline Elara Pro Series Interactive Flat Panel – Elara Pro
The Newline Elara Pro is an interactive flat panel for collaborative workspaces, available in 65-inch, 75-inch and 86-inch sizes. It offers 4K UHD resolution, 20-point touch, an 8-microphone array and Android 15 with Google EDLA certification. Procure.ae supplies the Newline Elara Pro in the UAE, with quotes, delivery and installation.
The Elara Pro uses a direct LED backlit panel with 4K UHD resolution, 450 nits brightness, a 5000:1 contrast ratio and a 5 ms response time. Its Stellar touch system supports 20 touch points with an accuracy of ±1 mm, and two passive pens are included. Anti-glare and anti-fingerprint glass with 7H hardness and an antimicrobial tempered surface covers the display, and the panel has an anti-blue light backlight.
The Elara Pro runs Android 15 with a Rockchip RK3588 processor, 16 GB of RAM and 320 GB of expandable storage, and is Google EDLA certified for embedded Google Apps. It has a 4K AI camera module with a 120-degree field of view, an 8-microphone array with an 8 m pick-up distance, and 2 x 20 W front speakers with a rear subwoofer. Wi-Fi 6, Bluetooth 5.2, an OPS slot and an SDM-S slot support expansion.
Resolution
3840 x 2160 (4K UHD)
Brightness
450 nits
Touch Technology
Stellar Touch Technology
Type
Interactive Flat Panel
- Google EDLA certified
- 20-point touch
- 4K AI camera
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Google EDLA certified
Android 15 platform with Google EDLA certification and embedded Google Apps.
02
20-point touch
Stellar touch technology with 20 touch points, ±1 mm accuracy and real palm rejection.
03
4K AI camera
ModCam+ 4K camera at 30 fps with a 120-degree field of view, included with the display.
04
8-microphone array
Upper front array with an 8 m pick-up distance, echo cancellation and beamforming.
05
Subwoofer audio
2 x 20 W front speakers and a 20 W rear subwoofer for meeting and classroom use.
06
Wireless and NFC
Wi-Fi 6 and Bluetooth 5.2 module, with NFC-enabled login and multiuser profiles.
07
Expansion slots
OPS slot, SDM-S slot and a Wi-Fi module slot, plus a 180 W power out connection.
08
Anti-glare glass
Anti-glare and anti-fingerprint glass with 7H hardness and antimicrobial tempered glass.
Specifications
31 specificationsGeneral
Key FeaturesGoogle EDLA certified, 20-point touch, 4K AI camera, 8-microphone array, NFC login, Wi-Fi 6 and Bluetooth 5.2, OPS slot, Android 15
ModelElara Pro
TypeInteractive Flat Panel
Display
Aspect Ratio16:9
BacklightDirect LED with anti-blue light
Brightness450 nits
Camera4K AI camera (ModCam+), 120° field of view, 30 fps
Color Depth1.07 billion colours
Color GamutWide colour gamut
Contrast Ratio5,000:1
Resolution3840 x 2160 (4K UHD)
Response Time5 ms
Touch Accuracy±1 mm
Touch Points20-point multi-touch
Touch TechnologyStellar Touch Technology
Viewing Angle178°
Performance
GraphicsMali-G610 MC4
Operating SystemAndroid 15 (Google EDLA certified)
ProcessorRockchip RK3588 octa-core, 6 TOPS NPU
RAM16 GB (DDR4)
Storage320 GB (expandable)
Audio
Microphone8-microphone array, 8 m pick-up distance
Power Output180 W (power out connect)
Speaker Configuration2 x 20 W front-facing speakers, 1 x 20 W rear subwoofer
Connectivity
BluetoothBluetooth 5.2
ConnectivityWi-Fi 6, Bluetooth 5.2, RJ45 Gigabit, NFC
ExpansionOPS slot, SDM-S slot, Wi-Fi module slot
OPS Slot1 slot
Wi-FiWi-Fi 6
Power
Standby PowerLess than 0.5 W
Physical
Surface Protection7H hardness, anti-glare, anti-fingerprint, antimicrobial tempered glass
Downloads
Manufacturer documents for the Newline Elara Pro Series Interactive Flat Panel – Elara Pro — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What sizes does the Newline Elara Pro come in?
The Elara Pro is available in 65-inch, 75-inch and 86-inch sizes, all with 4K UHD resolution. The model codes are TT-6523QCA+, TT-7523QCA+ and TT-8623QCA+. Display area, weight, VESA and power consumption differ by size, so confirm the exact model code before ordering.
Does the Elara Pro support 20-point touch?
Yes. The display has Stellar touch technology with 20 touch points, accuracy of ±1 mm and real palm rejection. Two passive pens are included, and finger and fist input are supported for writing and annotation.
Does the Elara Pro work with Google Workspace?
Yes. The Elara Pro is Google EDLA certified and runs Android 15 with embedded Google Apps. Multiuser profiles and NFC-enabled login are included, so users can sign in and keep their own profile on a shared display.
Can the Elara Pro be wall mounted?
Yes. The VESA pattern is 600 x 400 mm for the 65-inch model and 800 x 400 mm for the 75-inch and 86-inch models. The manufacturer notes that its measures are indicative and subject to adjustment, so check the final VESA specification for the chosen size.
Does the Elara Pro have a camera and microphone?
Yes. A 4K ModCam+ camera with a 120-degree field of view is included. An 8-microphone array with an 8 m pick-up distance and echo cancellation sits in the upper front of the display.
