NewlineInteractive Flat PanelsSKU 98" Q Pro

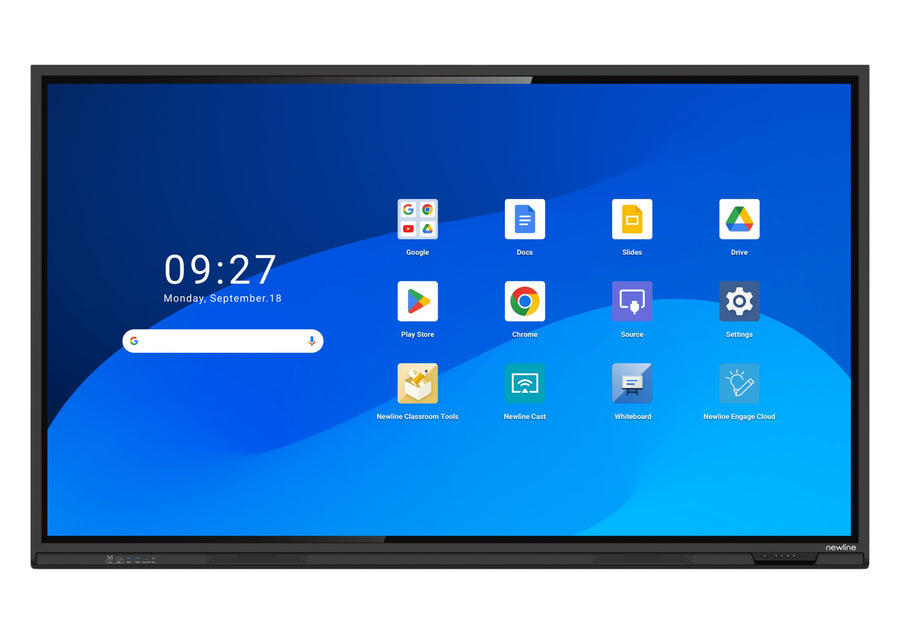

Newline Q Pro 98-inch 4K Interactive Flat Panel – TT-9823QA
The Newline Q Pro 98-inch (TT-9823QA) is a 4K interactive flat panel with Google EDLA certification for large classrooms, lecture halls and meeting rooms. It runs Android 14 with 8 GB RAM and 64 GB storage, and has infrared touch with response under 4 ms. Procure.ae supplies the Q Pro 98-inch in the UAE.
The 98-inch panel has a display area of 2158 x 1214 mm, 3840 x 2160 resolution, 1.07 billion colours and 400 cd/m² brightness. Its DLED backlight sits behind anti-glare, anti-fingerprint and antimicrobial tempered glass with about 88% transparency and 8H hardness. Infrared touch offers 20 touch points on Android and 40 on Windows, with response under 4 ms. An octa-core processor runs Android 14, and Wi-Fi 6 with Bluetooth 5.2 is built in.
The Q Pro 98-inch suits large classrooms, lecture halls and meeting rooms that need a single big display. It mounts on a wall or a mobile stand, has a net weight of 108 kg, and measures 2258 x 1345 x 104 mm without the wall-mount bracket. The front has USB-C with 65 W power delivery, two USB 3.0 ports and a mic-in port. The rear adds DisplayPort, HDMI Out, RS232, RJ45 LAN, SPDIF, an OPS slot and a Wi-Fi module slot.
Screen Size
98 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
400 nits
Touch Technology
Infrared
- Google EDLA certified
- 4K UHD on 98 inches
- Infrared touch
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Google EDLA certified
Android 14 with access to Google Play and Google Workspace apps.
02
4K UHD on 98 inches
3840 x 2160 resolution at 400 cd/m² brightness.
03
Infrared touch
20 touch points on Android and 40 on Windows, with response under 4 ms.
04
Tempered anti-glare glass
anti-glare, anti-fingerprint and antimicrobial glass with 8H hardness.
05
Android 14 processing
octa-core processor with 8 GB RAM and 64 GB storage.
06
Wi-Fi 6 and Bluetooth 5.2
built-in wireless connectivity.
07
65 W USB-C power
front port with 65 W power delivery alongside HDMI and touch ports.
08
OPS slot
accepts an on-board computer module.
Specifications
33 specificationsGeneral
Key FeaturesGoogle EDLA certification, Android 14, 4K UHD, 20/40-point touch, DLED backlight, Wi-Fi 6, OPS slot, 65 W USB-C PD
Model98" Q Pro
TypeInteractive Flat Panel
Display
BacklightDLED
Brightness400 nits
Color Depth1.07 billion colours
Resolution3840 x 2160 (4K UHD)
Response Time8 ms (typ.)
Screen Size98 inch
Touch Points20 (Android) / 40 (Windows)
Touch Response Time<4 ms
Touch TechnologyInfrared
Viewing Angle178°
Performance
Operating SystemAndroid 14
ProcessorOcta-core ARM Cortex-A73 x4 + A53 x4
RAM8 GB
Storage64 GB
Storage Conditions-20 to 60 °C; 0% to 90% RH (non-condensing)
Audio
Speaker ConfigurationBottom-front, 2 speakers
Speaker Output20 W x 2 (max)
Connectivity
BluetoothBluetooth 5.2
OPS Slot1 OPS slot
PortsHDMI In × 3, USB Type-B touch × 4, USB Type-A × 5, USB-C × 2, DisplayPort × 1, HDMI Out × 1, RS232 × 1, RJ45 LAN in/out × 1
USB-C Ports2 (front 65 W PD, rear without PD)
Wi-FiWi-Fi 6
Power
Standby Power<0.5 W
Physical
Dimensions2258 x 1345 x 104 mm
MountingWall-mounted or mobile stand
Operating Humidity20% to 80% RH (non-condensing)
Operating Temperature0 to 40 °C
Surface ProtectionAnti-glare, anti-fingerprint, antimicrobial tempered glass, 8H
Weight108 kg
Compliance
CertificationsGoogle EDLA certified
Downloads
Manufacturer documents for the Newline Q Pro 98-inch 4K Interactive Flat Panel – TT-9823QA — datasheets, manuals, drawings and certificates.
- Brochure – Q Pro Series – Q-Pro-Flyer EDLA-20260320-compressesd
- Brochure – Q Pro Series – Q-Pro-Flyer EDLA-Ver
- User manual – Q Pro Series
- Quick start guide – Q Pro Series
- Drawing – Q Pro Series – Q-Pro-55-Dimensional-Drawings
- Drawing – Q Pro Series – Q-Pro-65-Dimensional-Drawings
- Drawing – Q Pro Series – Q-Pro-75-Dimensional-Drawings
- Drawing – Q Pro Series – Q-Pro-86-Dimensional-Drawings
- Drawing – Q Pro Series – Q-Pro-98-Dimensional-Drawings
- Q-Pro-Series-Cheat-Sheet
Questions
Can’t find your answer? Ask on WhatsApp
Does the Q Pro 98-inch run Android?
Yes. The Q Pro series runs Android 14 with Google EDLA certification, which gives access to Google Play apps and Google Workspace apps on the panel. The 98-inch model has 8 GB RAM and 64 GB storage.
Does the 98-inch support Windows touch?
Yes. The panel supports 40 touch points when used with Windows and 20 touch points on Android. The three rear USB Type-B touch ports connect a PC for touch input, and the OPS slot accepts an on-board computer.
Can the 98-inch be wall-mounted?
Yes. The manufacturer lists wall-mounted or mobile stand installation for the Q Pro series. The 98-inch model has a net weight of 108 kg, so confirm that the bracket and wall structure can carry that load. Procure.ae can arrange installation across the UAE.
What are the outside dimensions of the 98-inch?
The 98-inch model measures 2258 x 1345 x 104 mm without the wall-mount bracket, with a display area of 2158 x 1214 mm. Use these figures to check the space in your room and the clearance needed for a wall bracket or mobile stand.
Does it have a camera?
A camera module is optional for the Q Pro series. The module has an 8 MP sensor with 4K at 30 Hz and a 120-degree field of view, and it is not part of the standard panel. The front has a microphone input.
